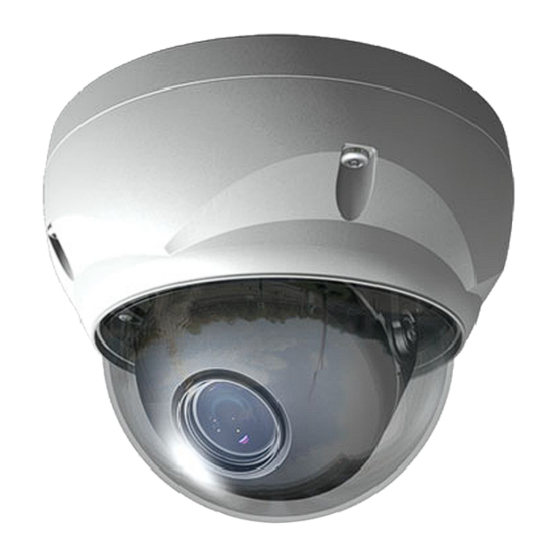

- Page 1 NXD-1502M Full HD NETWORK CAMERA Please read this manual thoroughly before use and keep it handy for future reference.
- Page 2 NXD-1502M, Quick Installation Guide 1. Description This manual applies to the NXD-1502M network camera. The Network Camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Camera at once or a single user can monitor various network cameras at the same time.
-
Page 3: Installation
NXD-1502M, Quick Installation Guide 2. Installation For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer. -
Page 4: Network Connection And Ip Assignment
NXD-1502M, Quick Installation Guide 2.2 Connection • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub. - Page 5 NXD-1502M, Quick Installation Guide Select the camera on the list and click right button of the mouse. You can see the pop-up menu as below. Select Assign IP. You cam see a Assign IP window. Enter the required IP address.
-
Page 6: Operation
NXD-1502M, Quick Installation Guide 3. Operation The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. 3.1 Access from a browser Start a browser (Internet Explorer). -
Page 7: Setting The Admin Password Over A Secure Connection
NXD-1502M, Quick Installation Guide 3.3 Setting the admin password over a secure connection To gain access to the product, the password for the default administrator user must be set. This is done in the “Admin Password” dialog, which is displayed when the network... - Page 8 NXD-1502M, Quick Installation Guide Control toolbar The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the start and stop. The Start button connects to the network camera or start playing a video stream.
-
Page 9: Network Camera Setup
NXD-1502M, Quick Installation Guide 3.5 Network Camera Setup This section describes how to configure the network camera, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration. - Page 12 Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 • 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 • Fax +49 (0) 6074 / 888-100 www.videor.com...
