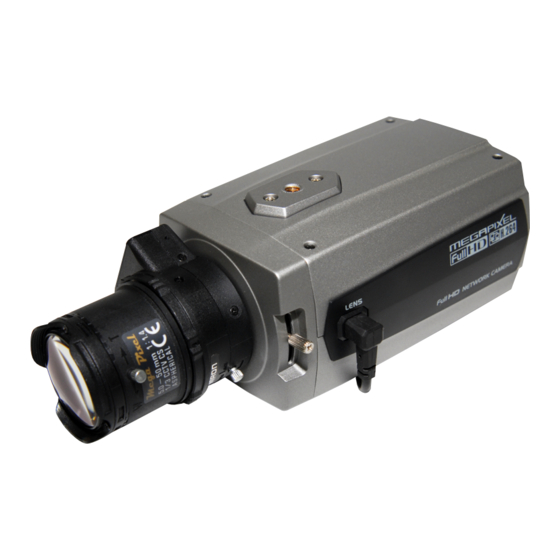

- Page 1 NXC-1502M Full HD NETWORK CAMERA Please read this manual thoroughly before use and keep it handy for future reference.
- Page 2 NXC-1502M, Quick Installation Guide 1. Description This manual applies to the NXC-1502M network camera. The Network Camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Camera at once or a single user can monitor various network cameras at the same time.
- Page 3 NXC-1502M, Quick Installation Guide • Front View Function Focus adjusting fixing screw Auto IRIS lens connector • Rear View Function Description Power Adaptor Terminal Main Power, 2pin terminal, DC12V/AC24V 330mA(4.0W) Indicates power input. Power Indicator(Green) Indicates camera status. Status Indicator(Red)
-
Page 4: Installation
NXC-1502M, Quick Installation Guide • LED Indicators Color Indication Steady for connection to a 100 Mbit/s network. Flashes for Green network activity. Steady for connection to 10 Mbit/s network. Flashes for Network Amber network activity. Unlit No network connection. Steady red for failed upgrade or booting. -
Page 5: Network Connection And Ip Assignment
NXC-1502M, Quick Installation Guide 2.2 Network Connection and IP assignment The Network Camera supports the operation through the network. When a camera is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager”... -
Page 6: Operation
NXC-1502M, Quick Installation Guide 3. Operation The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. 3.1 Access from a browser Start a browser (Internet Explorer). -
Page 7: Setting The Admin Password Over A Secure Connection
NXC-1502M, Quick Installation Guide 3.3 Setting the admin password over a secure connection To gain access to the product, the password for the default administrator user must be set. This is done in the “Admin Password” dialog, which is displayed when the network... - Page 8 NXC-1502M, Quick Installation Guide Control toolbar The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the start and stop. The Start button connects to the network camera or start playing a video stream.
-
Page 9: Network Camera Setup
NXC-1502M, Quick Installation Guide 3.5 Network Camera Setup This section describes how to configure the network camera, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration. - Page 12 Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 • 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 • Fax +49 (0) 6074 / 888-100 www.videor.com...
