PLASMA DISPLAY STATIC MOUNT
(4) PSM-2042 Static Wall Mount for 42" NEC
PSM-2042 (each)
(1) Plasma Static Mount
(1) Latching Flag
(8) Mounting Buttons-Yellow
(1) Nylon Washer
PAC-126 (each)
(2) Lateral Shift Extrusion
(4) Washer, 5/16
(4) Lock Washer, 5/16
(4) Threaded Stud, 5/16-18
CAUTION!
PLASMA DISPLAYS ARE EXTREMELY FRAGILE.
WARNING!
1. Attach latching flag to PSM (see Figure 2) and tighten the nut and screw until friction will hold the flag
in place.
2. Attach mounting buttons to display using one Phillips head screw per mounting button (see Figure 3).
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email:
INSTALLATION INSTRUCTIONS
PSMH-2046

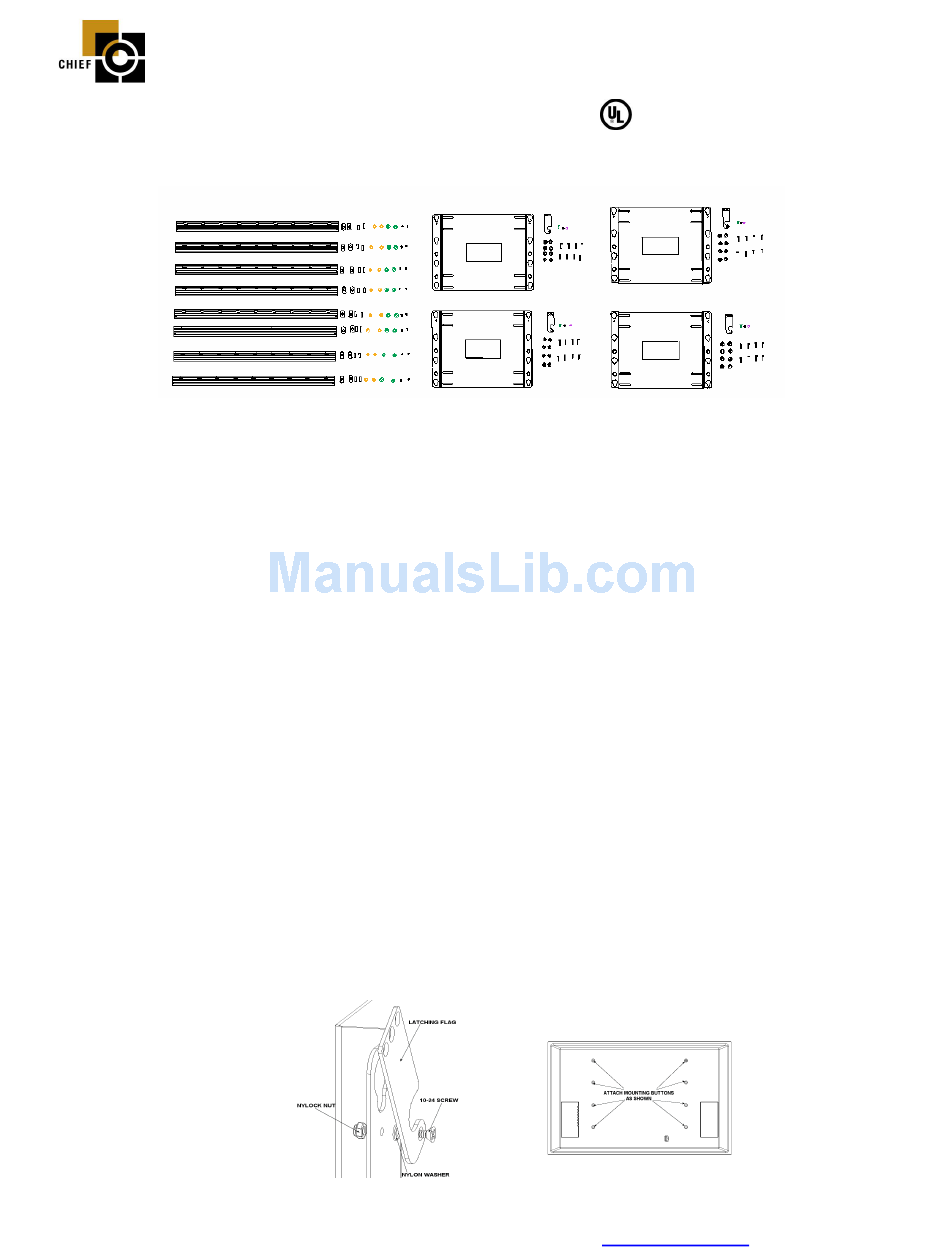

Figure 1
BEFORE PROCEEDING:
in Figure 1. If you are missing any of the listed components, please contact
Customer Service at 1-800/582-6480. Disregard individual installation
instructions in PSM-2042s and PAC-126s. Follow this instruction manual for
installation of PSM-2046 for your NEC 84" screen array.
Your mounting structure must be capable of supporting 4
times the weight of the plasma and the mount.
For each of your NEC 42" Plasma Displays.
Figure 2
(4) PAC-126 36" Lateral Shift Accessory
(1) 10-24 x .5 FH Undercut Screw
(1) 10-24 Nylock Nut
(8) M4 x 25mm Phillips Head Cap Screws
(4) Hex Nut, 5/16-18
(4) T-slot Nut, 5/16-18
(4) Panhead Screw, self tapping #8 x .25
Unpack each carton; verify contents shown
Figure 3
chief@chiefmfg.com
PN: 8805-000020 Rev. B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF PSMH-2046
Summary of Contents for CHIEF PSMH-2046
- Page 1 1. Attach latching flag to PSM (see Figure 2) and tighten the nut and screw until friction will hold the flag in place. 2. Attach mounting buttons to display using one Phillips head screw per mounting button (see Figure 3). Figure 3 Figure 2 CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com PN: 8805-000020 Rev. B...
- Page 2 Installing Lateral Shift Extrusions on Wall 1. Install the top two lateral shift extrusions to the wall; drill about 3” below the level you would like the top of the screen to sit, making sure both are level and allow a T-slot Nut to slide freely between each extrusion (see Figure 4).
- Page 3 5. Install PSM-2042 brackets using regular and lock washers as well as 5/16-18 nuts, making sure to not over tighten the nuts since you will want to slide the screens together to form the 84” array (see Figure 9 & Figure 10). Figure 9 Figure 10 6.
