FUSE LOCATION

DASHBOARD
The vehicle fuses are grouped in three control units lo-
AND CONTROLS
cated on the dashboard, passenger compartment right pil-
lar and engine compartment.

Fuse box on the dashboard

SAFETY

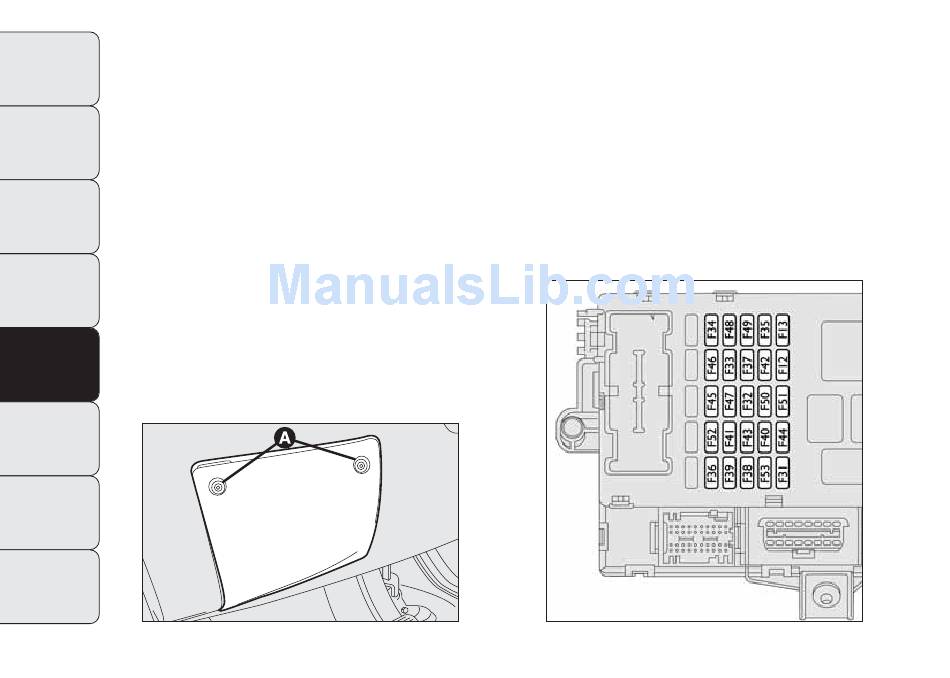

To gain access to the fuse box fig. 200 on the dashboard,
loosen the fastening screws A-fig. 199 and remove the cov-
er.
STARTING
AND DRIVING

Engine compartment control unit

To gain access to the fuse box, fig. 202, remove the pro-
WARNING LIGHTS
tective cover fig. 201.
AND MESSAGES
IN AN EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
fig. 199
190

Right central pillar optional control unit

(for versions/markets, where provided)
To gain access to the fuse box fig. 204, remove the pro-
tective cover fig. 203.
F0N0095m
fig. 200
F0N0096m
