D U C A T O
MULTIMEDIA SYSTEM USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ducato and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fiat Ducato

Summary of Contents for Fiat Ducato

  • Page 1 D U C A T O MULTIMEDIA SYSTEM USER MANUAL...
  • Page 2 TIPS, CONTROLS AND GENERAL INFORMATION ROAD SAFETY Learn how to use the various system functions before setting off. Read the instructions for the system carefully before setting off. WARNING If the volume is too loud this can be dangerous. Adjust the volume so that can still hear background noises.
  • Page 3 For all sources (USB, iPod and Bluetooth ®), the system can also play the following Playlist formats: ➢ .M3U ➢ .PLS ➢ .WPL For USB sources the system can play videos with the following extensions and formats: ➢ .MP4; ➢ .DAT; ➢...

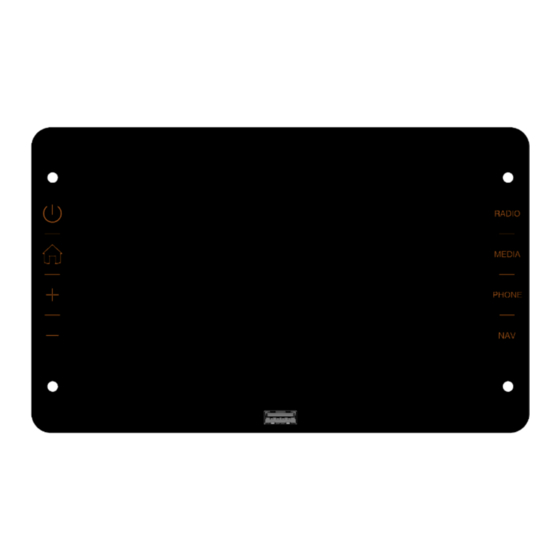

  • Page 4 CONTROLS ON FRONT PANEL NAVIGATION MODEL STANDARD MODEL Button Function Description . Press the button to turn on the device, turn off the screen. Press button again and light up the screen Turns the radio off/on Enter radio source / Select radio band (FM-AM-DAB-FM) Radio RADIO Enter/Select USB/iPod/BT media Sources.

  • Page 5: Steering Wheel Controls

    STEERING WHEEL CONTROLS Button Function Description Press the button for the activation/deactivation of the volume. To cut off the device microphone during BT (Bluetooth) call, press the key to activate mute function. This allows to hear the interlocutor but not being Mute Button heard from it.

  • Page 6: Radio Mode

    Turning on/off the radio Press button briefly to turn on the device, press again to turn off. When key OFF, it needs to wait for 30min before entering sleep. RADIO MODE Press the Radio button on the touchscreen, bottom right corner or Radio icon in the Home page, to enter the Radio Menu.
  • Page 7 At the bottom: the following buttons are displayed: ➢ "FM/AM/DAB”: selection of the desired frequency band (button reconfigurable according to the band selected: FM,AM,DAB); ➢ "Stations": list of the radio stations available; ➢ "Info": additional information on the source being listened to; ➢...
  • Page 8 Fast searching of next/previous radio broadcastion Keep press on buttons to start fast searching. When you leave pressing on button, audio will find first listenable broadcasting FM broadcasting list To see all FM stations list, need to press button. Presetting a Station (Preselection) Pre-selections are activated by touching one of the preselection buttons located at the top of the display.

  • Page 9: Media Mode

    All stations Press “all stations”, and you can see all the DAB broadcasts. Genres Press “Genres”, you can choose various types of local DAB radio, such as weather, finance, children, religion, etc. Ensembles Press “Ensembles”, you can choose various types of local DAB ensembles MEDIA MODE Press “MEDIA”...
  • Page 10 WARNING When connecting a device (USB or iPod) to the USB port, make sure that the handbrake lever is not obstructed. If the mobile phone supports Bluetooth connection, the audio files stored on the mobile phone can be listened via the radio in the car. Seek Previous/Next Press button to play the next selection.
  • Page 11 Song Information Press “Info” button to display the information of the current track. Press “CLOSE” button to back to the previous screen. Shuffle Press button to play the tracks in a random order. Press again to de-activate this function. Shuffle function can be available if the USB or Bluetooth device supports this function. Repeat Song Press button to cycle between Repeat One, Repeat All and Repeat OFF in loop.
  • Page 12 PHONE MODE Activating Phone Mode Press “PHONE” button to activate phone mode. Key Features: ➢ Dialing the number of the person wanted to be called. ➢ Contacts on the phone book of the cell phone can be monitored and called. ➢...
  • Page 13 The instructions below shall be followed for registering procedure: ➢ Make sure Apple CarPlay/Android Auto is not active ➢ Activate Bluetooth function of the mobile phone ➢ Press “PHONE” button of the radio in front panel in Home Page ➢ Press Button if any cell phone device is not registered previously yet ➢...
  • Page 14 WARNING Bluetooth Connection Functions and sound quality may vary and depends on Mobile Phone Brand. Supported mobile phones list is given at web http://www.fiatnavigation.com Transmission of the Phone Data (Phonebook and Recent Calls) If your mobile phone has a function for sending the phonebook via Bluetooth® technology. During the pairing procedure a pop-up screen will appear with the following request.
  • Page 15 ➢ To be sure if the Bluetooth function is in ON status on the mobile phone ➢ Press the “Phone” button on the touchscreen, then the “Phones” button on the touchscreen. ➢ Press to select the particular Phone or the particular Audio Device in “Paired Devices List” screen.
  • Page 16 PHONE CALL FEATURES The following features can be accessed through the Multimedia system if the feature(s) are available and supported by Bluetooth on your mobile service plan. For example, if your mobile service plan provides three-way calling, this feature can be accessed through the Multimedia system. Check with your mobile service provider for the features that you have.
  • Page 17 Dialing the phone number using the mobile phone It is possible to dial a phone number with the mobile phone and continue using the system (never allow yourself to be distracted while driving). When a phone number is dialed with the keyboard of the mobile phone, the audio of the call is played over your car's sound system.
  • Page 18 Press the “Ignore” button to ignore the incoming call, the incoming call still exist in the background, if user press PHONE button of the front panel, the incoming call screen will appear again. Answering an incoming call during an active conversation To answer an incoming call while another phone conversation is in progress, press the “Accept”...
  • Page 19 Making a second Phone Call When a phone conversation is active, a second phone call can be made as 3 different ways on the same menu as follows: Press “Add Call” button and Keypad screen is open; ➢ Dial the number using the numbered buttons and press “Call” button; ➢...
  • Page 20 Managing two Phone Calls If two calls are in progress (one active and one on hold), it is possible to switch between them pressing the "Switch”" button or to merge the two calls in a conference pressing the "Join" button. Note Check whether the telephone in use supports the management of a second call and the "Conference"...
  • Page 21 Activation/Deactivation of the Microphone During a call the microphone can be deactivated pressing the “Mute” button on the touchscreen (or on the steering wheel controls). When the microphone is deactivated it is still possible to listen to the call in progress. To reactivate the microphone, press the corresponding button again. Transferring a Call The ongoing calls can be transferred from the mobile phone to the system and vice versa without ending the calls.
  • Page 22 Android Auto APP Setup Before use, download the Android Auto application to your smartphone from Google Play Store. The application is compatible with Android 5.0 (Lollipop) and later versions. To use Android Auto, the smartphone must be connected to the car with a USB cable. On the first connection, you will have to perform the setup procedure that appears on the smartphone.
  • Page 23 To return to the system contents with the Android Auto app enabled, select the last item on the Android Auto system bar and select “Back to Fiat". To end the Apple CarPlay or Android Auto session, physically disconnect the smartphone from the car's USB port.
  • Page 24 Navigation APP Setup (if available) With the navigation applications, the driver can use the navigation system for planning and navigation. Please use navigation user manual to use this application in further detail.
  • Page 25 RVC (if available) Put in reverse (R) and your display will automatically show the rear of your car. RVC will be shown when the radio is off.
  • Page 26 Settings Press button to enter the Settings menu. The menu includes the following items: Audio Audio related settings are located under this function. (Loudness, Equalizer, Balance & Fader, Speed Volume Control, Ringtone & Phone volume control) Touch Sound Press the relevant button to activate/deactivate the acoustic signal when the buttons on the display are pressed.
  • Page 27 Equalizer Select "Equalizer" on the display to adjust the bass, middle and treble tones. Use the "+" or "–" buttons to carry out the settings desired. Tapping on the bass middle or treble bar also is possible to change the value.
  • Page 28 Volume Press the “Volume” button to enter into the volume setting interface. Adjust the volume of multimedia (music, video and radio), phone, ringtone and speech. These settings are default volume levels. Every time, user turn on the audio, audio starts by these default values. Speed Volume Control "Off"...
  • Page 29 Radio Alternative Frequency and Traffic Announcement functions can be activate/deactivate under Radio setting. AF Setting Press the “AF Setting” button to activation/deactivation of the automatic tuning of the strongest signal for the station selected TA Setting Press the “TA Setting” button to activation/deactivation of the automatic tuning of the traffic announcements...
  • Page 30 DAB Announcements Press the "DAB notification" button to select different announcement types, such as news flash, weather flash, sports report, etc. Regional Press the “TA Setting” button to activation/deactivation, you can force regional service following. Language Set the language by selecting any possible language from the list. General Luminance, AutoPlay, Power Off Delay ,Rear View Camera functions can be activate/deactivate under General setting menu.
  • Page 31 User Manual Scan the QR code with a mobile device allows accessing the website from the mobile device. https://fiatnavigation.com The navigator, if available, can be updated in this site. Manual Activation Press “Manual Activation” to manually activate the reverse camera Delay When you press Delay, you choose 10 seconds to Delay your car.
  • Page 32 Restore Settings Reset the radio to the factory settings will erase all the settings defined by the user previously. Confirm to reset the device to the factory settings. Wait for a short time for the factory settings to be restored. Notes: ➢...
  • Page 33 С настоящото Daiichi Elektronik San. ve Tic. A.S. декларира, че този тип Aš, Daiichi Elektronik San. ve Tic. A.S., patvirtinu, kad radijo įrenginių tipas D715AF български Liettuviy радиосъоръжение D715AF е в съотв етств ие с Директив а 2014/53/ЕС. atitinka Direktyvą 2014/53/ES. [Bulgarian] [Lithuanian] Цялостният...
