(5) Detaching and refitting the middle transfer drive unit

Procedure
1. Remove the intermediate transfer unit
(see page 1-5-21).
2. Remove the top cover (see page 1-5-3).
3. Remove the left rear cover and left
cover (see page 1-5-8).
4. Remove the fuser pressure drive unit
(see page 1-5-39).

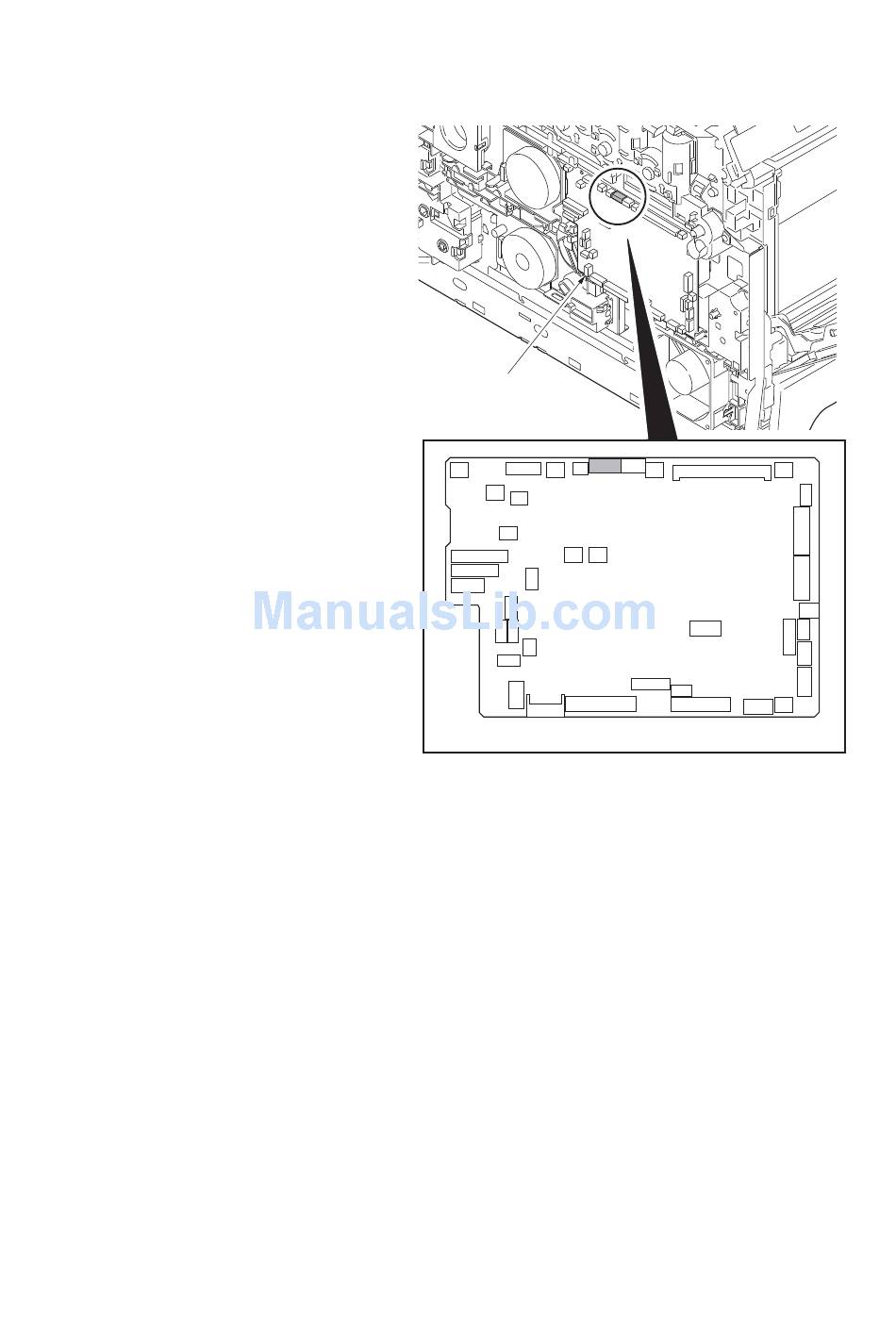

5. Remove connector (YC15) from engine
PWB.
Engine PWB
YC15
Engine PWB
Figure 1-5-61
