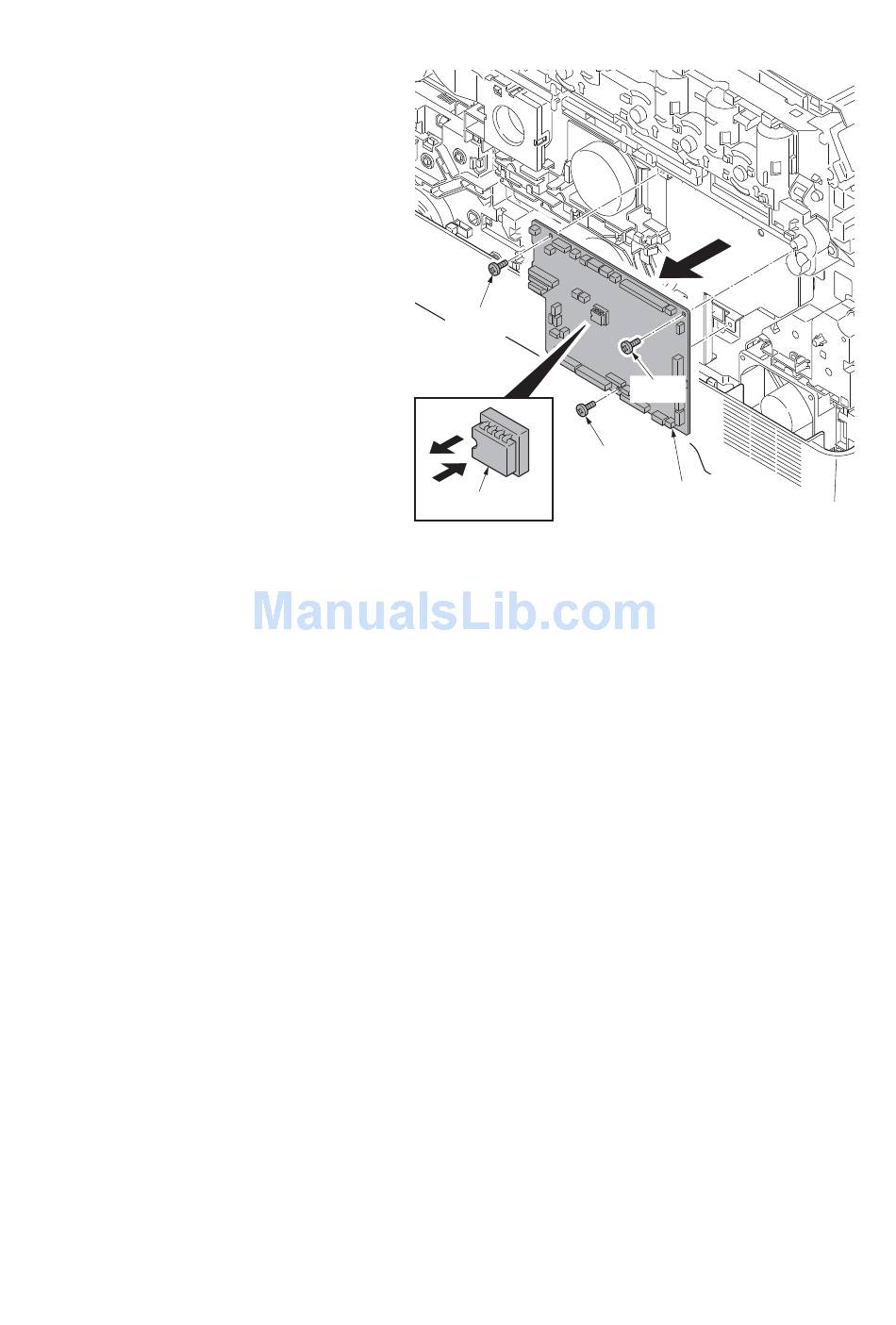

4. Remove three screws and then remove
the engine PWB.
5. Check or replace the engine PWB and
refit all the removed parts.
*: To replace the engine PWB, remove the
EEPROM (U1) from the old engine PWB
and mount it to the new engine PWB.
Screw
Screw
EEPROM (U1)
Figure 1-5-38
1-5-27
2KT/2KV
Screw
Engine PWB
