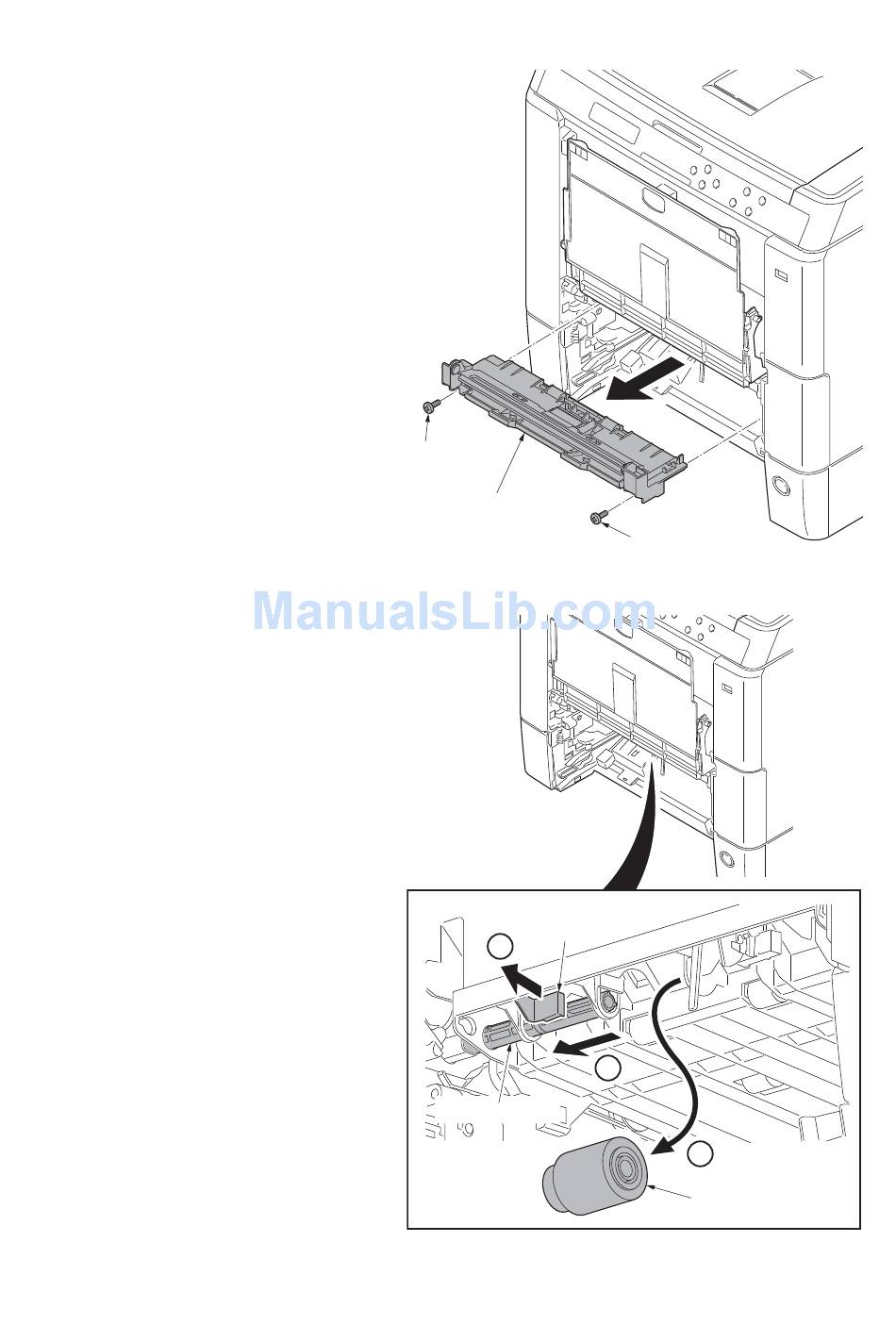

4. Remove two screws and then remove
the MP paper feed lower unit.
5. Pull the hook forward and then slide the
MP feed shaft.
6. Remove the MP paper feed roller.
7. Check or replace the Mp paper feed
roller and refit all the removed parts.
Screw
MP paper feed
lower unit
Hook
1
MP feed shaft
1-5-17
Screw
Figure 1-5-24
2
3
MP paper
feed roller
Figure 1-5-25
2KT/2KV
