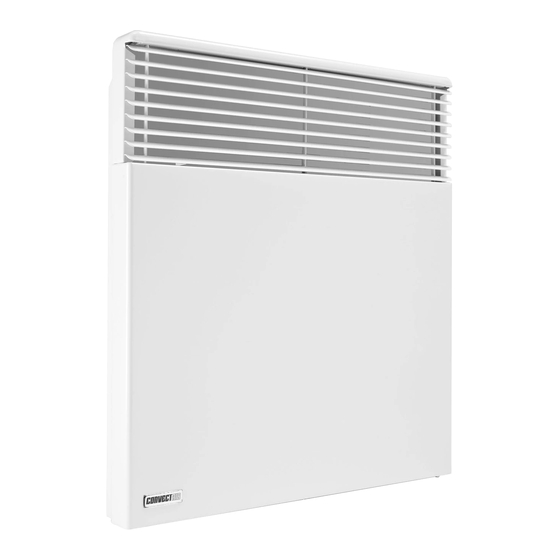

CONVECTAIR 7359 - C05 Installation And Operation Instructions Manual
  1. Manuals
  2. Brands
  3. CONVECTAIR Manuals
  4. Heater
  5. 7359 - C05
  6. Installation and operation instructions manual

CONVECTAIR 7359 - C05 Installation And Operation Instructions Manual

Apero series
Hide thumbs

Advertisement

Table of Contents

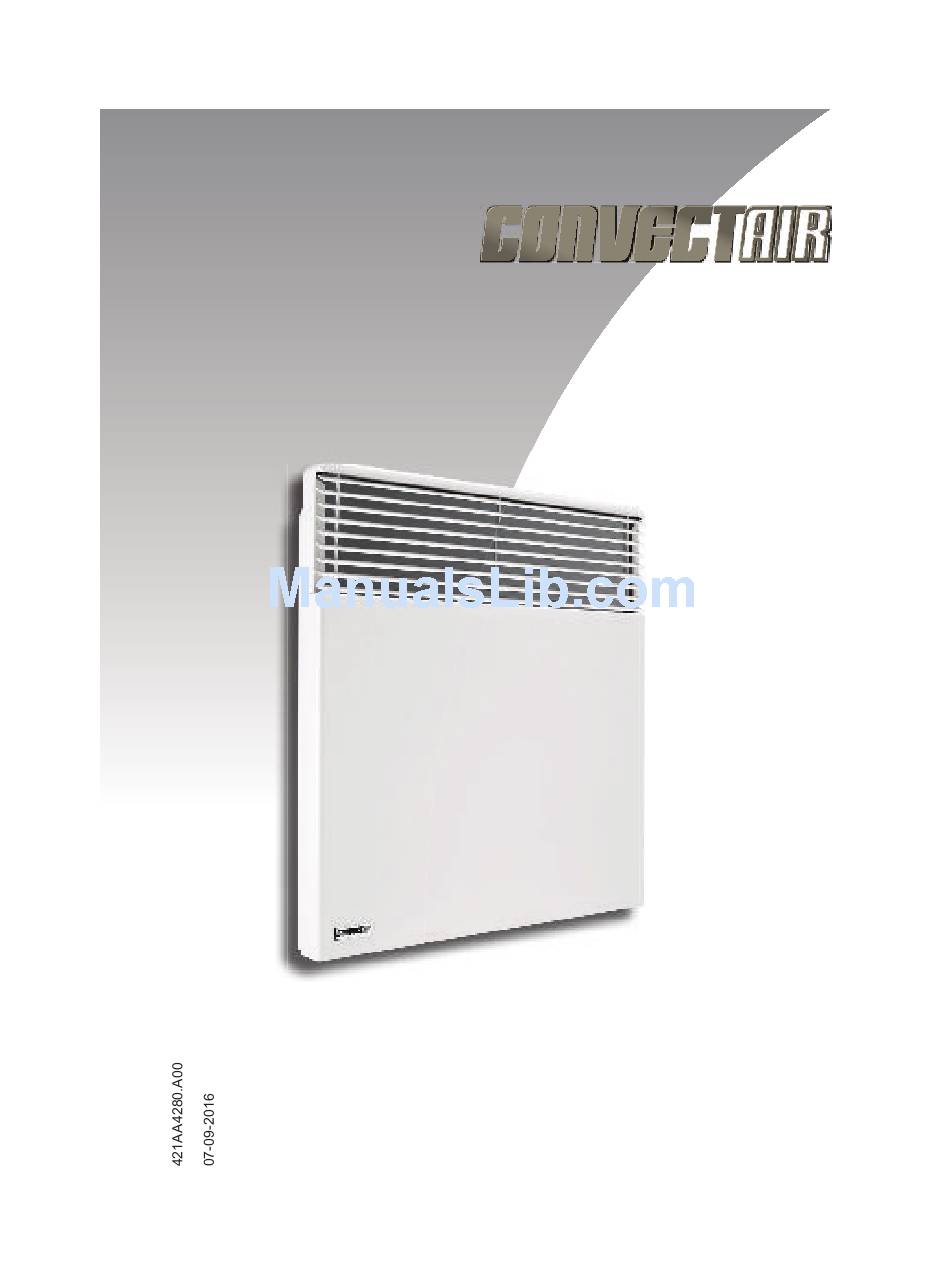

APÉRO
7359
Installation &

Operating Instructions

(IMPORTANT: To be read and kept by the user)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7359 - C05 and is the answer not in the manual?

Questions and answers

Related Manuals for CONVECTAIR 7359 - C05

Summary of Contents for CONVECTAIR 7359 - C05

  • Page 1: Operating Instructions

    APÉRO 7359 Installation & Operating Instructions (IMPORTANT: To be read and kept by the user)

  • Page 2: Table Of Contents

     FOREWORD  Dear owner, Congratulations on the purchase of this premium electric heater. CONVECTAIR develops and produces the highest quality heating product in the electrical industry. To obtain the best results and the ultimate in performance and comfort, please take a moment to read the installation, operation and maintenance instructions detailed in this manual.

  • Page 3: Quick Start Guide

    To change the temperature : Using the "+" and "–" (A) keys, you can raise or lower the temperature setting to reach the desired level of comfort (see page 7). Troubleshooting : See page 12. To contact CONVECTAIR : See page 12.

  • Page 4: 1- Specifications

    - Your new APÉRO is a convection heater designed to heat your room quietly with consistant heat, it is a perfect heater for living spaces, kitchens or other rooms. - Your APÉRO is compatible with the CONVECTAIR Programmer Module (must be connected through the pilot-wire to another Convectair heater equipped with the Programmer module) allowing scheduled temperature set-backs in periods of prolonged absence providing the same comfort and more savings.

  • Page 5: 3- Installation And Mounting

    2000 (6 1/8'') Fig. 3B To install the heater at 10 cm (4 in) from the oor ( recommended height by CONVECTAIR) follow these steps: 1- Free mounting brackets by pressing and pulling both locking brackets on the back of the heater (no. 1 Fig. 3A & 3B).

  • Page 6: 4- Electrical Connection

    - Never connect the pilot-wire (purple wire) to the electrical supply nor ground it. - The purple wire with the seal at the extremity should not be used for the electrical connection. It is used only if the heater is connected with the CONVECTAIR Programmer system or the wall mount controller AWC.

  • Page 7: 5- Operating Instructions

    OPERATING INSTRUCTIONS Your CONVECTAIR heater operates in short cycles of heating and standby. The red indicator light tells you when the heater is on. The heater will always remain warm and ambient temperature will remain constant. It is normal in very cold temperatures for the heater to become hotter.
  • Page 8 - Turning the thermostat ON or STANDBY To start the heater press the ''MODE'' key. The display will show the current thermostat comfort temperature setting, (for example 19°C ( 66°F )). To place the heater on Standby (no heat), press the ''MODE'' key repeatedly until the display shows “--”.
  • Page 9 - Setback (Economy) Mode In the case of short-term absences (between 2 and 24 hours), it is recommended, for added energy savings to use this mode. When the heater is in EC Mode, it will maintain the temperature at around 3°C ( 5°F) lower than the comfort temperature . Press the ''MODE'' on the display indicating the economy mode is selected.
  • Page 10 For the heater to be reused independently, it must be reinitialized by pressing the ''MODE'' and ''-'' keys at the same time for ten (10) seconds. * For more information on the AWC, contact CONVECTAIR or visit our website: convectair.com.

  • Page 11: 6- Overheat Control

    ANY REPAIR ON YOUR CONVECTAIR HEATER SHOULD ONLY BE DONE BY A QUALIFIED TECHNICIAN, AND ONLY AFTER THE HEATER HAS BEEN DISCONNECTED. Recommendations and advice Your CONVECTAIR heater will become hot when in use. Caution is advised when young children are present. inner components. to the users.

  • Page 12: 8- Troubleshooting

    4- Remove any obstruction from the inlet/outlet louvers and reset the overheat control. 6478 or contact the nearest Service Center. Note: For an APÉRO connected to an AWC from CONVECTAIR, please refer to the AWC installation manual. IDENTIFICATION OF YOUR HEATER IMPORTANT : PRODUCT INFORMATION APPEARS ON THE HEATER’S IDENTIFICATION...
