CONVECTAIR Samba Installation And Operation Notice

CHARACTERISTICS

Your new Samba is a combined convection and fan-
forced heating unit. It is the perfect bathroom and
entryway heater thanks to its in-wall design. Samba
uses two elements: 1000 watts of silent convection
heat that maintains a constant temperature, and 1000
watts of fan-forced heat. Thanks to its electronic two-
stage integrated thermostat; it heats fast and
maintains the heat. Use it with a unit that is equipped
with an optional Convectair programmer (Pilot-wire
only) for maximum performance and efficiency.

PLANNING THE INSTALLATION

Caution: this unit must be connected to a 240 -
volt or 208 - volt ,60 Hz. CONVECTAIR
recommends that the Samba be installed by a
qualified electrician, in accordance with national
and local codes.
Note: If a programmer-equipped unit is intended to
control the Samba, a 3/12 or an FAS 105 2/18 may be
used in the cable installation that will allow the
connection of the control (purple) wire.

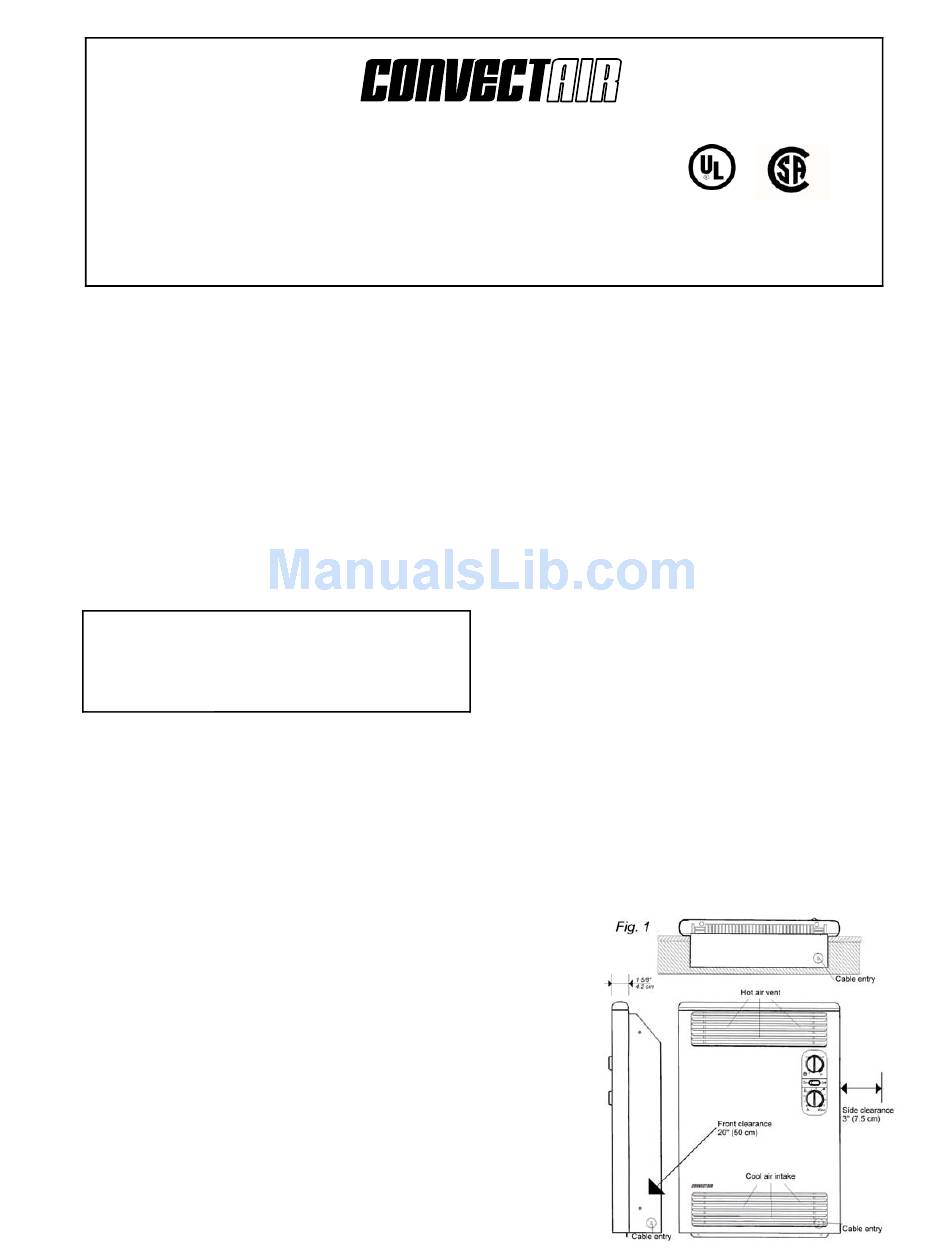

1. Determine the location where the Samba is
to be installed, ensure that there are no
restrictions to the minimum clearances
permitted (Fig. 1).
2. Ensure that there are no obstacles in the
proximity that may interfere with the air
circulation.
3. The electrical connection for the Samba must
be made in the Samba's junction box (Fig.1).

INSTALLATION

It is important to respect the clearances and
installation height for the Samba. The installation
height should be no less than 4" (10 cm) minimum
and side clearance is 3" (7.5 cm).
SAMBA
7835-C20-BB
Installation and operation notice
Read before operation / installing, DO NOT DISCARD
1. Cut an opening in the wall (between the wall
studs), in a rectangular form of 20 1/2" (52.5 cm)
in height and 13" (32.8 cm) wide, with a dept of
3" (7.5 cm). Make sure there is
clearance for the junction box wiring (Fig.2).
2.
Make sure that the wires coming out of the wall,
are in the proximity of Samba's junction box,
bottom right hand corner.
3. The Samba is assembled in three distinct parts
(Fig. 4) : The front cover (A), the control & heater
block (B) and the rear housing (Fig. 4).
4. Take unit apart (by removing two retainer screws
at the bottom), dismount the middle section by
removing the 4 retainer screws, insert the rear
housing in the wall opening made in previously.
5. Pass the wiring through the appropriate knock
out, (it is recommenced to use a strain relief
busing). Use drywall screws combined with "E-Z
anchors" fasteners to secure the rear cover box
to the dry wall or studs (Fig. 2).
6. Wire connection, see Electrical connections
section.
7. Insert the control & heater block section (B), in
the now installed rear cover box (C). Ensure
that it is secured properly to the backplate.
8. Cover the unit by installing the front cover (A)
that protects the interior of the Samba. Hang the
front cover from the rear cover box. Ensure that
it is properly aligned then secure the retainer
screws to the bottom lip of both font cover and
rear box.
sufficient
