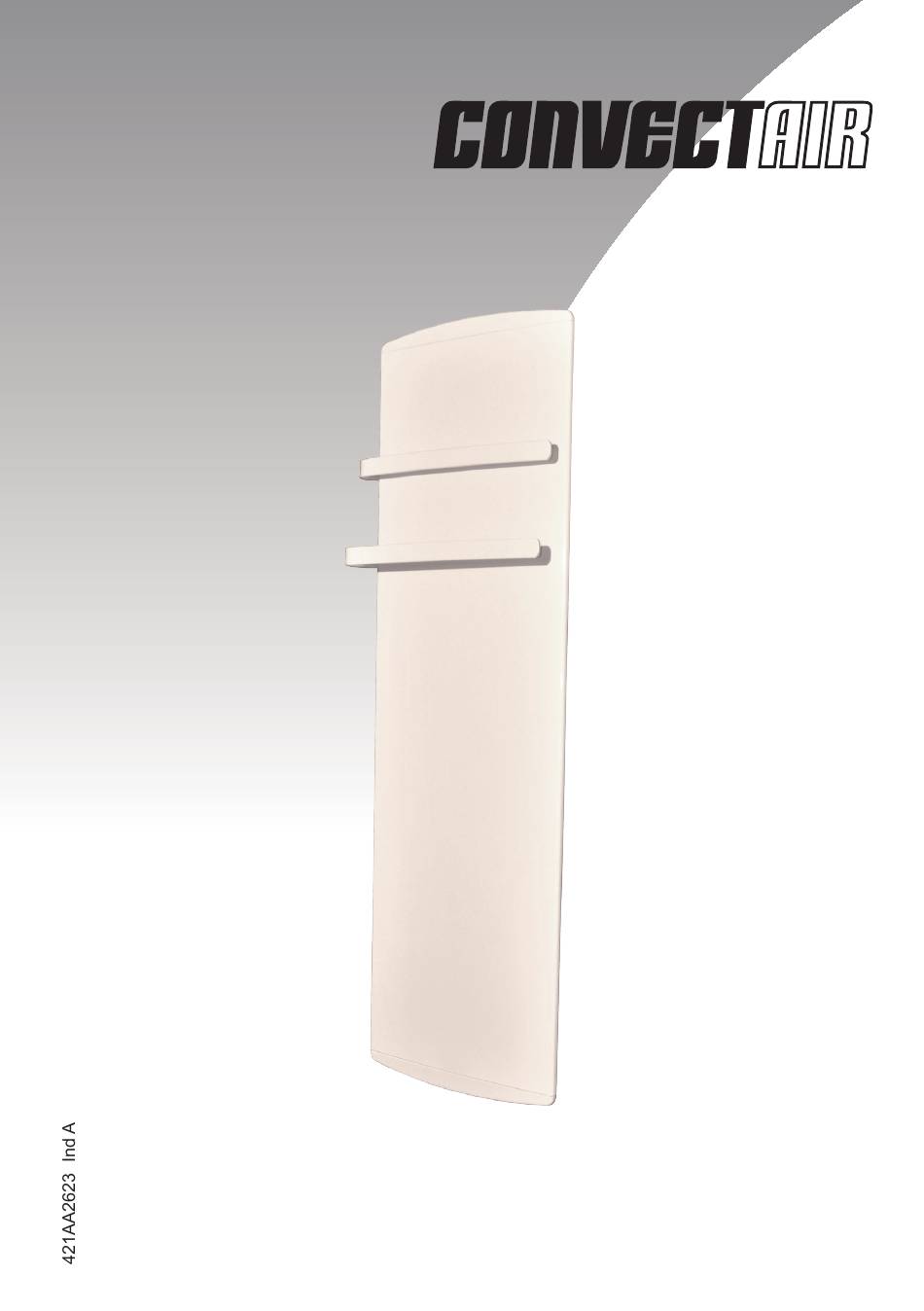

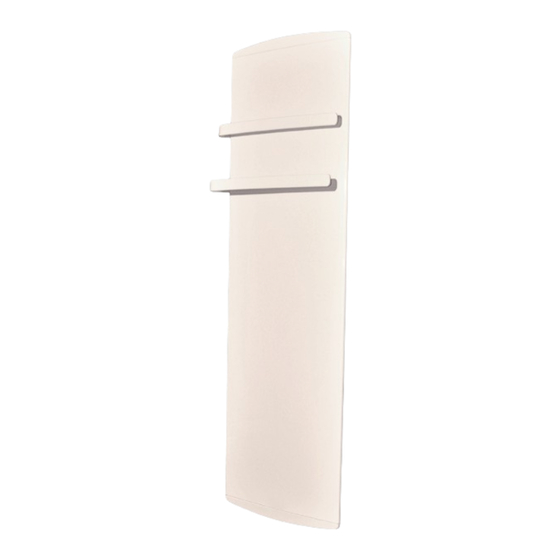

- Page 1 DIVA 7648 Installation & Operating Instruction ( IMPORTANT : To be read and kept by the user )
-
Page 3: Table Of Contents
- introduction - Dear owner, Congratulations on the purchase of this premium electric heater. CONVECTAIR develops and produces the highest quality heating product in the electrical industry. To obtain the best results and the ultimate in performance and comfort, please take a moment to read the installation, operation and maintenance instructions detailed in this manual. -
Page 4: Quick Start Guide
Turn the heater on. Press the Timer knob (D) to activate the Turbo mode.The heater will run full power (1750 w) for the duration set on the Timer knob (D). Troubleshooting : see page 12. To contact Convectair : see page 12. -
Page 5: 1- Specifications
- It has two heat stages: one 750 w thermostatically controlled and one 1750 w for fast heat, timed from 15 to 120 minutes and unregulated. - Your DIvA can be used with the optional CONveCTAIR Programmer Module (pilot wire) allowing scheduled temperature set-backs in periods of prolonged absence providing the same comfort and more savings. -
Page 6: 3- Electrical Connection
- Always connect the ground wire (green wire) with copper wire. - The purple wire of which the end is sealed, is not to be used for electrical connection. - This wire will be used if the device is connected to the CONveCTAIR central programming system. -
Page 7: 4- Installation And Mounting
installation and Mounting Rep.A Wall bracket installation: - Remove the wall bracket from the heater by pushing ithe 2 clipping tabs (Rep. A). - Place the wall bracket on the wall and mark the 4 mounting holes in " 7/16 accordance with the dimensions (1052,5 mm) shown in figure 2. -
Page 8: 5- Operating Instructions
operating instructions - TURNING THE HEATER ON - SETTING UP THE COmFORT TEmPERATURE Setting up the Comfort temperature: -Turn the thermostat knob (A) to the Comfort Zone position (Rep. ZC). Press the On / Off key (f) to turn the heater on, the power light (e) and the heat indicator (C) lights (unless the room temperature is above the selected set point temperature). - Page 9 NOTE 1: To turn off the heater, press the ON / Off key (f). The power indicator Rep. e is off. NOTE 2: Once the Comfort temperature has been set, DO NOT TOuCh the thermostat temperature knob (A), act only on the On / Off (f). when you need more heat (at the time of the shower, bath, ...) do not change your Comfort temperature setting, use the "TuRbO"...
- Page 10 This device is intended for drying towels. Do not introduce anything in the unit. The first time your CONVECTAIR heater is used, a light smoke could be re leased. This is normal and should disappear after about a few minutes.
-
Page 11: 6- Overheat Control
Never use this heater during construction work or other activities that generate a lot of dust. The first time your CONVECTAIR heats, a light smoke could be released. This is normal and should disappear after about 2 to 3 minutes. -
Page 12: 8- Troubleshooting
3- Activate the timer function. 4- If no heat is emitted, check the overheat protection (see section 6). 5- If the light is still off, and no heat is generated, call CONveCTAIR or the nearest CONVECTAIR service center. identification of your heater ImPORTANT : PRODUCT INFORmATION APPEARS ON THE HEATER’S IDENTIFICATION...
