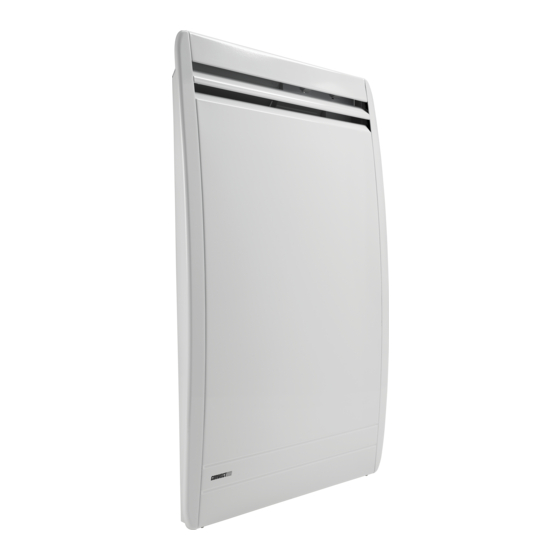

CONVECTAIR Allegro 26 7304 Installation & Operating Instructions Manual

Allegro heaters
Hide thumbs

Advertisement

Table of Contents

ALLegro
Operating Instructions
ATTENTION :
Allegro
7304
Installation &
Documents to be kept by the end-user
26
18
Allegro
Allegro
7303
14
7302

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Allegro 26 7304 and is the answer not in the manual?

Questions and answers

Kari Wilson
June 1, 2025

How do we manually reset?

0
Gary Oksness
March 2, 2025

Good morning. Are replacement thermostates for Allegro 26 7304 available?

0

Related Manuals for CONVECTAIR Allegro 26 7304

Summary of Contents for CONVECTAIR Allegro 26 7304

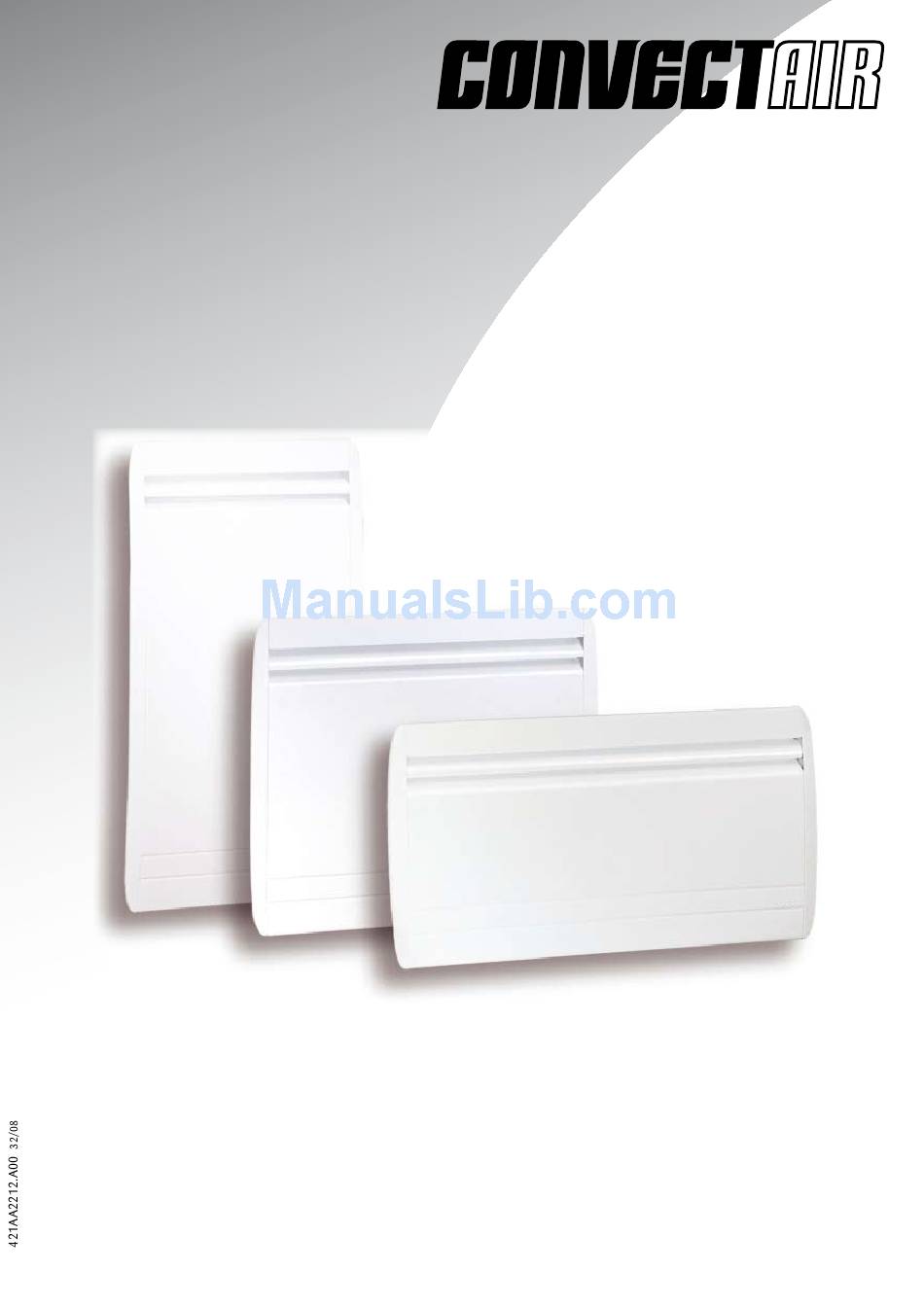

  • Page 1 ALLegro Allegro Allegro 7304 Allegro 7303 7302 Installation & Operating Instructions ATTENTION : Documents to be kept by the end-user...

  • Page 2: Table Of Contents

    INTRODUCTION : Dear owner, - Congratulations on the purchase of this premium electric heater from CONVECTAIR, manufacturer of the highest quality heating product in the electrical industry. - To obtain the best results and the ultimate in performance and comfort, please take a moment to read the installation and maintenance instructions shown in this manual.
  • Page 3 Changing mode : Press the (Comfort > Economy > Frost protection > Program > Comfort >... Mode p.14-15). Locking or unlocking the control panel : press together and hold for 3 seconds (p.15). Diagnostics : p.19. Contact CONVECTAIR : p.20.

  • Page 4: Specifications

    Side wire cover kits are available for situations where connecting wires need to be hidden from view. Call your CONVECTAIR electri- cian or dealer, and be sure to specify the model number.

  • Page 5: Installation

    INSTALLATION Plan ahead : - Determine the heater location, taking into account the required clearances (Fig.A.). - Ensure that the electrical wiring is accessible near the heater connection box : 6 in. (15 cm) off the floor, centered on the heater (see page 6 – Type A), and that a sufficient length is available for the connection.
  • Page 6 WItHout A WAll juNctIoN box Outside dimension Tighten screws in the order shown here WItH A WAll juNctIoN box Outside dimensions Tighten screws in the order shown here For installation over a wall junction box, remove the knock-out panels as shown.
  • Page 7 Figure E 7304 - Allegro Encombrement Overall de l’appareil dimension Overall Encombrement dimension de l’appareil Version 500 => 1000W 500 à 1000W 1250 => 2000W Autres (mm) Puissances 7304 - ALLEGRO 26 - Figure E Power (W) 1000 1250 1500 1750 2000 5,4’’...
  • Page 8 Figure G 7302 - Allegro Encombrement Overall de l’appareil Dimensions (mm) 7302 - ALLEGRO 14 - Figure G Power (W) 1000 1250 1500 1750 2000 5,5’’ 7’’ 9,8’’ 16’’ 16’’ 21,1’’ 21,1’’ Bracket 140mm 178mm 248mm 405mm 405mm 535mm 535mm 19,3’’...

  • Page 9: Electric Connection

    ELECTRIC CONNECTION CONVECTAIR recommends that this heater be installed in accordance with national and local codes. To prevent short circuits and electrical shocks turn the power off at the main panel before attempting the installation or any repairs. If the power cable is damaged it must be replaced by the manufacturer, an approved service depot or a technician with similar qualifications. CAUTION : This heater must be connected to a 240 Volt or 208 Volt (60 cycles) circuit. Dis- connect the power supply before making wiring connections to prevent electrical shock and equipment damage.
  • Page 10 CONNECTING THE HEATER - Connect the supply wire coming from the wall into the connection block inside the GoBox in the right sequence (see «Wiring Color coding, page 9). WItHout uSINg a wall wall junction junction box Fig. K Fig. L To install the Pilot Wire (PW), do not forget to detach the ton- gue on the bottom side of the...
  • Page 11 WItH the use of a pilot wire WItHout using a pilot wire (PW) (PW) CANADA U.S.A. CANADA U.S.A. goBox goBox goBox goBox PoWer LINe PoWer LINe PoWer LINe PoWer LINe B - Black r - red W - White C - Copper PW - pilote wire MOUNTING THE HEATER.

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS Operation During the heating season, the CONVECTAIR heater will remain warm and the ambient temperature will remain constant. It is normal in very cold temperatures for the unit to become hot. Caution is advised when young children are present.
  • Page 13 Turning the heater ON. Rep.1 Note : When the heater is first connected, it will be in the OFF position, with a blank display. To start, press briefly on the Heating ON/OFF key (rep 1) and the display shows the default comfort Mode set point : 19.0°C (66°F).
  • Page 14 Comfort mode (.19.0°C - 66.0°F,...). When the thermostat is in Comfort mode, the heater will maintain the set temperature (19.0°C 66.0°F) without responding to any Programmer instruction. Mode To change the set temperature, simply press the + or – keys to change the setting in steps of 0.5°. Exception to the Comfort mode : If the heater is connected to a Programming system, it will still respond to a Frost Protec- tion instruction.
  • Page 15 To change the ECo temperature : When the display is in Eco mode, you have the option of choosing a set temperature. The Eco temperature can be set at any value between the Frost Protection temperature (7°C or 45°F) and the Comfort temperature minus 0.5°. Select the ECo mode.
  • Page 16 Program Mode : P This mode allows the heater to respond to instruc- tions from a central Programmer system or from an individual Programmer module. The thermostat display will show what instruction is being received Mode (see summary table below). To select the Program Mode : Press the Mode key briefly until the display shows the temperature setting with the letter P on the top right of the screen (19.0...

  • Page 17: Maintenance

    QUALIFIED TECHNICIAN AFTER DISCONNECTING THE HEATER. operation and Maintenance TIPS Your CONVECTAIR heater will become hot when in use. Caution is advised when young children are present. Do not insert small objects through the front louvers : this could cause electrical short- circuit, fire or damage to the inner components.
  • Page 18 To remove a heater (house cleaning or painting, for instance) You will need : a small flat-head screwdriver. 1 – Shut the power to the heater. 2 – Remove the heater from the wall bracket by firmly pressing both locking clips then pulling the heater towards you (page 5, Fig.

  • Page 19: Diagnostics

    Programming seems Make sure that the heater is in Program out of order Mode. Remove and reinsert the Programmer (and receiver if any) in its receptacle. IN ALL OTHER CASES, CONTACT YOUR ELECTRICIAN OR THE NEAREST CONVECTAIR REPAIR CENTER.

  • Page 20: Identification Of Your Heater

    2 years against all defects 5 years on heating element All CONVECTAIR units are subject to a double warranty: 2 years on all parts and manufacturing defects and 5 years on the heating element itself. Warranty is applicable from date of purchase by the customer and under certain specific conditions.
