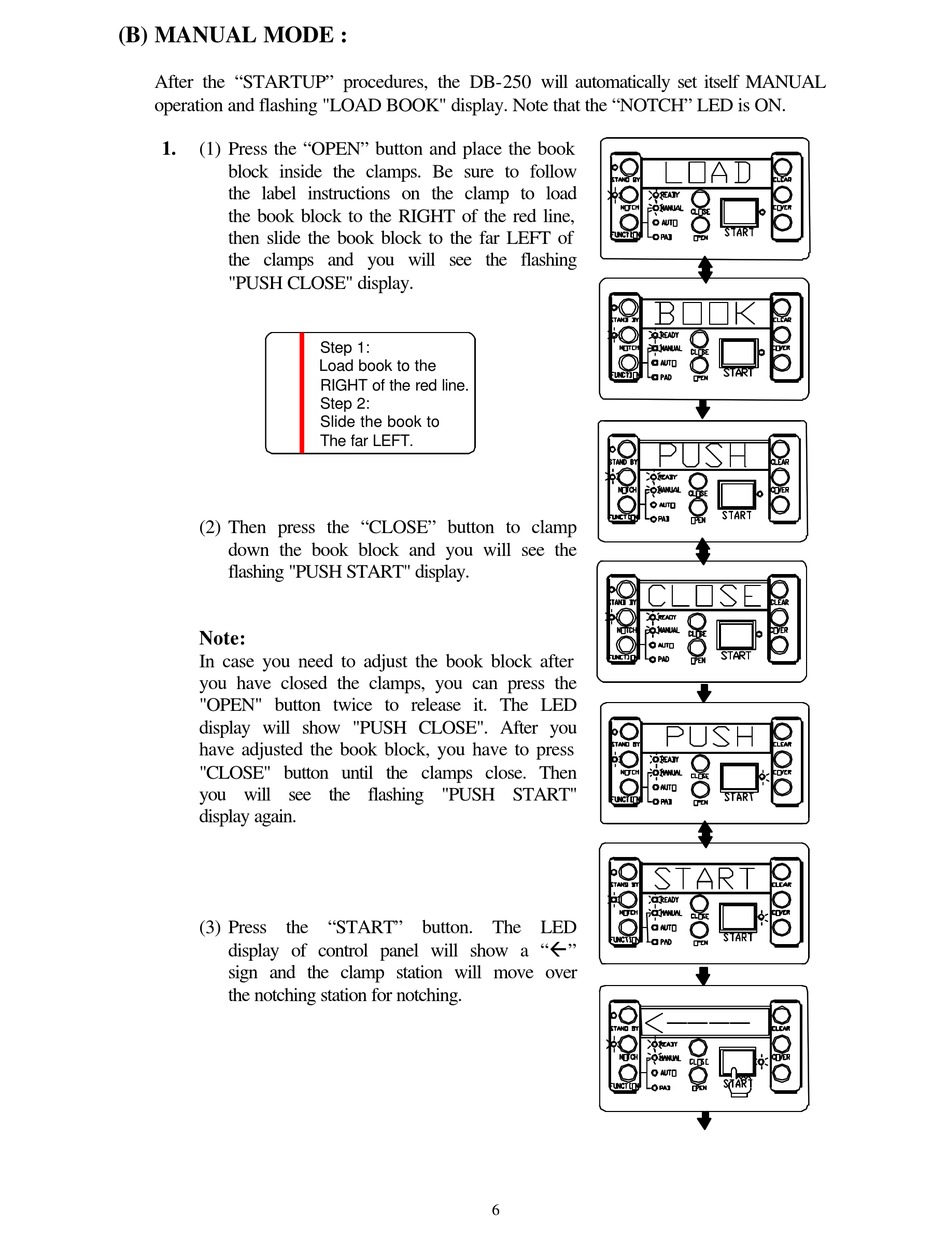

(B) MANUAL MODE :

After the "STARTUP" procedures, the DB-250 will automatically set itself MANUAL
operation and flashing "LOAD BOOK" display. Note that the "NOTCH" LED is ON.
1.
(1) Press the "OPEN" button and place the book
block inside the clamps. Be sure to follow
the label instructions on the clamp to load
the book block to the RIGHT of the red line,
then slide the book block to the far LEFT of
the clamps and you will see the flashing
"PUSH CLOSE" display.
(2) Then press the "CLOSE" button to clamp
down the book block and you will see the
flashing "PUSH START" display.
Note:
In case you need to adjust the book block after
you have closed the clamps, you can press the
"OPEN" button twice to release it. The LED
display will show "PUSH CLOSE". After you
have adjusted the book block, you have to press
"CLOSE" button until the clamps close. Then
you will see the flashing "PUSH START"
display again.
(3) Press the "START" button. The LED
display of control panel will show a "ß"
sign and the clamp station will move over
the notching station for notching.
Step 1:
Load book to the
RIGHT of the red line.
Step 2:
Slide the book to
The far LEFT.
