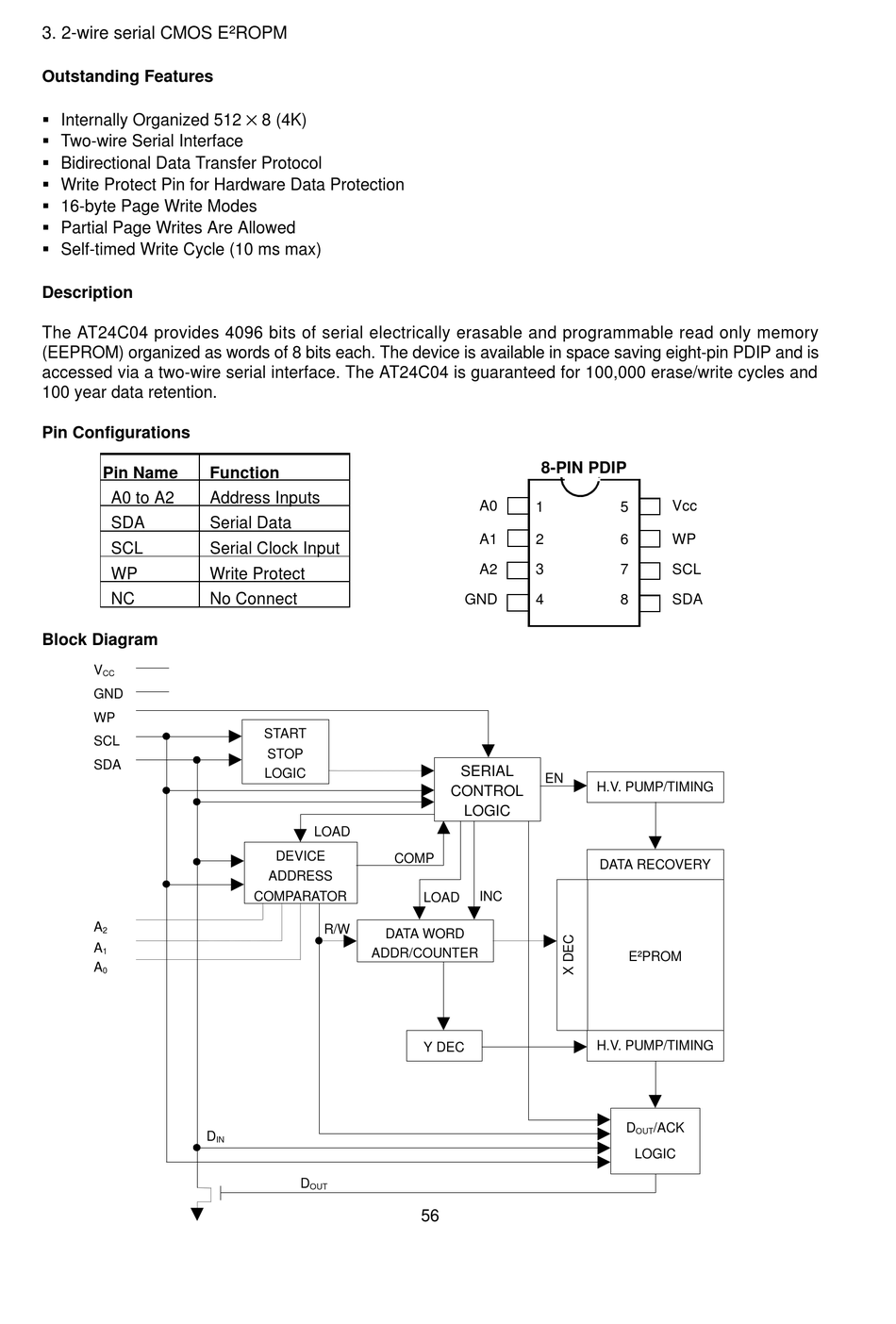

3. 2-wire serial CMOS E ² ROPM
Outstanding Features
§ Internally Organized 512
§ Two-wire Serial Interface
§ Bidirectional Data Transfer Protocol
§ Write Protect Pin for Hardware Data Protection
§ 16-byte Page Write Modes
§ Partial Page Writes Are Allowed
§ Self-timed Write Cycle (10 ms max)
Description
The AT24C04 provides 4096 bits of serial electrically erasable and programmable read only memory
(EEPROM) organized as words of 8 bits each. The device is available in space saving eight-pin PDIP and is
accessed via a two-wire serial interface. The AT24C04 is guaranteed for 100,000 erase/write cycles and
100 year data retention.
Pin Configurations
Pin Name
A0 to A2
SDA
SCL
WP
NC
Block Diagram
V
CC
GND
WP
SCL
SDA
A
2
A
1
A
0
×
8 (4K)
Function
Address Inputs
Serial Data
Serial Clock Input
Write Protect
No Connect
START
STOP
LOGIC
LOAD
DEVICE
ADDRESS
COMPARATOR
R/W
D
IN
D
OUT
A0
A1
A2
GND
SERIAL
CONTROL
LOGIC
COMP
INC
LOAD
DATA WORD
ADDR/COUNTER
Y DEC
56
8-PIN PDIP
Vcc
1 5
2 6 WP
3 7 SCL
4 8 SDA
EN
H.V. PUMP/TIMING
DATA RECOVERY
E²PROM
H.V. PUMP/TIMING
D /ACK
OUT
LOGIC
