DISASSEMBLY

Tilt / swivel base fixing, removing
Fixing

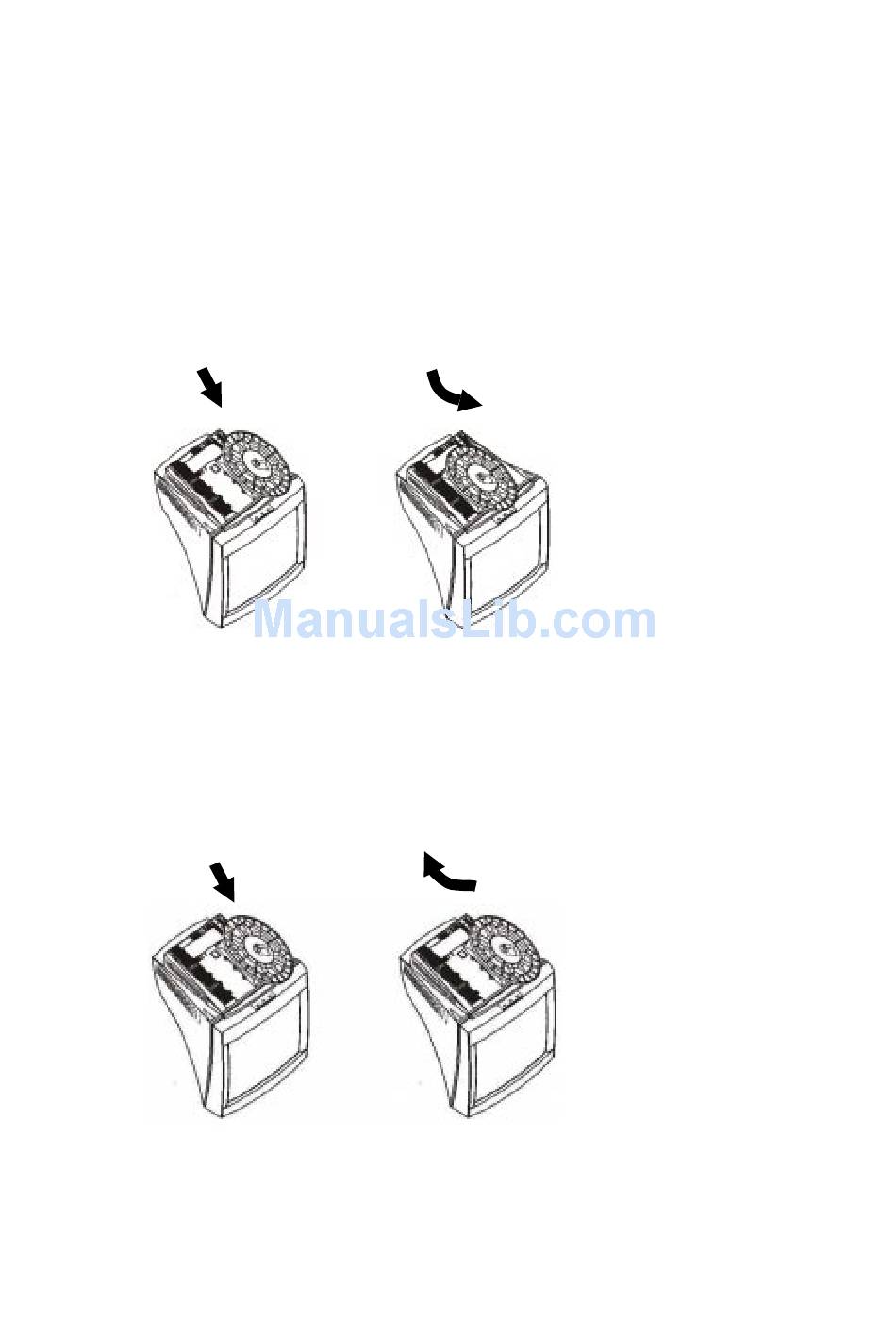

This product consists of the MultiSync monitor and the tilt / swivel base.
When fixing the tilt / swivel base to the MultiSync monitor, please follow the steps below.
•
Push the six hooks of the tilt / swivel base into the six holes at the bottom of the MultiSync
monitor.
•
Then slide the tilt / swivel base forward.
•
Then the latch above the tilt / swivel base engages it is s s s s
Removing
Please removing the tilt / swivel base when transporting for repair.
•
Push down the latch of the MultiSync monitor and pull out the tilt / swivel base.
•
Slide backward the tilt / swivel base from the front of the MultiSync monitor.
•
Pull out the tilt / swivel base from the holes of the MultiSync monitor.
e e e e c c c c u u u u r r r r e e e e . . . .
s e c u r e .
