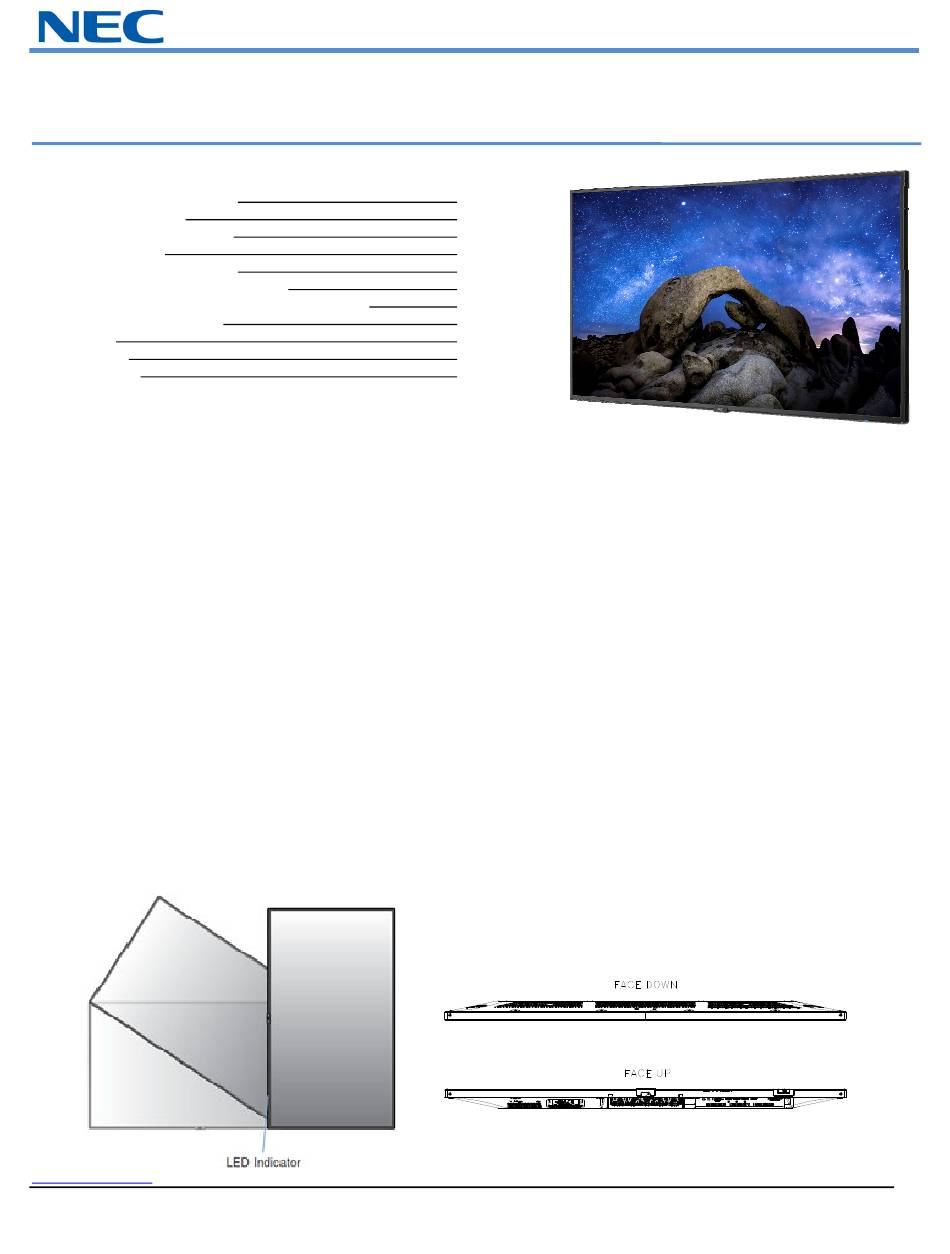

V554Q Installation Guide
Contents:
Product Description
Power Consumption (Max Brightness)
*Overall Max refers to when the unit is at max brightness and the following features are also active: OPS Slot, External Speaker, Raspberry Pi
Compute Module Slot
NOTES:
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see "Aspect Modes" in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Tilt Angle and Rotation
Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. Rotate
only clockwise for portrait orientation.
www.necdisplay.com
Display Resolution
Power Consumption (Typical)
Power Consumption (Overall Max)*
BTU's (Typical)
BTU's (Max Brightness)
BTU's (Overall Max)*
Net Dimensions
Net Weight
NEC Display Solutions of America, Inc.
Page 1
Page 1
Page 2
Page 3-4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
V554Q
3840 x 2160 at 60Hz
120W
170W
300W
409.49 BTU/hr
580.11 BTU/hr
1023.72 BTU/hr
48.8 x 28.1 x 2.7 in. / 1238.4 x 712.8 x 68.9mm
59.1lbs. / 26.8kg
V554Q
[Ver.1.0]
Page 1 of 11
Advertisement
Table of Contents
Related Manuals for NEC V554Q
Summary of Contents for NEC V554Q
-
Page 1: Table Of Contents
NEC Display Solutions of America, Inc. V554Q Installation Guide [Ver.1.0] Contents: Product Description and Notes Page 1 Tilt Angle and Rotation Page 1 Ventilation Recommendations Page 2 Display Dimensions Page 3-4 Display Dimensions with stand Page 5 Optional Table Top Stand Dimensions... -
Page 2: Ventilation Recommendations
The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations. -
Page 3: Display Dimensions
NEC Display Solutions of America, Inc. Display dimensions: www.necdisplay.com V554Q Page 3 of 11... - Page 4 NEC Display Solutions of America, Inc. Display dimensions (cont.): www.necdisplay.com V554Q Page 4 of 11...
-
Page 5: Display Dimensions With Stand
NEC Display Solutions of America, Inc. Display Dimensions (with ST-401 stand): NOTE: The ST-401 optional stand attaches to the VESA hole pattern on the back of the display and can be set so the display is either ~30mm or ~50mm from the tabletop www.necdisplay.com... -
Page 6: Optional Table Top Stand Dimensions
NEC Display Solutions of America, Inc. Optional Table Top Stand Dimensions (ST-401): NOTE: The pole of the ST-401 stand connects directly to the VESA hole pattern on the back of the display. www.necdisplay.com V554Q Page 6 of 11... -
Page 7: Dimensions Of Optional Wall Mount (Wmk-3255S)
NEC Display Solutions of America, Inc. Dimensions of Optional Wall Mount Kit (WMK-3255S): www.necdisplay.com V554Q Page 7 of 11... -
Page 8: Compute Module Integration
NEC Display Solutions of America, Inc. Compute Module Integration: Door on the back of the display can be opened by loosening captive screws. Separate IO Board is necessary to accompany RPi Compute Module in unit www.necdisplay.com V554Q Page 8 of 11... -
Page 9: Input Panel
NEC Display Solutions of America, Inc. Input Panel: Bottom Side (Rotated) ASCII Common Commands: This monitor supports common ASCII control commands with many other NEC projectors. For more information on this, please see our website. www.necdisplay.com V554Q Page 9 of 11... -
Page 10: Control Codes
NEC Display Solutions of America, Inc. Control Codes: NOTE: Contact your NEC representative for codes not listed. Cable Connection Communication Protocol: Interface: RS-232C Communication System: Asynchronous Baud Rate: 9600 bps Data Length: 8 bits Parity: None Stop Bit 1 bit... -
Page 11: Browser Control
NEC Display Solutions of America, Inc. Browser Control: Information and control can also be available through the HTTP browser control menu. In order to accomplish this, type: http://<the Monitor’s IP address>/pd_index.html Note that the LAN Power needs to be turned on in order for the display to be controlled while the units are off.
