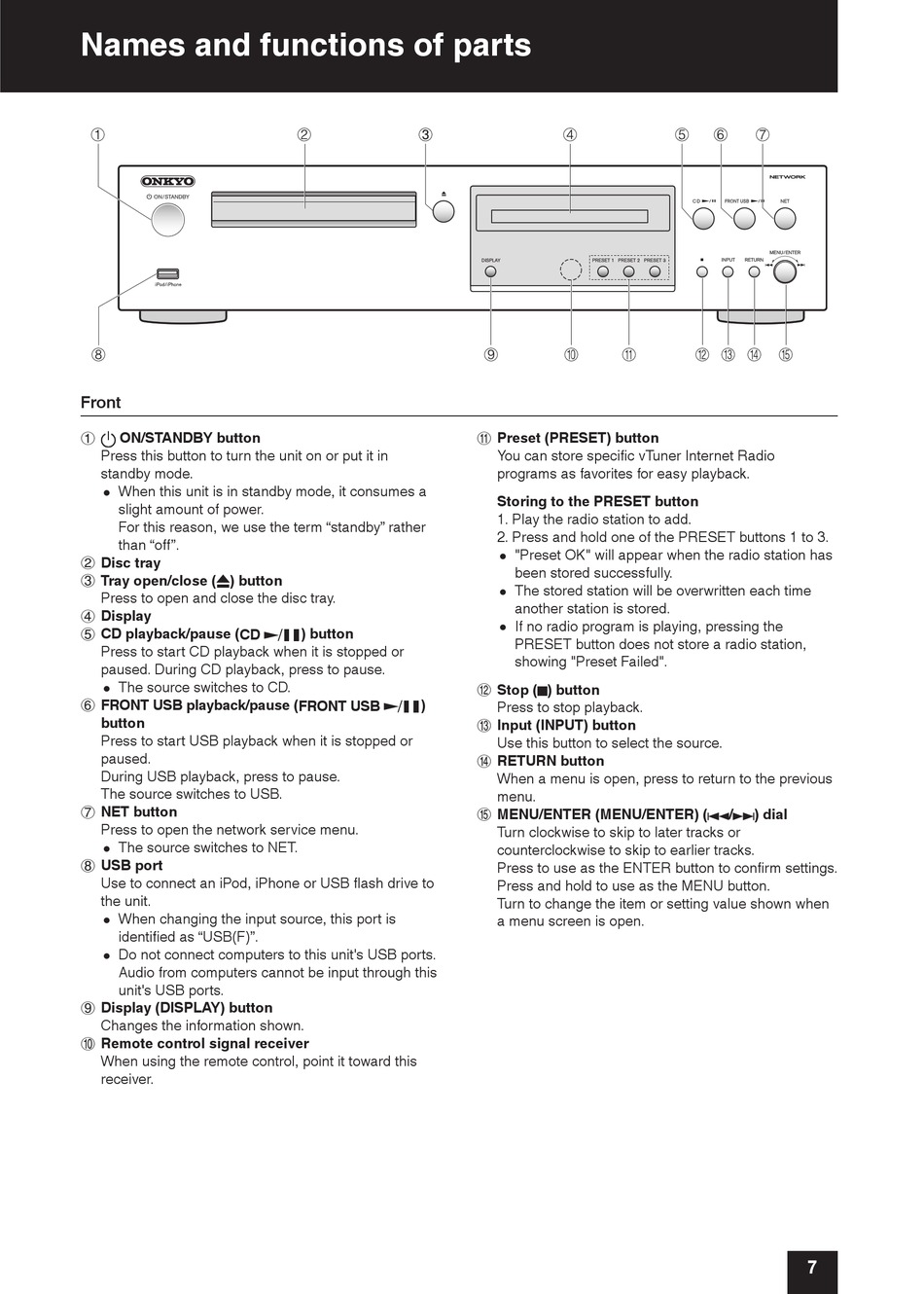

Names and functions of parts

Front

ON/STANDBY button
1
Press this button to turn the unit on or put it in
standby mode.
⿠ When this unit is in standby mode, it consumes a
slight amount of power.
For this reason, we use the term "standby" rather
than "off".
Disc tray
2
Tray open/close ( ) button
3
Press to open and close the disc tray.
Display
4
CD playback/pause ( CD
5
Press to start CD playback when it is stopped or
paused. During CD playback, press to pause.
⿠ The source switches to CD.
FRONT USB playback/pause ( FRONT USB
6
button
Press to start USB playback when it is stopped or
paused.
During USB playback, press to pause.
The source switches to USB.
NET button
7
Press to open the network service menu.
⿠ The source switches to NET.
USB port
8
Use to connect an iPod, iPhone or USB flash drive to
the unit.
⿠ When changing the input source, this port is
identified as "USB(F)".
⿠ Do not connect computers to this unit's USB ports.
Audio from computers cannot be input through this
unit's USB ports.
Display (DISPLAY) button
9
Changes the information shown.
Remote control signal receiver
F
When using the remote control, point it toward this
receiver.
) button
/
)
/
Preset (PRESET) button
G
You can store specific vTuner Internet Radio
programs as favorites for easy playback.
Storing to the PRESET button
1. Play the radio station to add.
2. Press and hold one of the PRESET buttons 1 to 3.
⿠ "Preset OK" will appear when the radio station has
been stored successfully.
⿠ The stored station will be overwritten each time
another station is stored.
⿠ If no radio program is playing, pressing the
PRESET button does not store a radio station,
showing "Preset Failed".
Stop ( ) button
H
Press to stop playback.
Input (INPUT) button
I
Use this button to select the source.
RETURN button
J
When a menu is open, press to return to the previous
menu.
MENU/ENTER (MENU/ENTER) (
K
Turn clockwise to skip to later tracks or
counterclockwise to skip to earlier tracks.
Press to use as the ENTER button to confirm settings.
Press and hold to use as the MENU button.
Turn to change the item or setting value shown when
a menu screen is open.
/ ) dial
