Summary of Contents for Reconyx Hyperfire

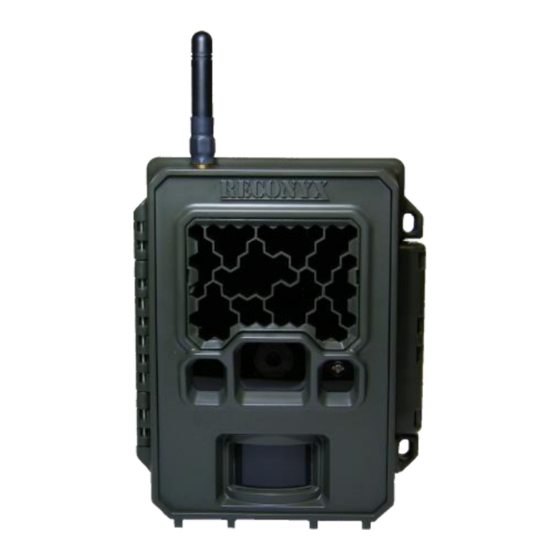

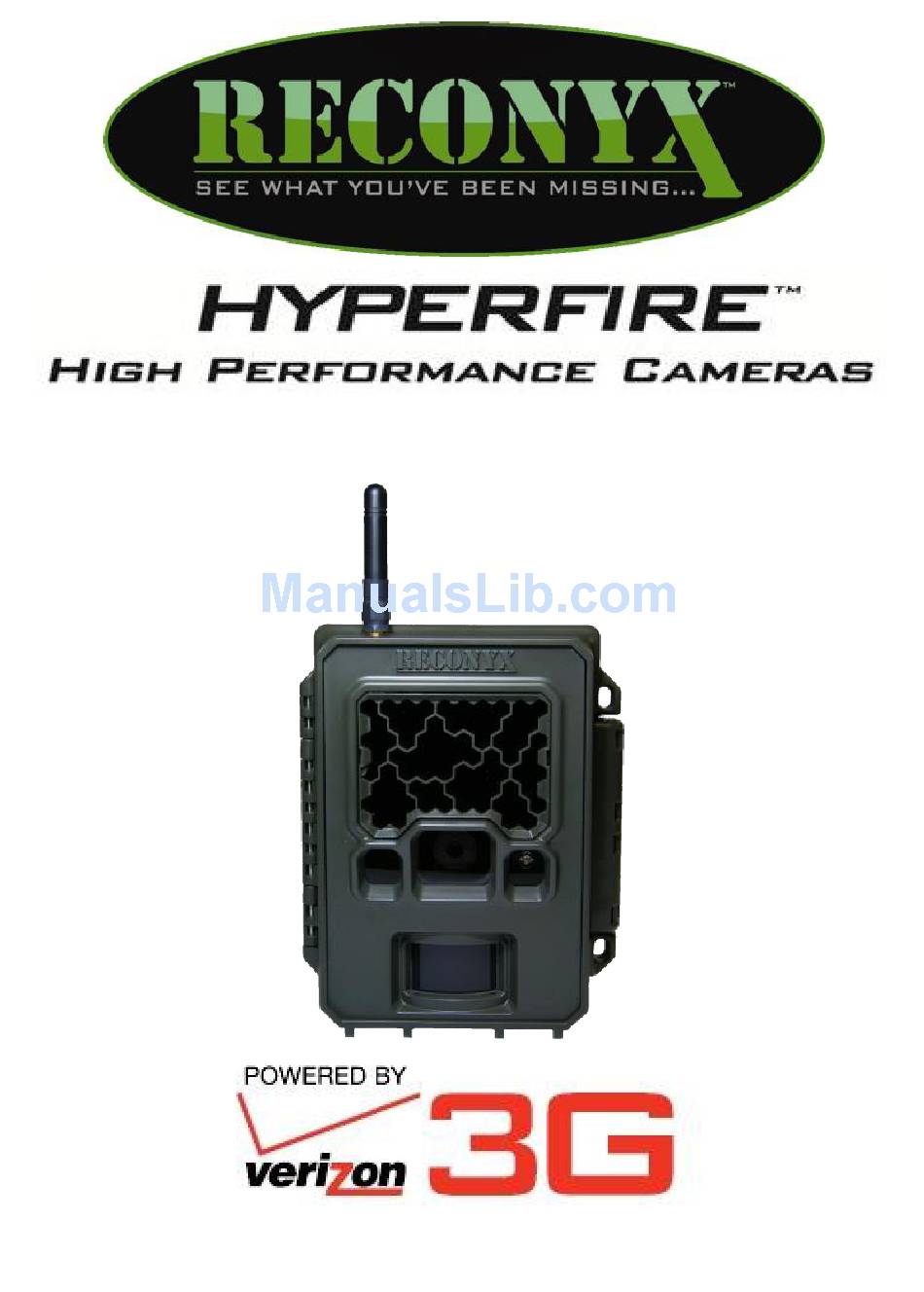

- Page 1 Cellular Camera Manual Copyright: May 2014...
-
Page 2: Table Of Contents
Using your Cellular Camera ..........8 Battery and Power Specifications and Installation ... 13 VII. Monitoring and Managing Cellular Photos ......15 VIII. Troubleshooting ..............16 Your Information and Camera Warranty Registration ..18 Copyright & Trademark Information ........19 ©RECONYX, Inc. -
Page 3: Cellular Overview
Ultimate Lithium batteries or NiMH rechargeable batteries. There is also an External Power Jack available. This can be used with the Solar Panel Power Unit (available at www.reconyx.com) or other Windows® PC to install and run MapView™ and the “Security Settings” software to program your cellular camera. -
Page 4: Programming Your Cellular Camera
“Security Settings” program icon on the desktop. Select the SD card you would like to save the settings to and click “OK” to start the program. Click on the “Cellular” tab to program your camera’s cellular modem: ©RECONYX, Inc. - Page 5 Motion photos are marked with an “M”; Timelapse photos are marked with a “T”. Select your carrier…: Select “Verizon” from the dropdown list. This will allow you to input up to two email addresses where the photos will be delivered. www.reconyx.com...
- Page 6 NOTE: For security reasons, all contacts must be programmed using the Security Settings software. The contacts are not visible or editable on the camera itself. NOTE: A list of all possible error messages that your camera might send you appears later in this manual. ©RECONYX, Inc.
- Page 7 Upload Security Settings from PC to the Camera Once the SD Card has been programmed using your PC, a file named “Schedule.cfg” is created inside the “RECONYX” folder on the SD card. Remove the SD card from your PC and…...
-
Page 8: Setting Up Your Verizon Account
Once you have been assigned a phone number there is a label on the inside of the camera to record the number. There is also a section on the last page of this manual to record your mobile number. ©RECONYX, Inc. -
Page 9: Using Your Cellular Camera
= Not provisioned, account issue, or signal weak/dropped NO IP CONNECTION = Network issue, email server issue, or signal dropped WEAK SIGNAL = Signal is < -101dBm EMAIL ERROR = Email server issue, or signal weak/dropped FAILED TO SEND = Error occurred during image transmission www.reconyx.com... - Page 10 The SM750 (License Plate Capture Camera) will send full resolution photos. All other cameras will have the photos downsized to 512x384 when they are sent. The full resolution photos are saved locally on the SD card. NOTE: While the camera is sending photos, it can NOT take photos. ©RECONYX, Inc.
- Page 11 = Not provisioned, account issue, or signal weak/dropped NO IP CONNECTION = Network issue, email server issue, or signal dropped WEAK SIGNAL = Signal is < -101dBm EMAIL ERROR = Email server issue, or signal weak/dropped FAILED TO SEND = Error occurred during image transmission www.reconyx.com...
-
Page 12: Email Setup
Email Setup You may wish to have a dedicated email account to monitor photos sent from your camera(s). You can use the RECONYX Mobile Desktop Application to monitor the account ® without having to go to the account or have a browser window open. - Page 13 Since every situation is different you will need to think through your particular scenario and decide which settings are optimal for your application. NOTE: While the camera is sending photos, it can NOT take photos. www.reconyx.com...
-
Page 14: Battery And Power Specifications And Installation
When using the external power the ON/OFF switch should be in the “ON” position. Input power supply should be able to deliver 4 amps of current at 12 volts. TIP: The Solar Panel Power Unit available at www.reconyx.com is an ideal solution to power your cellular camera via the external power jack. -
Page 15: Battery Performance
(1.2V, 2600MaH) * High and low temperatures can reduce run time of NiMH batteries by 50% or more. NOTE: Battery life can vary greatly depending on signal strength. TIP: You can purchase 1.5V Lithium batteries as well as RECONYX certified ®... -
Page 16: Monitoring And Managing Cellular Photos
Monitoring and Managing Cellular Photos Depending on your application and number of cameras deployed, it can be difficult to monitor all of your images. RECONYX has developed a program to help you monitor ® and manage your images as they are delivered to your email account. -
Page 17: Troubleshooting
Other Questions: If you have followed all the steps in this guide and are still having trouble, please call our Technical Support team at (866) 493-6064. Or send an email to support@reconyx.com. www.reconyx.com... -
Page 18: Safety Precautions
High temperatures may also cause deformation of the casing. Check your state/local laws concerning the use of this product. ©RECONYX, Inc. -
Page 19: Your Information And Camera Warranty Registration
Phone Number: Wireless Carrier Username: Wireless Carrier Password/PIN: Camera Serial #: CodeLoc Password: Register your Camera Save A Stamp! Register Your HyperFire camera RECONYX, Inc. online today at www.reconyx.com/register 3828 Creekside Lane Or by sending in the information to: Holmen, WI 54636... -
Page 20: Copyright & Trademark Information
HyperFire™, MapView™, CodeLoc™, InstaOn™, NearVideo™, LFT™, RapidFire™, IR Mask™, VersaMount™ and ThunderBolt™ are trademarks of RECONYX® Google Maps®, Gmail®, Yahoo! ®, Energizer® and RECONYX® are registered trademarks of their respective owners. Secure Digital® (SD and SDHC) are registered trademarks of the SD Association.
