Ports

All ports on the Fast Ethernet Office Switch support Auto-MDI/MDI-X
functionality, so crossover cables and uplink ports are not needed for
connections to PCs, routers, hubs, additional switches or other devices.
Cat5/5e UTP/STP cables provide optimal performance; if a status LED
corresponding to any of the ports in use doesn't indicate a link or activity,
check the connected device for proper setup and operation.

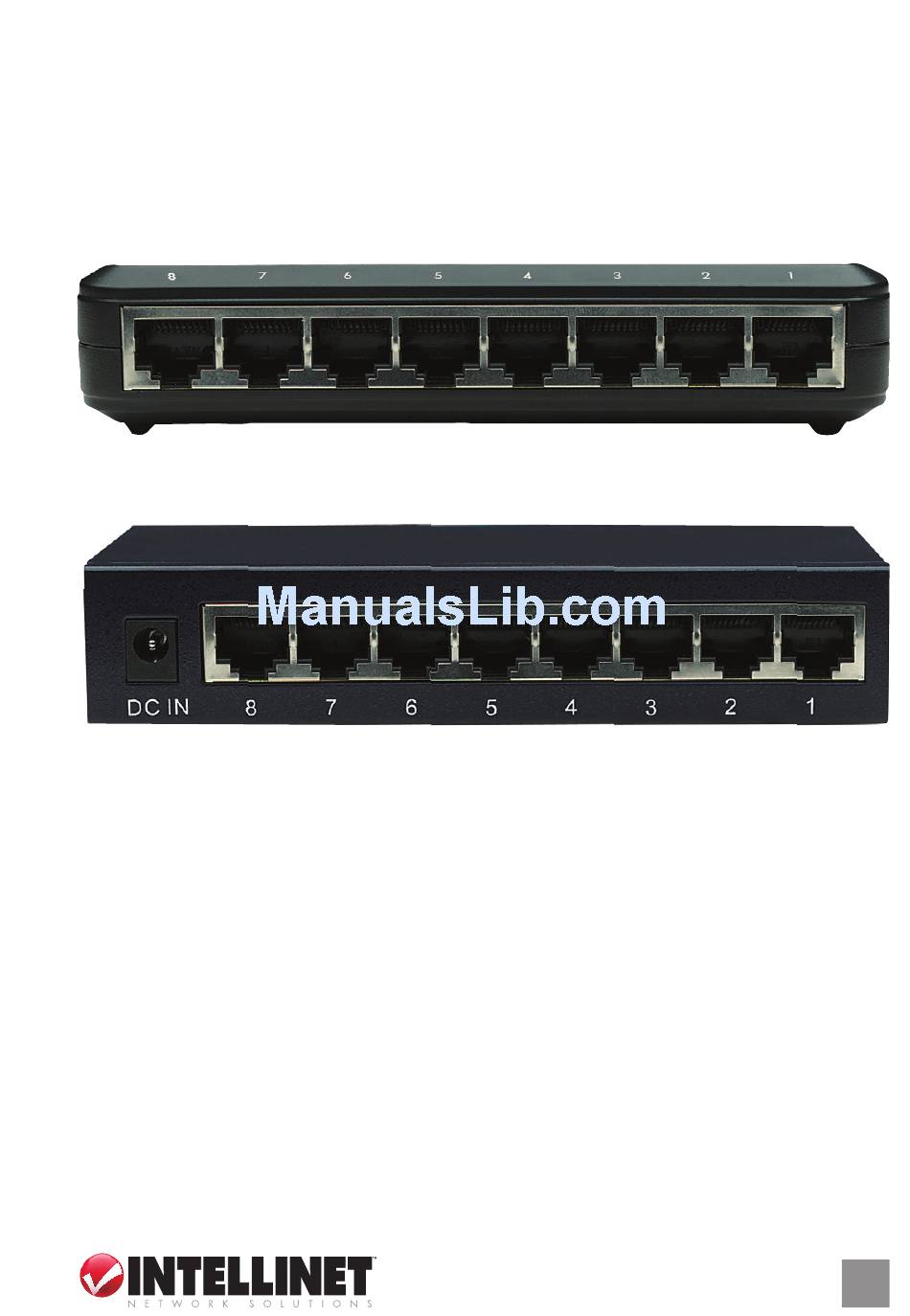

Above: Model 502054; below: Model 523318. Note that only Model 502054 has the power adapter jack on the
side panel, as shown on Page 4.

installatiOn

Prior to use, it is recommended that the Fast Ethernet Office Switch be
placed/positioned:
• on a level surface that can support the weight of the switch (and any
other items that need to be considered);
• with a minimum of 25 mm (approx. 1") of clearance on the top and
sides for adequate ventilation;
• away from sources of electrical noise, such as radios, transmitters and
broadband amplifiers;
• where it cannot be affected by excessive moisture; and
• within 100 m (approx. 328') of network devices it's to be connected to.
