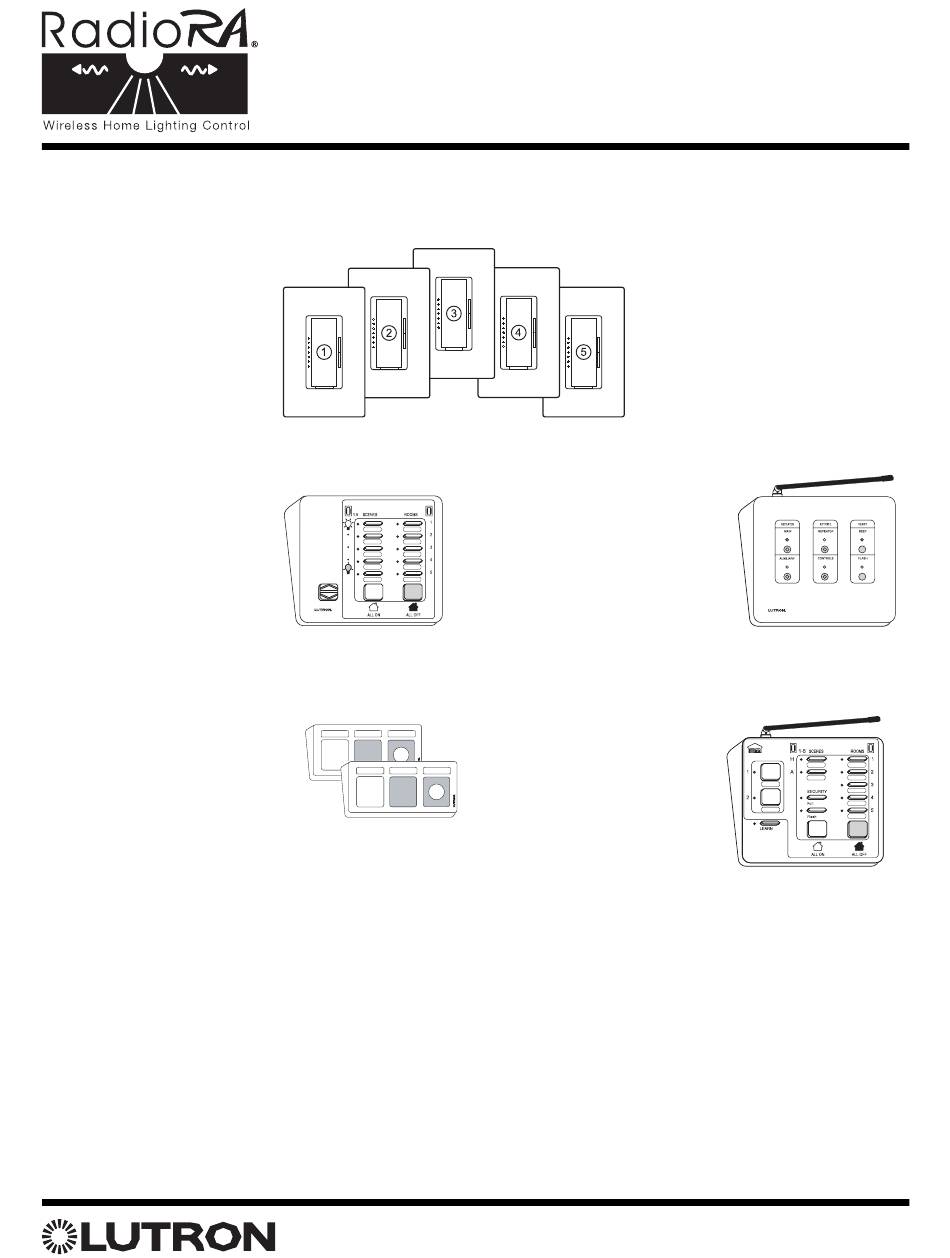

Homeowner's Guide
RadioRA
Dimmers
®
• Turn lights in a room on and off
• Dim lights in each room or area
• Preset light level for each room
RadioRA
10-Button
®
Tabletop Master Control
• Turns all lights on and off
• Controls groups of lights preset
as a lighting scene
• Monitors on or off status of
lights
RadioRA
Visor Control Transmitters
®
• Turns lights on to preset levels and
off from the car
• Operates garage doors from the car
• HomeLink
compatible
®
RadioRA
®
Lighting Control System
Package Contents:
(5) 600 W Dimmers
(2) 3-Way Accessory Dimmers
(1) 10-Button Tabletop Master Control
These instructions are for RA-QS-STR-1 and RB-QS-STR-1.
These instructions are for RA-QS-STR-1 and RB-QS-STR-1.
Quick Start Wireless Home
®
RadioRA
RF Signal Repeater
®
• Ensures reliable system
communications and function
• Allows for future system expansion
RadioRA
Multi-Function
®
Entry Master Control
• Enables use of Visor Control
Transmitters
• Functions as an additional Master
Control
• Operates garage doors
(1) Multi-Function Entry Master Control
(2) Car Visor Control Transmitters
(1) RF Signal Repeater

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RadioRA and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics RadioRA

Summary of Contents for Lutron Electronics RadioRA

  • Page 1 Homeowner’s Guide RadioRA Dimmers ® • Turn lights in a room on and off • Dim lights in each room or area • Preset light level for each room RadioRA 10-Button RadioRA RF Signal Repeater ® ® Tabletop Master Control •...

  • Page 2: Device Locations

    RF Signal Repeater 10-button Tabletop Multi-Function Entry Master Control Master Control Location: Dimmers Replace conventional light switches. Lights can be turned on at the RadioRA Dimmers or remotely by the Master ® Control. Benefits of Dimming Status Indicators (LEDs) Reduce energy consumption.
  • Page 3 Feel free to move the Master Control to another location. All RadioRA devices retain their programming for over 10 years, even when they are unplugged. Homeowner’s Guide for the RadioRA Quick Start Package ®...
  • Page 4 Indicates the repeater is an Auxiliary Flash Button Repeater Press and hold (until LED lights) to flash all devices in the system–to verify repeater can talk to all system devices Homeowner’s Guide for the RadioRA Quick Start Package ®...
  • Page 5 It does not allow you to add a light to a button or remove lights from a button–that must be done in programming mode (refer to RadioRA Setup Guide P/N 044-001 that came with your RF Signal Repeater for more information).

  • Page 6: Button Assignments

    Visor Control Transmitter 1 Visor Control Transmitter 2 Controls Entry Master Controls Entry Master VCTX Button VCTX Button Control Button Control Button White White Gray Gray Gray with white circle Gray with white circle Homeowner’s Guide for the RadioRA Quick Start Package ®...
  • Page 7 2. Apply DOORS label above the left-most column of the Entry Master Control as shown. 3. Apply ALL ON and ALL OFF labels below the ALL ON and ALL OFF buttons as shown. Multi-Function Entry 10-Button Tabletop Master Master Control (MFE) Control (10T) Homeowner’s Guide for the RadioRA Quick Start Package ®...

  • Page 8: Fcc Information

    National Fire Protection Association, Quincy, Massachusetts. HomeLink is a registered trademark of Johnson Controls, Inc., Milwaukee, Wisconsin. Other countries call (610) 282-3800 Lutron, RadioRA and the Sunburst logo are registered trademarks of Lutron Fax (610) 282-3090 Electronics Co., Inc.
