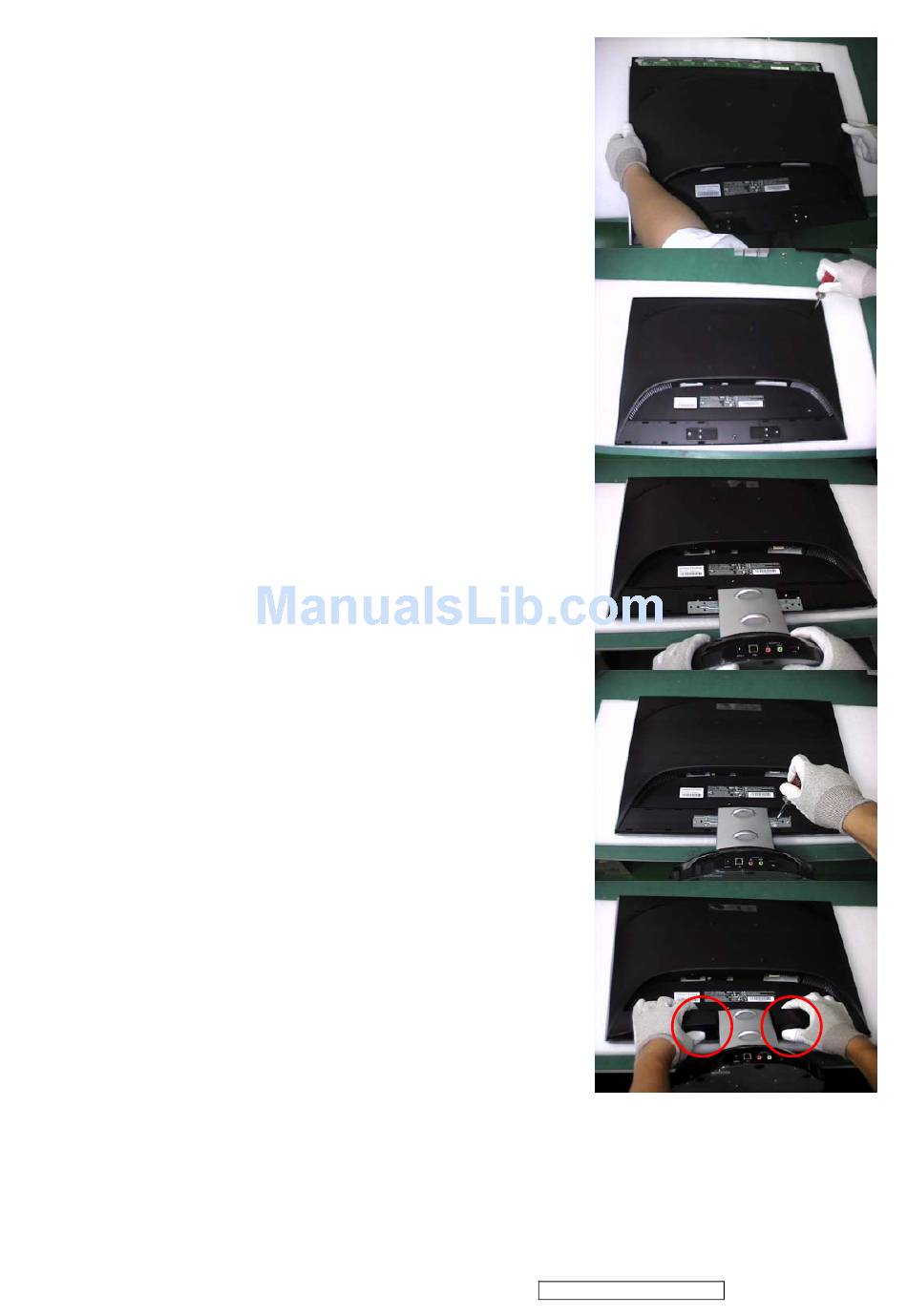

8. Rear Assy & Stand Assembly

Step 1 :

Place Rear Cover.

Step 2 :

Fasten 3 fixed screws.

Step 3 :

Place the Stand Assy.

Step 4 :

Fasten 6 fixed screws.

Step 5 :

Join the Stand Covers.

Step 6 : Completed.
