ViewSonic VX2245wm-1 Service Manual page 64

22” color tft lcd display

Table of Contents

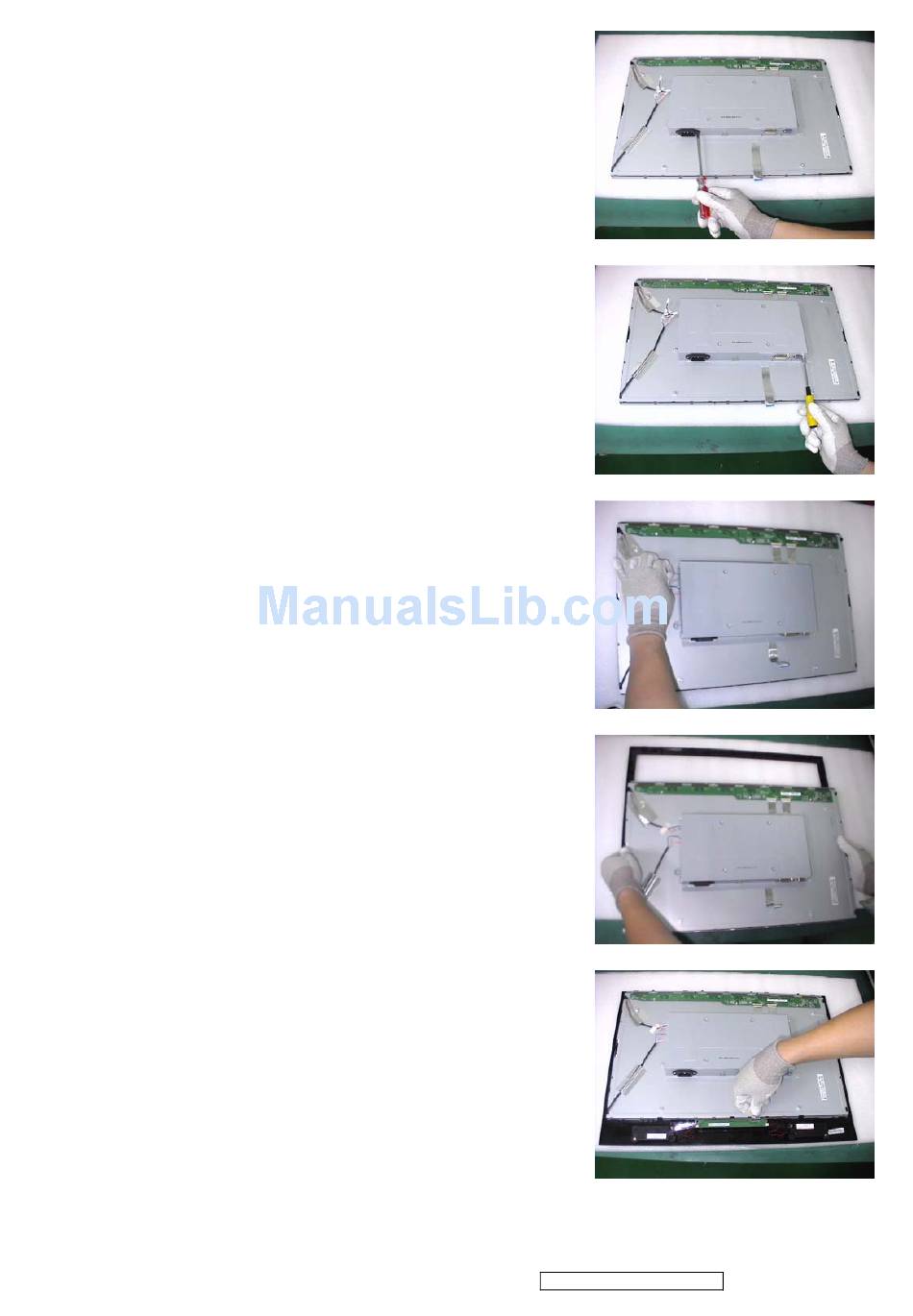

Step 3 :

Fasten 2 fixed screws

Step 4 :

Fasten 4 fixed screws.

Step 5 :

Insert 4 pieces of Backlight wires.

Step 6 :

Join LCD module and remove bezel.

Step 7 :

Insert FFC.

Step 8 : Completed.
