22” color tft lcd display

Table of Contents

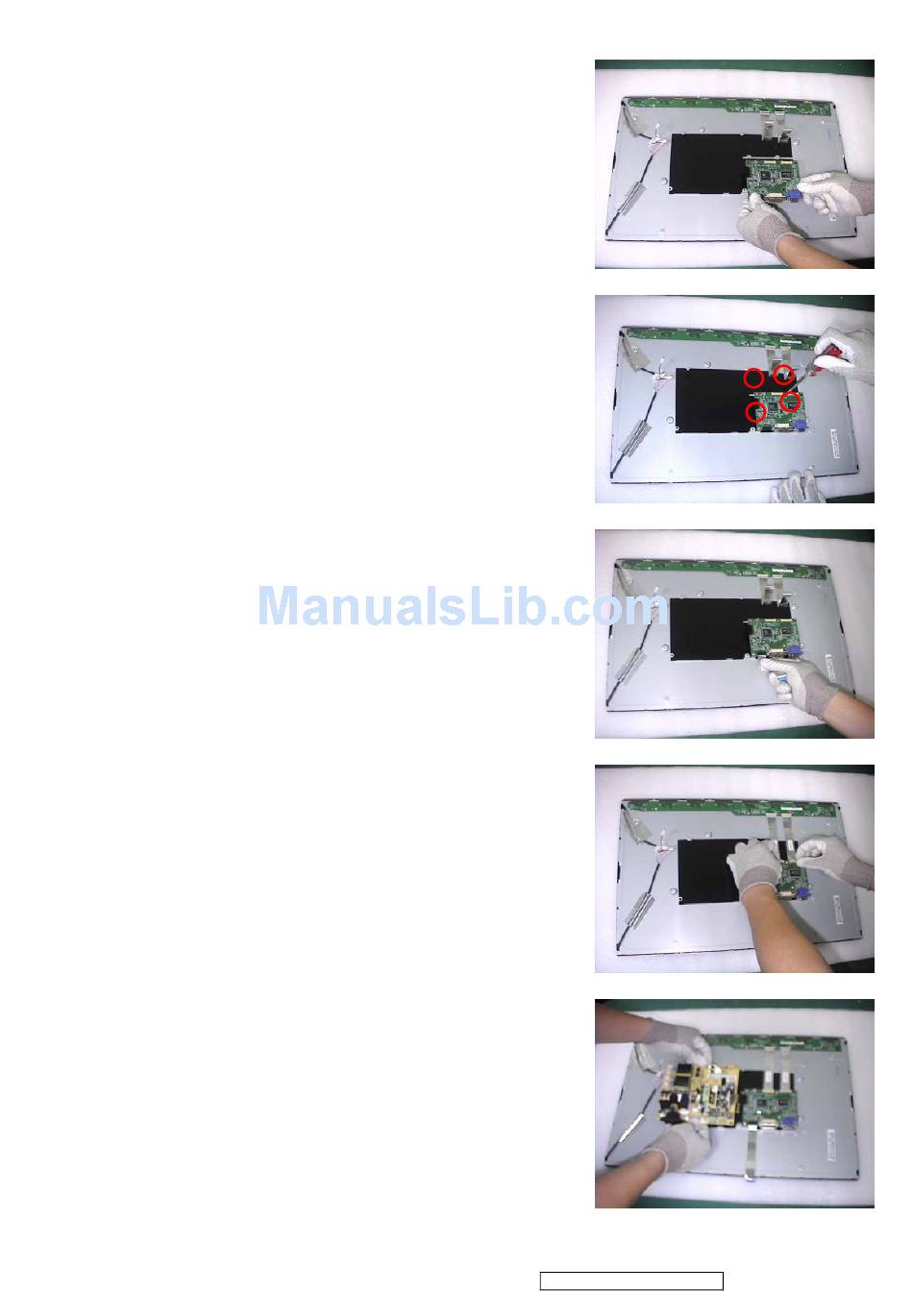

4 Change New AD Board and Power Board

Step 1 :

Place new AD Board.

And fasten 4 fixed screws.

Step 2 :

Fasten 4 fixed screws.

Step 3 :

Insert FFC.

Step 4 :

Insert 2 pieces of FFCs .

Step 5 :

Insert new Lips Board.
