- Page 1 Digital Wireless System RS 160 Instruction manual...
-
Page 2: Table Of Contents
Contents Contents Important safety information ................2 The RS 160 digital RF headphone system ............4 Delivery includes ....................5 Product overview ....................6 Overview of the HDR 160 headphones ............. 6 Overview of the TR 160 transmitter ............7 Overview of the indicators and acoustic signals ........ -
Page 3: Important Safety Information
Keep the headphones at least 1.2” (3 cm) from cardiac pacemakers or implanted defibrillators. • Please protect your hearing from high volume levels. Sennheiser headphones also sound exceptionally good at low volumes. • Only use the Sennheiser supplied power supply units. - Page 4 Important safety information Replacement parts When replacement parts are required, be sure the service technician uses replacement parts specified by Sennheiser or those having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
-
Page 5: The Rs 160 Digital Rf Headphone System

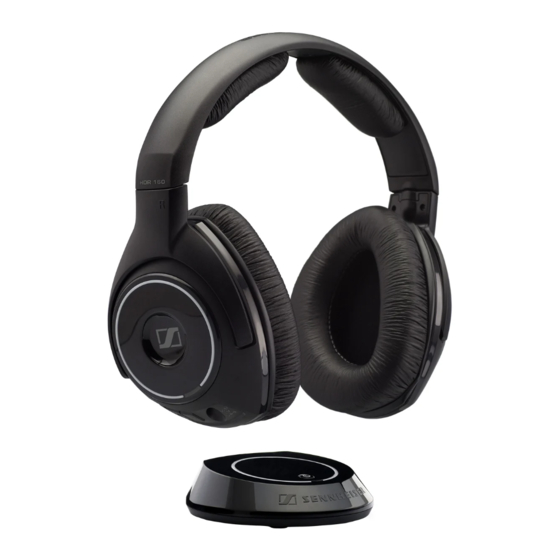

The RS 160 digital RF headphone system The RS 160 digital RF headphone system The RS 160 is an RF stereo hi-fi headphone system with comprehensive technical features. Its transparent and balanced sound image with excellent bass response makes this system an ideal choice for hi-fi, home cinema and TV use. -
Page 6: Delivery Includes
Delivery includes Delivery includes 1 HDR 160 headphones 1 TR 160 transmitter 1 power supply unit with country adapters 1 stereo audio cable with 3.5 mm jack plugs 1 DC cable (4.0 mm DC jack socket to 2 x 4.0 mm DC plug) 2 AAA size NiMH rechargeable batteries, 1.2 V 1 quick guide incl. -
Page 7: Product Overview
Product overview Product overview Overview of the HDR 160 headphones ³ · º ¿ ¶ ´ ² » » ³ ¿ VOLUME + Headband button · ´ Ear pads Multi-function button » ² VOLUME – Battery compartments button ¶ Charging socket (DC 5V 0.5A) º... -
Page 8: Overview Of The Tr 160 Transmitter
Product overview Overview of the TR 160 transmitter Multi-function button Multi-function LED Socket for power supply unit (DC 5V 0.5A) Audio input (AUDIO VOLUME control (– With the multi-function button , you can switch the transmitter on/to standby mode, set the transmitter to multi-user operation and associate the transmitter. -
Page 9: Overview Of The Indicators And Acoustic Signals
Product overview Overview of the indicators and acoustic signals Meaning of the pictograms for the different LEDs Status Meaning The LED is lit. The LED flashes once per second. The LED flashes twice every 5 seconds. Indicators on the headphones Indicator Status Meaning... - Page 10 Product overview Indicators on the transmitter Indicator Status Meaning Multi-function LED The signal of the sound source is too strong. The transmitter is in enrollment mode (searching for headphones to pair with). The transmitter is in association mode (exchanging device information with the headphones).
-
Page 11: Overview Of The Connection Stages
Product overview Overview of the connection stages Connection establishment Enrollment mode When you switch the headphones and the transmitter on, the headphones search for a suitable transmitter. Pairing The headphones and the transmitter have recognized each other and the headphones are paired with the transmitter. Single-user and multi-user operation Single-user operation You can listen to your sound source via one pair of headphones. -
Page 12: Putting The Rs 160 Into Operation
Putting the RS 160 into operation Putting the RS 160 into operation Setting up the transmitter Choose a suitable place near your sound source (e.g. TV, stereo or home cinema system). Do not place the transmitter close to metal objects such as shelf bars,... -
Page 13: Connecting The Transmitter To A Sound Source
Putting the RS 160 into operation Connecting the transmitter to a sound source You can connect the TR 160 transmitter to different sound sources, such as a TV, a DVD player or a stereo system. Switch your sound source off before connecting the transmitter. -
Page 14: Powering The Transmitter
Putting the RS 160 into operation Powering the transmitter For powering the TR 160 transmitter, you can use: • the supplied SSA-4P 5050F power supply unit for stationary use • rechargeable batteries (AA size, NiMH, 1.2 V, at least 1,300 mAh) for mobile use •... - Page 15 Putting the RS 160 into operation Inserting rechargeable batteries/standard batteries into the transmitter and changing them Power the TR 160 transmitter either with rechargeable batteries (AA size, NiMH, 1.2 Vat least 1,300 mAh) or standard batteries (AA size, 1.5 V).
-
Page 16: Powering The Headphones
Putting the RS 160 into operation Powering the headphones For powering the headphones, you can use: • standard batteries (AAA size, 1.5 V) • rechargeable batteries (AAA size, NiMH, 1.2 V, 600 mAh) If you use rechargable batteries, you can charge them in the headphones using the charging cable (see next chapter). - Page 17 Putting the RS 160 into operation Charging rechargeable batteries in the headphones CAUTION Danger of damage to the headphones! If standard batteries are inserted into the headphones, the batteries can leak during charging and damage the headphones. Only charge rechargeable batteries in your headphones.
-
Page 18: Adjusting The Headband Of The Headphones
Putting the RS 160 into operation Adjusting the headband of the headphones For good sound quality and best possible comfort, the headband has to be ³ ³ adjusted to properly fit your head. To do so, adjust the headband via its snap-in locking mechanism: ³... -
Page 19: Using The Rs 160
Using the RS 160 Using the RS 160 To switch the product on and to listen to your sound source, proceed as follows: Sequence of steps Page 1. Make sure that the rechargeable batteries are charged. 2. Switch your sound source on. - Page 20 Using the RS 160 Switching the transmitter off Press the multi-function button for approx. 1 second. The multi-function LED goes off. The transmitter is in standby mode. To disconnect the transmitter from the mains: Pull out the mains plug from the wall socket.
-
Page 21: Switching The Headphones On And Off
Using the RS 160 Switching the headphones on and off WARNING Danger due to high volumes! Listening at high volume levels for long periods can lead to permanent hearing defects. Before putting the headphones on, set the volume to a low level. -
Page 22: Adjusting The Volume On The Headphones
Using the RS 160 Adjusting the volume on the headphones ² ¿ Press the VOLUME – button or the VOLUME + button repeatedly until the volume is adjusted to a comfortable and undistorted level. ² ¿ Vol - Vol +... -
Page 23: Adjusting The Signal Of The Sound Source
Using the RS 160 Adjusting the signal of the sound source The transmitter automatically ensures that the headphones always receive an optimum signal. If necessary, use the VOLUME control adjust the volume of the audio signal. However, the signal of the sound source can be so strong that it can no longer be automatically adjusted. -
Page 24: Associating The Headphones To The Transmitter
Using the RS 160 Associating the headphones to the transmitter The RS 160 system features the digital wireless audio transmission technology from Kleer. You can also associate other Kleer compatible headphones (e.g. the Sennheiser MX W1) to the transmitter. For more information, refer to the chapter “Associating other Kleer compatible headphones to the transmitter”... - Page 25 Using the RS 160 Simultaneously press the multi-function button of the ´ transmitter and the multi-function button of the headphones for 7 seconds. The multi-function LED of the transmitter flashes green. ´ After approx. 30 seconds, the headphones are paired with the transmitter and you can hear your sound source via the headphones.
- Page 26 Using the RS 160 Associating other Kleer compatible headphones to the transmitter The following describes how to associate the Sennheiser MX W1 earphones to the TR 160 transmitter. For information on how to associate other Kleer compatible headphones to the transmitter, refer to the instruction manual of the corresponding prod- uct.
-
Page 27: Listening With Several Headphones Simultaneously
Using the RS 160 Listening with several headphones simultaneously By default, the transmitter is set to single-user operation. In order to be able to listen to your sound source with several headphones simultaneously, you have to set your transmitter to multi-user operation. -
Page 28: Cleaning The Rs 160
Only use a dry and soft cloth to clean the product. Replacing the ear pads For reasons of hygiene, you should replace the earpads from time to time. Spare earpads are available from your Sennheiser dealer (see “Accessoires and spare parts” on page 30). ·... -
Page 29: If A Problem Occurs
If a problem occurs ... If a problem occurs ... Sound problems Problem Possible cause Possible solutions Page No sound Transmitter is/headphones Switch the 18/20 are switched off transmitter/ headphones on Headphones are muted Cancel the muting Jack plug is not properly Check the plug connected connection... - Page 30 If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at www.sennheiser.com.
-
Page 31: Accessories And Spare Part
Accessories and spare part Accessories and spare part Only use original Sennheiser accessories and spare parts, otherwise the product quality can be impaired or the product can be damaged. Cat. No. Accessory/spare part 504250 HDR 160 headphones 534480 Power supply unit with country adapters 534486 Stereo audio cable with two 3.5 mm jack plugs (2 m) -
Page 32: Specifications
Specifications Specifications RS 160 system Modulation MSK digital Carrier frequencies 2.4 – 2.48 GHz Range approx. 20 m in the open area Ambient temperature 32 °F to 104 °F (0 °C to 40 °C) TR 160 transmitter Audio connection 3.5 mm stereo jack socket Power consumption <... -
Page 33: Manufacturer Declarations
Manufacturer declarations Manufacturer declarations Warranty Sennheiser GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements •... - Page 34 • Consult the dealer or an experienced radio/TV technician for help. This class B digital apparatus complies with the Canadian ICES-003. Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment. RF Radiation Exposure Information...
- Page 35 Manufacturer declarations In compliance with: FCC ID: DMOTR160 FCC ID: DMOHDR160 Canada IC: 2099A-TR160 IC: 2099A-HDR160 Europe Australia/ New Zealand Singapore Trademarks The Kleer logo is a trademark of Kleer Inc. About ENERGY STAR ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S.
- Page 36 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany Publ. 08/09...
