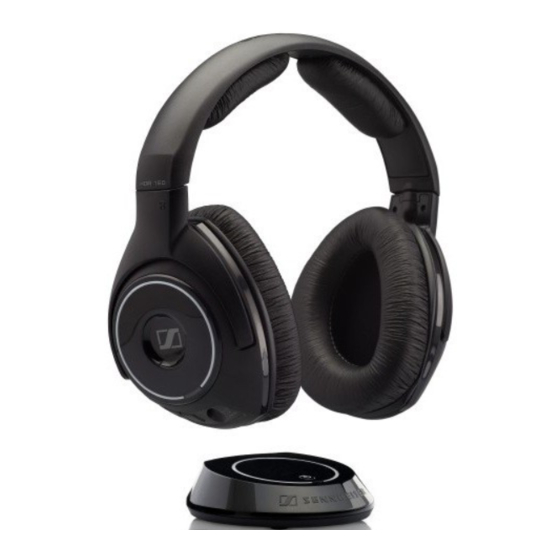

Sennheiser RS 160 - 08-09 Instruction Manual

Digital wireless system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Digital Wireless System
RS 160
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS 160 - 08-09 and is the answer not in the manual?

Questions and answers

Related Manuals for Sennheiser RS 160 - 08-09

Summary of Contents for Sennheiser RS 160 - 08-09

  • Page 1 Digital Wireless System RS 160 Instruction manual...

  • Page 2: Table Of Contents

    Contents Contents Important safety information ................2 The RS 160 digital RF headphone system ............4 Delivery includes ....................5 Product overview ....................6 Overview of the HDR 160 headphones ............. 6 Overview of the TR 160 transmitter ............7 Overview of the indicators and acoustic signals ........

  • Page 3: Important Safety Information

    • Only use the Sennheiser supplied power supply units. • To reduce the risk of fire or electric shock, do not use the product near water and do not expose it to rain or moisture.
  • Page 4 2, • using the product within the operating conditions and limitations described in this instruction manual. “Improper use” means using the product other than as described in this instruction manual, or under operating conditions which differ from those described herein.

  • Page 5: The Rs 160 Digital Rf Headphone System

    • Kleer’s uncompressed digital wireless transmission delivers CD-quality sound. • No set-up required – just plug and play. Simply connect the transmitter to your personal audio/video player, put on the headphones and turn it on! •...

  • Page 6: Delivery Includes

    1 power supply unit with country adapters 1 stereo audio cable with 3.5 mm jack plugs 1 DC cable (4.0 mm DC jack socket to 2 x 4.0 mm DC plug) 2 AAA size NiMH rechargeable batteries, 1.2 V 1 quick guide incl. CD ROM with detailed instruction manual (PDF file)

  • Page 7: Product Overview

    ² VOLUME – Battery compartments button ¶ Charging socket (DC 5V 0.5A) º Multi-function LED ´, you can switch the With the multi-function button headphones on/to standby mode, set the headphones to multi-user operation, mute the headphones and associate the headphones.

  • Page 8: Overview Of The Tr 160 Transmitter

    Multi-function button Multi-function LED Socket for power supply unit (DC 5V 0.5A) Audio input (AUDIO VOLUME control (– With the multi-function button , you can switch the transmitter on/to standby mode, set the transmitter to multi-user operation and associate the transmitter.

  • Page 9: Overview Of The Indicators And Acoustic Signals

    Product overview Overview of the indicators and acoustic signals Meaning of the pictograms for the different LEDs Status Meaning The LED is lit. The LED flashes once per second. The LED flashes twice every 5 seconds. Indicators on the headphones...
  • Page 10 Product overview Indicators on the transmitter Indicator Status Meaning Multi-function LED The signal of the sound source is too strong. The transmitter is in enrollment mode (searching for headphones to pair with). The transmitter is in association mode (exchanging device information with the headphones).

  • Page 11: Overview Of The Connection Stages

    Single-user and multi-user operation Single-user operation You can listen to your sound source via one pair of headphones. By default, the transmitter is set to single-user operation (see page 23). Multi-user operation In order to be able to listen to your sound source with several headphones simultaneously, you have to set your transmitter to multi-user operation (see page 26).

  • Page 12: Putting The Rs 160 Into Operation

    Putting the RS 160 into operation Putting the RS 160 into operation Setting up the transmitter Choose a suitable place near your sound source (e.g. TV, stereo or home cinema system). Do not place the transmitter close to metal objects such as shelf bars,...

  • Page 13: Connecting The Transmitter To A Sound Source

    Putting the RS 160 into operation Connecting the transmitter to a sound source You can connect the TR 160 transmitter to different sound sources, such as a TV, a DVD player or a stereo system. Switch your sound source off before connecting the transmitter.

  • Page 14: Powering The Transmitter

    For powering the TR 160 transmitter, you can use: • the supplied SSA-4P 5050F power supply unit for stationary use • rechargeable batteries (AA size, NiMH, 1.2 V, at least 1,300 mAh) for mobile use • standard batteries (AA size, 1.5 V) for mobile use...
  • Page 15 Inserting rechargeable batteries/standard batteries into the transmitter and changing them Power the TR 160 transmitter either with rechargeable batteries (AA size, NiMH, 1.2 Vat least 1,300 mAh) or standard batteries (AA size, 1.5 V). Open the battery compartment at the base of the transmitter as shown.

  • Page 16: Powering The Headphones

    For powering the headphones, you can use: • standard batteries (AAA size, 1.5 V) • rechargeable batteries (AAA size, NiMH, 1.2 V, 600 mAh) If you use rechargable batteries, you can charge them in the headphones using the charging cable (see next chapter).
  • Page 17 Only charge rechargeable batteries in your headphones. Charge the rechargeable batteries for at least 16 hours prior to first time use. Subsequent charging time is about half of the previous operating time. The operating time is up to 24 hours.

  • Page 18: Adjusting The Headband Of The Headphones

    Putting the RS 160 into operation Adjusting the headband of the headphones For good sound quality and best possible comfort, the headband has to be ³ ³ adjusted to properly fit your head. To do so, adjust the headband via its snap-in locking mechanism: ³...

  • Page 19: Using The Rs 160

    Using the RS 160 Using the RS 160 To switch the product on and to listen to your sound source, proceed as follows: Sequence of steps Page 1. Make sure that the rechargeable batteries are charged. 2. Switch your sound source on.

  • Page 20: Switching Transmitter Off

    If the headphones are outside the transmission range or switched off for more than 5 minutes, the transmitter automatically switches to standby mode. The multi-function LED goes off. In standby mode, the transmitter’s power consumption is very low so that it can remain connected to the mains.

  • Page 21: Switching The Headphones On And Off

    Press the multi-function button for approx. 1 second. º The multi-function LED goes off. The headphones are in standby mode. If there is no signal from the transmitter for more than 5 minutes, the headphones automatically switch to standby mode.

  • Page 22: Adjusting The Volume On The Headphones

    ² ¿ Press the VOLUME – button or the VOLUME + button repeatedly until the volume is adjusted to a comfortable and undistorted level. ² ¿ Vol - Vol + Vol - Vol + Muting the headphones ´ Briefly press the multi-function button to mute the headphones or to cancel the muting.

  • Page 23: Adjusting The Signal Of The Sound Source

    However, the signal of the sound source can be so strong that it can no longer be automatically adjusted. If the signal of the sound source is too strong, the multi-function LED the transmitter flashes or lights up red.

  • Page 24: Associating The Headphones To The Transmitter

    The headphones and the transmitter are already associated upon delivery. You only have to associate the headphones to the transmitter • if you want to use another pair of Kleer compatible headphones or • if the transmission between the headphones and the transmitter is disturbed by interferences in the vicinity.
  • Page 25 The multi-function LED of the transmitter flashes green. ´ After approx. 30 seconds, the headphones are paired with the transmitter and you can hear your sound source via the headphones. The multi- º function LED of the headphones and the multi-function LED of the transmitter flash green.
  • Page 26 Follow the steps in the previous chapter “Associating the headphones to the transmitter” on page 23. You can then only use the last headphones paired to listen to your sound source (single-user operation). To listen to your sound source with up to 4 headphones simultaneously: Set your transmitter to multi-user operation as described in the next chapter.

  • Page 27: Listening With Several Headphones Simultaneously

    Using the RS 160 Listening with several headphones simultaneously By default, the transmitter is set to single-user operation. In order to be able to listen to your sound source with several headphones simultaneously, you have to set your transmitter to multi-user operation.

  • Page 28: Cleaning The Rs 160

    Only use a dry and soft cloth to clean the product. Replacing the ear pads For reasons of hygiene, you should replace the earpads from time to time. Spare earpads are available from your Sennheiser dealer (see “Accessoires and spare parts” on page 30).

  • Page 29: If A Problem Occurs

    If a problem occurs ... If a problem occurs ... Sound problems Problem Possible cause Possible solutions Page No sound Transmitter is/headphones Switch the 18/20 are switched off transmitter/ headphones on Headphones are muted Cancel the muting Jack plug is not properly...
  • Page 30 If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at...

  • Page 31: Accessories And Spare Part

    534486 Stereo audio cable with two 3.5 mm jack plugs (2 m) 534479 DC cable (4.0 mm DC jack socket to 2 x 4.0 mm DC plug) 093778 Adapter (3.5 mm jack socket to ¼“ (6.3 mm) jack plug) 514267 Adapter (3.5 mm jack socket to 2 RCA plugs)

  • Page 32: Specifications

    (w/o rechargeable batteries) SSA-4P 5050F power supply unit Rated input 100 – 240 V~, 0.2 A, 50 – 60 Hz Rated output 5 V , 500 mA Operating temperature range 32 °F to 104 °F (0 °C to 40 °C)

  • Page 33: Manufacturer Declarations

    Manufacturer declarations Manufacturer declarations Warranty Sennheiser GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements •...
  • Page 34 Fax: +1 (860) 434 1759 declare the above device comply with the requirements of Federal Communications Commission. This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 35 Trademarks The Kleer logo is a trademark of Kleer Inc. About ENERGY STAR ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment.
  • Page 36 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany Publ. 08/09...
