T7 Plus Terminal
®
The Hypercom
epic (ePOS-infocommerce™) T7 Plus combines the flexibility of a full-featured,
smart-card ready (HyperSmart™) integrated POS terminal with the infrastructure to quickly and
cost-effectively integrate new applications. This combination makes the T7 Plus the simplest and
most innovative POS solution available today.
Note: Features on your model of T7Plus may vary from those shown in this installation guide.
Installation Procedures
Note: The following equipment warnings are for your safety and that of your equipment.
W
:
ARNING
• Do not use an ungrounded adapter, power adapter, power extender cable, or AC outlet.
• Do not disassemble the AC adapter. Only qualified technicians may service the adapter.
• The AC adapter is intended for indoor use only; do not expose to rain or snow.
• Do not immerse the AC adapter or the terminal in fluid.
• Ensure that the telphone line is disconnected when the unit is unplugged from the
AC power outlet.

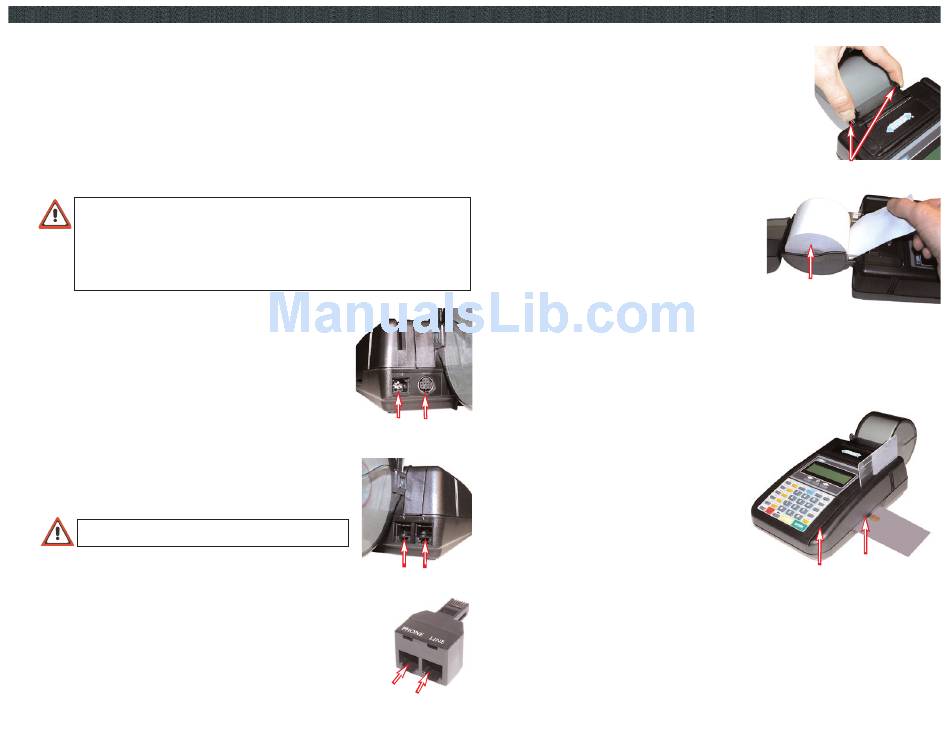

Powering Up the Terminal
Use the following procedure to power up the T7 Plus :
1. Connect the +24 VDC power cable from the AC adapter to the
three-pin terminal power socket, labeled PWR, on the back panel of
the T7 Plus . See Figure 1.
2. Plug the adapter into a grounded AC power outlet. When the power
is properly connected the terminal beeps twice then performs a
self-test routine.
Connecting the Telephone Line
Use the following procedure to connect a telephone line to the T7 Plus :
1. Insert the telephone cable shipped with the T7 Plus terminal into a
dedicated analog telephone outlet.
W
:
ARNING
DO NOT insert the telephone line into the PIN pad port.
2. Connect the other end of the telephone cable into the port labeled
LINE on the back panel of the T7 Plus terminal. See Figure 2.
The use of a different cable may result in improper operation.
Note: Ensure that the telephone line cable latches firmly into the jacks
on the T7 Plus terminal and wall receptacle.
Note: If connection to an extension telephone is needed, install a
Hypercom Line Splitter into the terminal port labeled LINE. Install
the line from the extension phone into the PHONE port on the
Splitter. Install the line from the wall receptacle into the LINE port.
See Figure 3. The terminal disconnects the PHONE port when a
transaction is being processed.
Setup Procedures
Use the following procedures to set up your T7 Plus for operation:
Loading Paper
Use the following procedure to load paper into the T7 Plus terminal:
Note: Use only thermal roll paper.
1. Squeeze the paper cover tabs and lift open the paper cover.
See Figure 4.
2. Place the paper roll into the holder so the paper feeds from
under the roll. Pull the end of the paper roll over the
printer. See Figure 5.
3. While holding the end of the paper roll, close the paper
cover. You will hear the paper cover click when properly
latched. See Figure 5.
4. Tear off the excess paper.
Figure 1
Using a Credit Card
A credit card can be swiped bi-directionally (either toward or away from you):
1. When holding the card, make sure the stripe is facing away from the body of the terminal
(toward your right and down).
2. Slide the card all the way though the long credit card
Power Socket
RS-232 Port
slot on the right-side of the terminal, starting on either
end, in one smooth motion. See Figure 6.
Figure 2
3. Follow standard operating procedures to complete the
transaction. See the T7Plus HyperWare Retail and
Restaurant Software Manual or contact your bank or
processor for more information.
Using a Smart Card (Optional)
PIN Pad Port
Line Port
Use the following procedure to insert a Smart Card:
1. When holding the smart card, make sure the metallic
Figure 3
contact is facing upward and toward the body of the terminal.
2. Insert the card into the Smart Card slot on the right side of the T7 Plus . See Figure 6.
Remove the Smart Card when the terminal screen instructs you to do so.
Phone Port
Line Port
Figure 4
Paper Cover Tabs
Figure 5
Paper Roll
Figure 6
Smart Card Slot
Credit Card Slot
