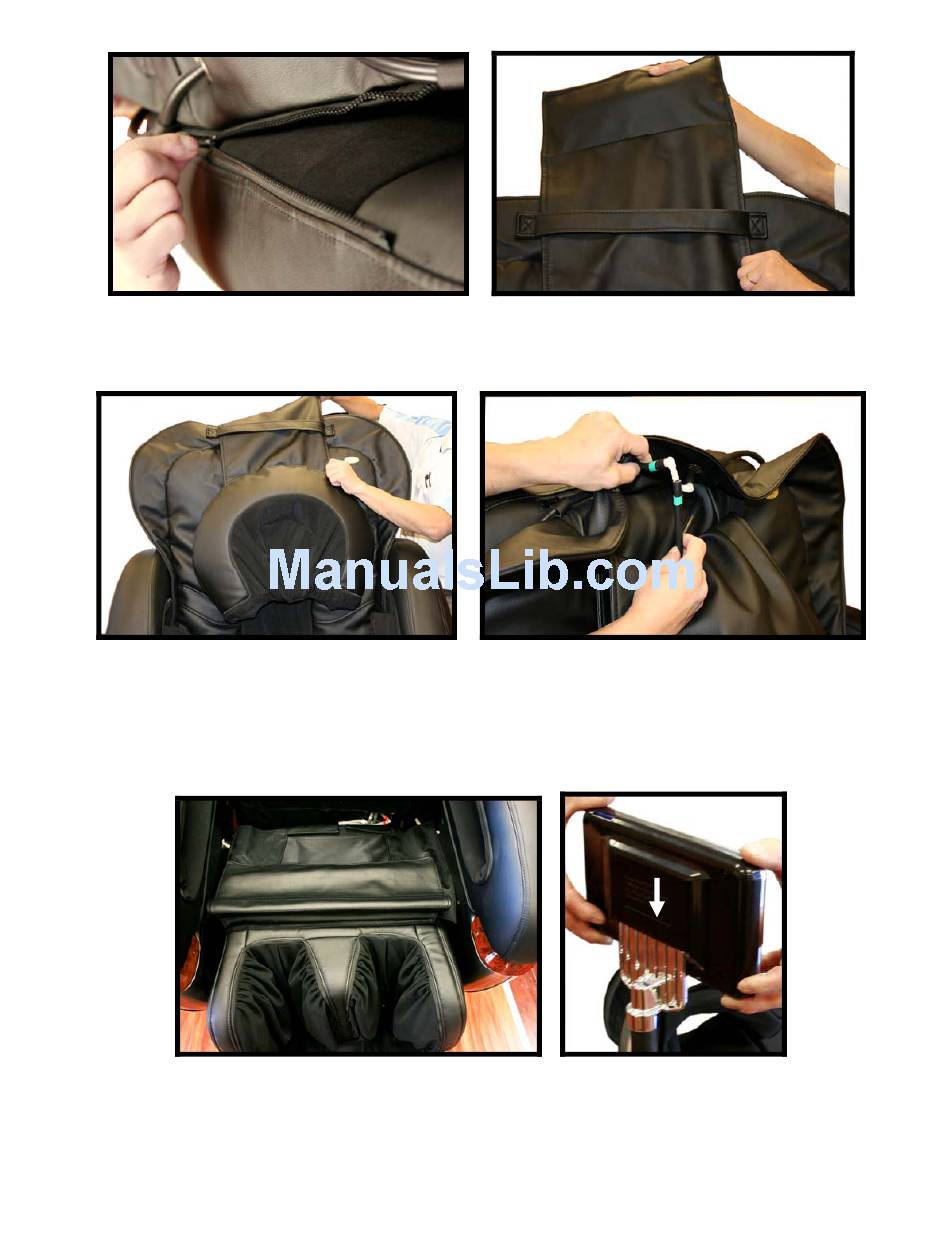

3. Fix the backrest cushion on the chair via the zipper and bottom Velcro on the seat (Fig. 14)
4. Put the pillow on the right position of backrest and secure (Fig. 15 and Fig. 16).
5. Finally connect the air pipes (Fig. 17). The color on air pipes should be matched.
6. Match the Velcro of foot massager windshield leather and seat leather Velcro (Fig. 18) and place seat cushion in proper
position.
Step 7: Install Controller
Place the controller on the handler as shown in Fig. 19.
Fig. 14
Fig. 16
Fig. 18
Fig. 15
Fig. 17
Fig. 19
12
