Luxul XBR-2300 User Manual
  1. Manuals
  2. Brands
  3. Luxul Manuals
  4. Network Router
  5. XBR-2300
  6. User manual

Luxul XBR-2300 User Manual

Xen enterprise dual-wan router
Hide thumbs Also See for XBR-2300:
Table of Contents

Advertisement

Quick Links

Use the XBR-2300 to:
Provide Core Functionality to Your Luxul Network
„
Protect Your Network with Advanced Firewall
„
and Security Features
Enable VPN Access
„
Optimize Network Applications with QoS
„
luxul.com

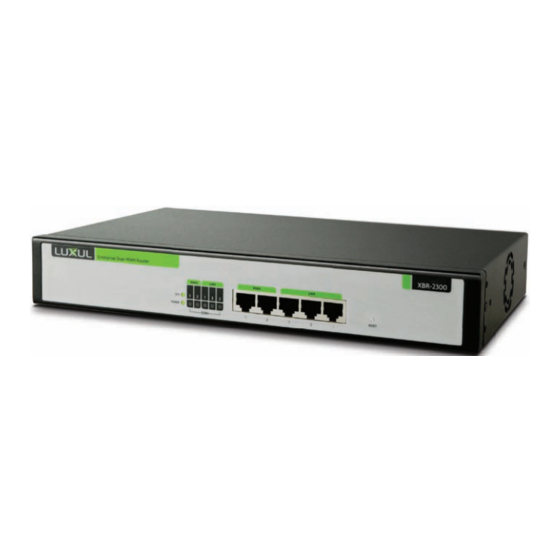

Enterprise Dual-WAN Router
Simply Connected

User Guide

XBR-2300
Luxul Xen™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XBR-2300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luxul XBR-2300

Summary of Contents for Luxul XBR-2300

  • Page 1: User Guide

    Simply Connected User Guide XBR-2300 Luxul Xen™ Enterprise Dual-WAN Router Use the XBR-2300 to: Provide Core Functionality to Your Luxul Network „ Protect Your Network with Advanced Firewall „ and Security Features Enable VPN Access „ Optimize Network Applications with QoS „...

  • Page 2: Table Of Contents

    WARNING!: Indicates a condition or procedure that could result in personal injury or equipment damage. CONTENTS 1: PRODUCT OVERVIEW 1.1 Product Introduction 1.2 Product Features 1.3 Product Specifi cations 1.4 Package Contents © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 3: Luxul.com | 357 South 670 West | Suite 160 | Lindon, Ut 84042 | P: 801-822-5450 | F: 801-822-5460 Luxul.com | 357 South 670 West | Suite 160 | Lindon, Ut 84042 | P: 801-822-5450 | F: 801-822-5460 3 3

    APPENDIX 1: COMMON COMMANDS luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 4: 1: Product Overview

    „ domain names Supports Dynamic Domain Name System or DDNS „ Provides system security logs and fl ow statistics „ XenSmart™ Web Management „ © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 5: Product Specifi Cations

    „ Support luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 6: Package Contents

    CD-ROM with User Documentation „ If any of the listed items are missing or damaged, please contact the reseller from whom you purchased for return/replacement. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 7: 2: Hardware Description

    | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 8: Rear Panel

    Web browser versions include Microsoft IE 6.0 and up, Safari 1.0 and up or Mozilla Firefox 1.0 and up. The Web browser is used to confi gure the XBR-2300. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 9: Before Connecting To The Network

    | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 10: Desktop Setup

    IP value be maintained. 4.5 Connecting a Client Device Connect the client device to one of the XBR-2300 LAN ports or to a switch that is connected to a XBR-2300 LAN port. The DHCP server on the XBR-2300 is confi g- ured by default.

  • Page 11: Verifying Connectivity

    11 11 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 12: Status

    „ assigned by the ISP DNS: The DNS server obtained from ISP (Dynamic only) or the Static DNS server „ assigned by the ISP © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 13 13 13 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...
  • Page 14 Displays the status of the XBR-2300s’ CPU Usage, Memory Usage, Uptime, System time, number of Connected Clients, Firmware Version, Bootcore Version and Hardware Version. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 15: Network

    15 15 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 16: Wan Settings

    Each WAN interface supports three connection modes: Static IP, Dynamic IP and PPPoE dial-up. Static IP: „ IP Address: Enter the Static WAN IP Address. If unknown, contact your ISP. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 17 17 17 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...
  • Page 18 MTU: MTU (Maximum Transmission Unit). System default is 1450 bytes. NOTE: Typically there is no need to change this. Improper MTU confi guration may lead to poor network performance. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 19 19 19 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...
  • Page 20 IP Addresses, Destination IP Addresses, Destination Ports, and Designate a WAN port. To activate this setting, check “Enabled” and click “Add to the corre- sponding list.” See below for details: © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 21: Dhcp Server

    21 21 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 22: Connected Clients

    To do so, fi rst enter the desired IP Address and MAC Address of the device. Then, click “Add” and “Save.” The fi nished confi guration should appear as shown in the image below. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 23: Access Control

    23 23 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 24: Wan Access Control

    5.3.8.2 WAN Access Control By default, only LAN users can access the XenSmart Web Interface portal. This function will enable remote access and control of the XBR-2300. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 25: Ethernet Settings

    25 25 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 26: Internet Access

    Use this feature by adding an IP Group Name, a Group Description, and suitable IP Address Range. The IP Group you create can then be used to manage Internet Access of the devices using those IP addresses. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 27 27 27 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 28: Client Filter

    For control of client device behavior we can create a Client Filter that will either allow or block Internet access to an IP Group during a specifi ed Schedule. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 29 29 29 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 30: Url Filter

    Enable: Enables or Disables the Filter „ Remark: Description of the Rule being created „ IP Group: The name of the desired IP Group „ © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 31: Bandwidth Settings

    31 31 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 32: Nat Settings

    This basically limits the number of websites a device can visit at any given time. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 33: Security

    33 33 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...
  • Page 34 The XBR-2300 can block the following primary types of attacks: Scan Attacks, DoS Attacks, Suspicious Packets, Packets Containing IP Options and Other Attacks (i.e. Shockwave, Sasser, and other Viruses). © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 35 35 35 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...
  • Page 36 135 bytes). This fi lter drops all packets with 135 bytes or more in the protocol type. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 37 37 37 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...
  • Page 38 Select Connected Clients in ARP List to manually add IP and MAC addresses. IP Address: Specifi es the IP address to be Bound. „ MAC Address: MAC addresses to be Bound „ © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 39: Advanced Settings

    39 39 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 40: Port Forwarding

    (the operating system needs to be integrated with or have Directx9.0 or higher). If UPnP is enabled, port forwarding information is automatically supplied at the request of any compatible application. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 41 41 41 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 42: Routing Table

    However, each port can have a different DDNS service provider and serve a different Domain Name. 5.6.5 Routing Table This page displays the Routing Table contents. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 43: Vpn

    43 43 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...
  • Page 44 There are three sections in the PPTP Server submenu: PPTP Server, Client Setting and Dial-in List. 5.6.2.1 PPTP Server The PPTP server supports the connection between the PPTP Client and the VPN Router. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 45 Example: You are traveling and/or working from a remote location and need access to a server at the offi ce or on your home network. The XBR-2300’ s VPN Server can be confi gured to allow access to the internal network while providing a secure encrypted connection.

  • Page 46: Monitor

    There are three submenus in the Monitor section: 5.8.1 Statistics 5.8.3 Syslog „ „ 5.8.2 Logs „ 5.8.1 Statistics Displays traffi c statistics of the XBR-2300 by connected device. © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 47: System Tools

    47 47 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 48: Time Settings

    Internet. If the automatic GMT option is selected, time can only be set af- ter the XBR-2300 has access to the Internet. Current time can also be set manually. Enable Network Time: System time is obtained automatically from the Internet „...

  • Page 49: Restore Defaults

    49 49 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 50: Logout

    (such as grain, dust, or metal powders). © Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 51: 7: Contact Luxul

    51 51 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460 luxul.com | 357 South 670 West | Suite 160 | Lindon, UT 84042 | p: 801-822-5450 | f: 801-822-5460...

  • Page 52: Appendix 1: Common Commands

    Information on this document supersedes all previous versions. Products and documents subject to change without notice. Products may be discontinued without notice. LUX-UG-XBR-2300 357 South 670 West | Suite 160 | Lindon, UT 84042 092111058 p: 801-822-5450 | f: 801-822-5460...
