Summary of Contents for Luxul Dual-Band AC3100
-

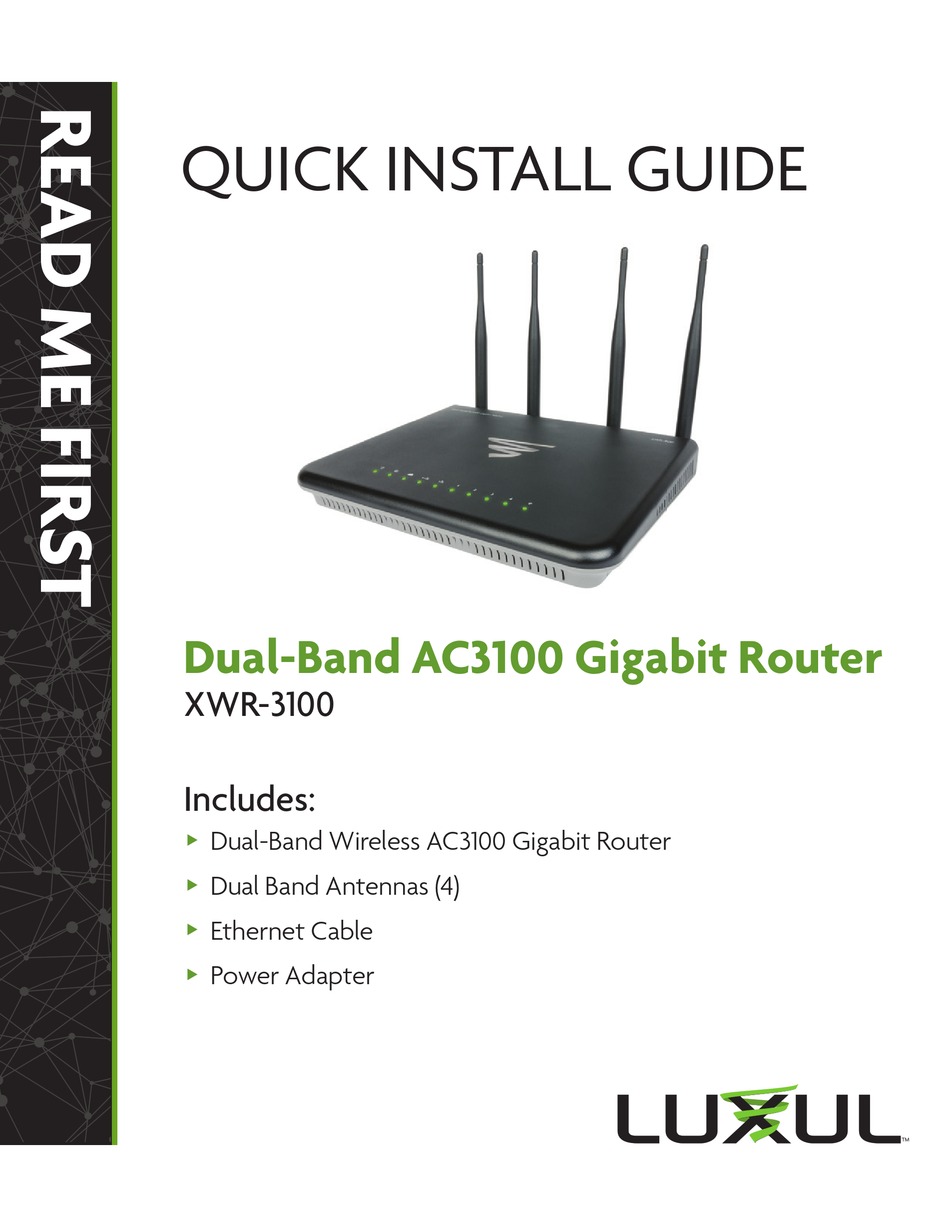

Page 1: Quick Install Guide
QUICK INSTALL GUIDE Dual-Band AC3100 Gigabit Router XWR-3100 Includes: Dual-Band Wireless AC3100 Gigabit Router Dual Band Antennas (4) Ethernet Cable Power Adapter ... -
Page 2: Physical Installation
XWR-3100 is confi gured by default to create a 192.168.0.x network. Both the default LAN IP address and subnet scheme can be changed. However for hassle-free plug-and-play installation of other Luxul hardware, we recom- mend you use the default IP address if possible. -
Page 3: Getting Connected
192.168.0.X range, then set the Gateway/Router address to 192.168.0.1 (the default IP address of the XWR-3100). NOTE: Visit http://luxul.com/ip-addressing to learn more about changing your computer’s IP address and getting connected. Access and Setup... -
Page 4: Advanced Configuration
XWR-3100 for seamless roaming. Doing so will result in standalone AP that the XWR-3100 will not fi nd/manage. XWR-3100 as a Controller Other Advanced Configuration For more information on confi guring advanced features such as DDNS, VPN, etc., refer to the support resources at luxul.com. -
Page 5: Hardware Operation
Hardware Operation XWR-3100 Front Panel LED Indicators Indicator Name Status Function 5GHz A 5GHz wireless network is broadcasting. 2.4GHz A 2.4GHz network is broadcasting. 1-4 LED A device is connected to the corresponding Ethernet port. FLASHING Data packets are being transmitted to the connected device. -
Page 6: Front Panel
Front Panel XWR-3100 Front Panel View Rear Panel XWR-3100 Rear Panel View... - Page 7 LAN 1 - 4 Ports: (4) green RJ-45 Ethernet ports for connecting to the local network. NOTE: A Luxul switch is recommended in conjunction with the XWR-3100 to increase the number of local ports available. Reset Button: Used to restore factory default settings.
-
Page 8: Technical Support
Luxul product. © Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
