Luxul Epic 4 ABR-4500 - Multi-WAN Gigabit Router Quick Install Guide

Includes

• Multi-WAN Gigabit Router
• Rack Mount Kit
• Rubber Feet
• Power Cord

Setap and Configuration

Physical Installation

The router can be rack-mounted or used as a desktop router. Install the router in a stable/safe place to avoid any possible damage. Make sure there is adequate space around the router for ventilation and proper heat dissipation. Avoid placement in direct sunlight. Do not place heavy articles on the router and verify the ground connection of the outlet is functioning properly.

Desktop/Shelf Installation

For desktop/shelf installation, attach the four rubber feet to the corner indentations on the bottom of the router, then place the router on a solid, level platform.

Rack Installation

Use the included L brackets for convenient installation in a 19-inch server or AV rack. As shown below, use four screws to attach the L-shaped brackets on either sides of the router, and mount the router horizontally in the rack. Use your desired hardware to affix the router supports to the rack.

Connecting Ethernet and Power

Before installing the router, test the Internet connection to verify that it is functioning properly. Once Internet access is confirmed to be working, follow the steps below for installation and configuration.

Connecting Ethernet

Luxul recommends Category-5, super Category-5 or Category-6 unshielded twisted pair (CAT5/CAT5e/CAT6 UTP). To ensure best performance and stable data transmission at 1000 Mbps, use Category-6 shielded twisted pair.

1. Connect the WAN: Connect the Internet cable from a telco/ISP modem/router to the dedicated WAN 1 port on the Epic 4.
2. Connect the LAN: Connect a cable from the dedicated LAN 1 port on the Epic 4 to a switch, access point, or computer.

For best performance, and to maximize available ports, Luxul recommends connecting all LAN devices to a Luxul switch, then connecting that switch to the Epic 4 LAN port via a single Ethernet cable.

NOTE: WAN 1 and LAN 1-4 are configured by default. The Epic 4 must be configured to provide additional WAN ports.

NOTE: Connect all LAN devices to a Luxul switch, then connect that switch to the Epic 4 for best results.

Connecting Power

Use the included power cable to connect the Epic 4 to a surge-protected outlet. The AC input socket and power switch are on the rear panel. The built-in power supply supports 100~240VAC at 50/60Hz.

Access and Setup

Default IP Address

The Epic 5's default IP address is 192.168.0.1. This can be modified, however, we recommend you retain the default IP address if possible for hassle-free installation of other Luxul products.

NOTE: In the event another device on your network shares the 192.168.0.1 address, you'll need to reassign the device's IP address or remove it from the network.

Connecting a Client Device

Connect a client device to one of the router LAN ports or to a switch that is connected to a router LAN port. The DHCP server on the router is configured by default. If your client device is set to obtain an address automatically, no further configuration is required and you're ready to log in.

Note: Visit http://luxul.com/ip-addressing to learn more about changing your computer's IP address and getting connected.

Logging In

To access the router web configuration, open your web browser and enter the router's default 192.168.0.1 IP address in the address field. Log in to the router using the default user name and password:

Default IP: 192.168.0.1
Username: admin
Password: admin

Select the menu items on the left to view and/or modify the configuration. For information on configuring the Epic 5 and routers in general, review the Support Resources at luxul.com.

Hardware Operation

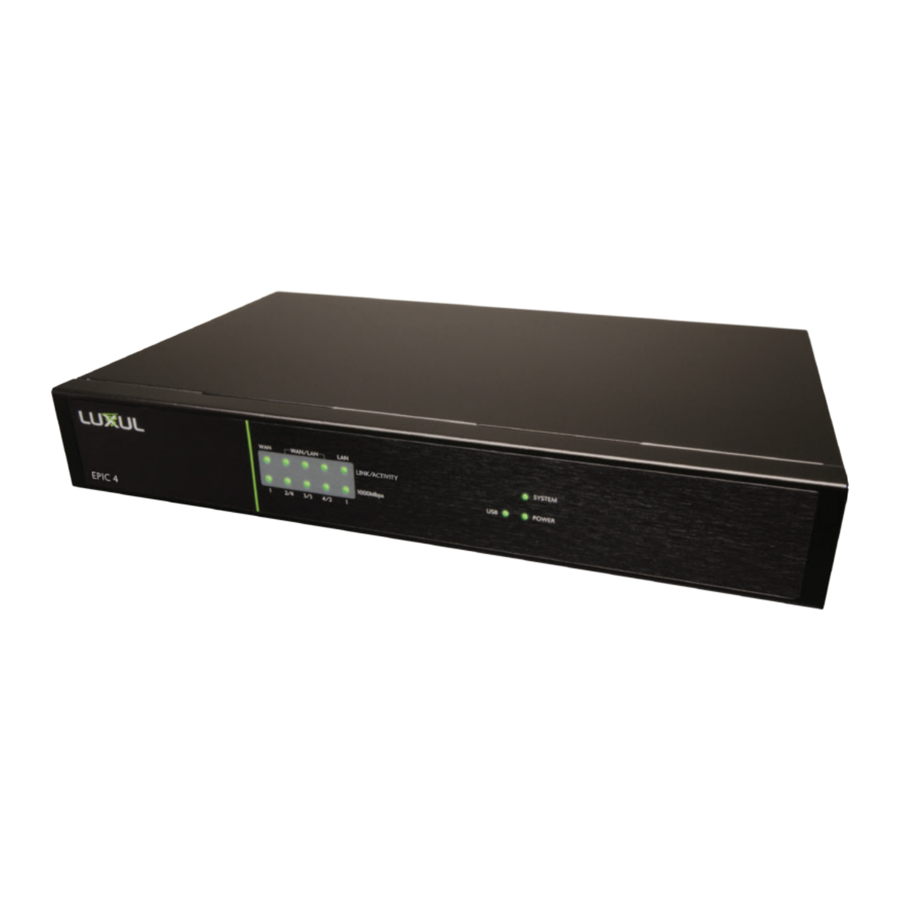

The front panel of the router features Power, System and USB LEDs, and port status indicators for each of the router's five built-in ports.

The rear panel of the router features five RJ-45 Ethernet ports: A single dedicated WAN port, a dedicated LAN port, and three more ports which can be configured as either WAN or LAN ports. Using the dedicated WAN port along with all three shared WAN/LAN ports, the router can be connected to up to four independent Internet connections simultaneously.

The rear panel also features a power switch and socket, recessed Reset button, and a switch for selecting blue or green front-panel LED colors to match other equipment in an audio/video rack. There is also a USB 3.0 port; plug a USB flash drive or hard drive into the USB port and configure the built-in file/DLNA server to serve files to LAN-connected devices.

Front Panel

Back Panel

Reset Button

The Reset button (located on the rear panel) can be used to reset (reboot) the router, or to restore the router factory default settings.

• To Reboot the Router: With the router powered on, press and release the Reset button.

  Do not hold the button for more than a second. Doing so could erase all settings and restore factory defaults.

• To Restore the Default Settings: With the router powered on, press and hold the Reset button for 15 seconds, then release the button. The router automatically restores factory default settings. A factory reset may take approximately a minute to complete. A successful factory reset is indicated by all of the port LEDs flashing once. When the System LED begins to flash, the unit is ready.

  Restoring default settings will remove any/all custom configuration.
