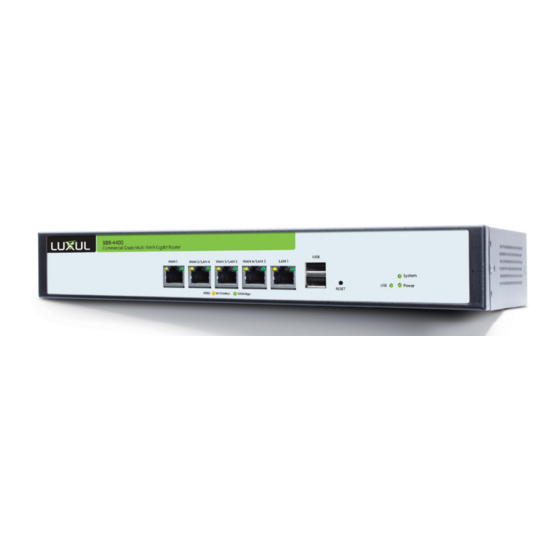

Luxul XBR-4400 Quick Install Manual
  1. Manuals
  2. Brands
  3. Luxul Manuals
  4. Network Router
  5. XBR-4400
  6. Quick install manual

Luxul XBR-4400 Quick Install Manual

Commercial grade multi-wan gigabit router
Hide thumbs Also See for XBR-4400:
Table of Contents

Advertisement

Quick Links

See also: User Manual

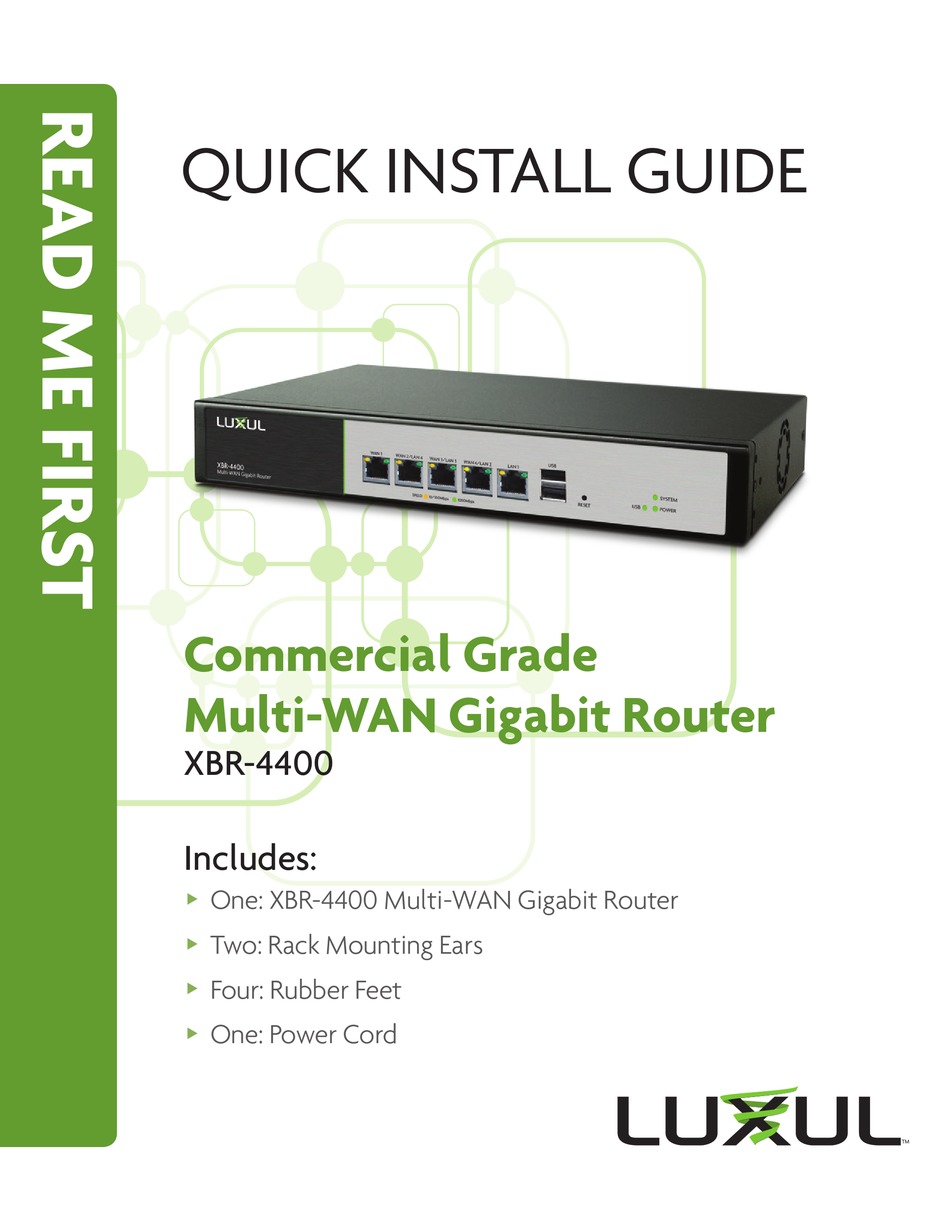

QUICK INSTALL GUIDE

Commercial Grade
Multi-WAN Gigabit Router
XBR-4400
Includes:
One:„XBR-4400„Multi-WAN„Gigabit„Router„
„
„
Two:„Rack„Mounting„Ears
„
„
Four:„Rubber„Feet
„
„
One:„Power„Cord
„
„

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XBR-4400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luxul XBR-4400

Summary of Contents for Luxul XBR-4400

  • Page 1: Quick Install Guide

    QUICK INSTALL GUIDE Commercial Grade Multi-WAN Gigabit Router XBR-4400 Includes: One:„XBR-4400„Multi-WAN„Gigabit„Router„ „ „ Two:„Rack„Mounting„Ears „ „ Four:„Rubber„Feet „ „ One:„Power„Cord „ „...

  • Page 2: Setup And Configuration

    SETUP AND CONFIGURATION Physical Installation The„XBR-4400„can„be„rack-mounted„or„used„as„a„desktop„router.„Install„the„ XBR-4400„in„a„stable/safe„place„to„avoid„any„possible„damage.„Make„sure„ there„is„adequate„space„around„the„XBR-4400„for„ventilation„and„proper„„ heat„dissipation.„Avoid„placement„in„direct„sunlight.„Do„not„place„heavy„ articles„on„the„XBR-4400„and„verify„the„ground„connection„of„the„outlet„„ is„functioning„properly. Desktop/Shelf Installation For„desktop/shelf„installation,„attach„the„four„rubber„feet„to„the„corner„ indentations„on„the„bottom„of„the„XBR-4400,„then„place„the„router„on„„ a„solid,„level„platform. Rack Installation Use„the„included„L„brackets„for„convenient„installation„in„a„19-inch„server„or„ AV„rack.„As„shown„below,„use„four„screws„to„attach„the„L-shaped„brackets„on„ either„sides„of„the„XBR-4400,„and„mount„the„switch„horizontally„in„the„rack.„ Use„your„desired„hardware„to„affix„the„router„supports„to„the„rack. Install Brackets for Rack-Mounting Attach Feet for Desktop Installation...

  • Page 3: Connecting Ethernet

    For„best„performance,„and„to„maximize„available„ports,„Luxul„recommends„ connecting„all„LAN„devices„to„a„Luxul„switch,„then„connecting„that„switch„ to„the„XBR-4400„LAN„port„via„a„single„Ethernet„cable. NOTE: WAN 1 and LAN 1-4 are configured by default. The XBR-4400 must be configured to provide additional WAN ports NOTE: Connect all LAN devices to a Luxul switch, then connect that switch to the XBR-4400 for best results.

  • Page 4: Default Ip Address

    Default IP Address The„XBR-4400’s„default„IP„address„is„192.168.0.1.„This„can„be„modified,„ however,„we„recommend„you„retain„the„default„IP„address„if„possible„„ for„hassle-free„installation„of„other„Luxul„products. NOTE: In the event another device on your network shares the 192.168.0.1 address, you’ll need to temporarily reassign or remove that device while you configure the XBR-4400. Connecting a Client Device Connect„a„client„device„to„one„of„the„XBR-4400„LAN„ports„or„to„a„switch„ that„is„connected„to„an„XBR-4400„LAN„port.„The„DHCP„server„on„the„ XBR-4400„is„configured„by„default.„If„your„client„device„is„set„to„obtain„an„ address„automatically,„no„further„configuration„is„required„and„you„may„...

  • Page 5: Hardware Operation

    Logging In To„access„the„XBR-4400„web„configuration,„open„your„web„browser„and„enter„ the„router’ s „default„192.168.0.1„IP„address„in„the„address„field.„Log„in„to„the„ router„using„the„default„user„name„and„password: Default IP: 192.168.0.1 „ Username: admin Password: admin Select„the„menu„items„on„the„left„to„view„and/or„modify„the„configuration.„„ For„information„on„configuring„the„XBR-4400„and„routers„in„general,„review„„ the„Support„Resources„at„luxul.com. Hardware Operation The„front„panel„of„the„XBR-4400„features„Power,„System„and„USB„LEDs,„and„ port„status„indicators„for„each„of„the„router’ s „five„built-in„ports. The„front„panel„of„the„XBR-4400„features„five„RJ-45„Ethernet„ports:„A„single„ dedicated„WAN„port,„a„dedicated„LAN„port,„and„three„more„ports„which„can„ be„configured„as„either„WAN„or„LAN„ports.„Using„the„dedicated„WAN„port„ along„with„all„three„shared„WAN/LAN„ports,„the„XBR-4400„can„be„connected„ to„up„to„four„independent„Internet„connections„simultaneously.„The„front„ panel„also„features„a„recessed„Reset„button„and„a„pair„of„USB„ports„to„support„ future„expandability. The„rear„panel„features„a„power„switch„and„power„socket.

  • Page 6: Front Panel

    The„Reset„button„(located„on„the„front„panel)„can„be„used„to„reset„(reboot)„the„ switch,„or„to„restore„the„switch„factory„default„settings. To Reset the Router:„With„the„XBR-4400„powered„on,„press„and„release„„ „ the„Reset„button. CAUTION: Do not hold the button for more than a second. Doing so could erase all settings and restore factory defaults. To Restore the Default Settings:„With„the„XBR-4400„powered„on,„press„„ „ and„hold„the„Reset„button„for„15„seconds,„then„release„the„button.„The„ switch„automatically„restores„factory„default„settings.„A„factory„reset„may„ take„approximately„a„minute„to„complete.„A„successful„factory„reset„is„ indicated„by„all„of„the„port„LEDs„flashing„once.„When„the„System„LED„begins„ to„flash,„the„unit„is„ready.
  • Page 7 LED Indicators Indicator State Description POWER XBR-4400„is„powered„and„switched„on. SYSTEM Flashing XBR-4400„is„functioning. XBR-4400„is„booting. XBR-4400„is„not„functioning„correctly. A„USB„device„is„connected. WAN/ Top„Row„On 10/100„Mbps„device„connected. LAN„ Bottom„Row„On 1000„Mbps„device„connected. Front Flashing Data„packets„are„being„transferred. WAN/ Yellow„On „10/100„Mbps„device„connected. LAN„ Green„On 1000„Mbps„device„connected. Rear Flashing Data„packets„are„being„transferred.

  • Page 8: Legal And Regulatory Information

    LEGAL AND REGULATORY INFORMATION FCC Compliance This„device„complies„with„Part„15„of„the„FCC„Rules.„Operation„is„subject„to„ the„following„two„conditions:„(1)„this„device„may„not„cause„harmful„inter- ference,„and„(2)„this„device„must„accept„any„interference„received,„including„ interference„that„may„cause„undesired„operation. Hereby,„Luxul,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„ 84020,„declares„that„this„Luxul„XBR-4400„is„in„compliance„with„the„ essential„requirements„and„other„relevant„provisions„of„Directive„ 1995/5/EC. For„a„copy„of„this„report„send„a„self„addressed„stamped„envelope„„ to:„Luxul„CE,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„84020. Industry„Canada„(RSS-Gen„Issue„4) CAN„ICES-3(B)/NMB-3(B)„ Sales Technical Support P:„801-822-5450„ P:„801-822-5450„Option„3„ E:„sales@luxul.com E:„support@luxul.com ©„2015„„Luxul.„All„Rights„Reserved. Copyright„and„Trademark„Notices No„part„of„this„document„may„be„modified„or„adapted„in„any„way,„for„any„purposes„without„permission„ in„writing„from„Luxul.„The„material„in„this„document„is„subject„to„change„without„notice.„Luxul„reserves„ the„right„to„make„changes„to„any„product„to„improve„reliability,„function,„or„design.„No„license„is„granted,„ either„expressly„or„by„implication„or„otherwise„under„any„Luxul„intellectual„property„rights.„An„implied„ license„only„exists„for„equipment,„circuits„and„subsystems„contained„in„this„or„any„Luxul„product. ©„Copyright„2015„Luxul.„All„rights„reserved.„The„name„Luxul,„the„Luxul„logo,„the„Luxul„logo„mark„and„ Simply„Connected„are„all„trademarks„and„or„registered„trademarks„of„Luxul„Wireless,„Inc.„All„other„ trademarks„and„registered„trademarks„are„property„of„their„respective„holders. LUX-QIG-XBR-4400„12181510...
