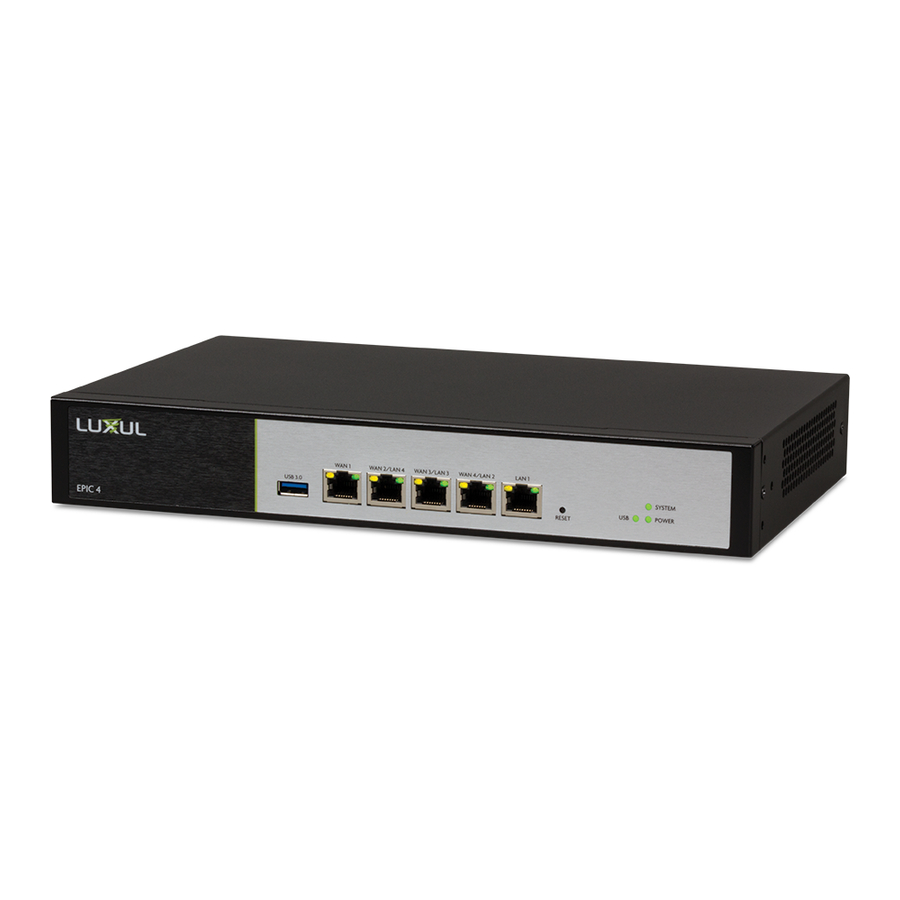

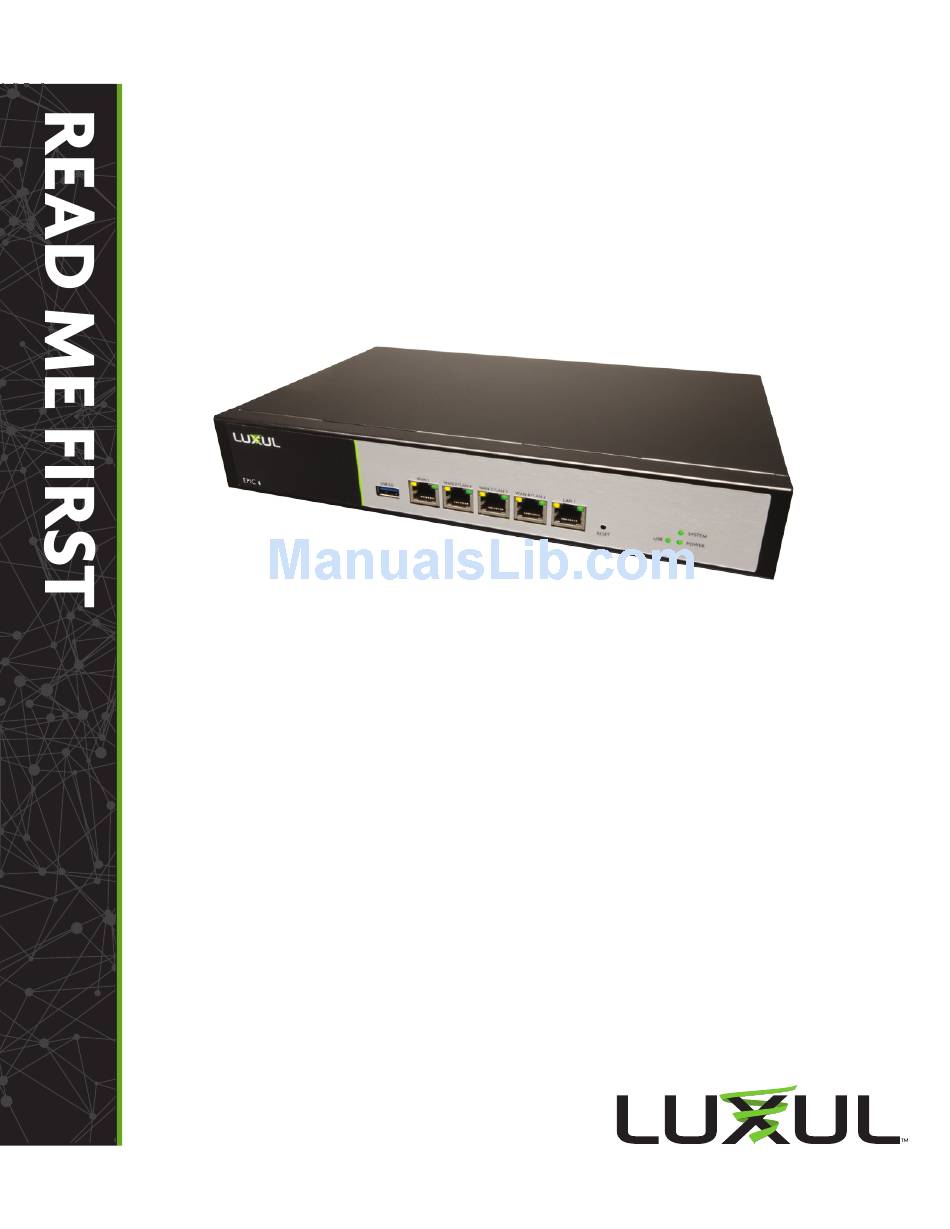

- Page 1 QUICK INSTALL GUIDE Epic 4 Multi-WAN Gigabit Router XBR-4500 Includes: Multi-WAN Gigabit Router „ Rack Mounting Ears (2) „ Rubber Feet (4) „ Power Cord „...
- Page 2 SETUP AND CONFIGURATION Physical Installation The Epic 4 can be rack-mounted or used as a desktop router. Install it in a stable/safe place to avoid any possible damage. Make sure there is adequate space around the router for ventilation and proper heat dissipation.
- Page 3 For best performance, and to maximize available ports, Luxul recommends connecting all LAN devices to a Luxul switch, then connecting that switch to the Epic 4 LAN port via a single Ethernet cable.
- Page 4 Access and Setup Default IP Address The Epic 4’s default IP address is 192.168.0.1. This can be modified, however, we recommend you retain the default IP address if possible for hassle-free installation of other Luxul products. NOTE: In the event another device on your network shares the 192.168.0.1 address, you’ll need to temporarily reassign or...
- Page 5 Select the menu items on the left to view and/or modify the configuration. For information on configuring this router and routers in general, review the support resources at luxul.com. Hardware Operation The front panel of the router features Power, System and USB LEDs, and port status indicators for each of the router’s five built-in ports.
- Page 6 Front Panel Reset Button The Reset button (located on the front panel) can be used to reset (reboot) the switch, or to restore the switch factory default settings. To Reset the Router: With the router powered on, press and release the Reset button.
- Page 7 LED Indicators Indicator State Description POWER Router is powered and switched on. SYSTEM Flashing Router is functioning. Router is booting. Router is not functioning correctly. A USB device is connected. WAN/ Yellow On/ 1000 Mbps operation. Green On Yellow On/ 10/100 Mbps operation.
- Page 8 Luxul product. © Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
