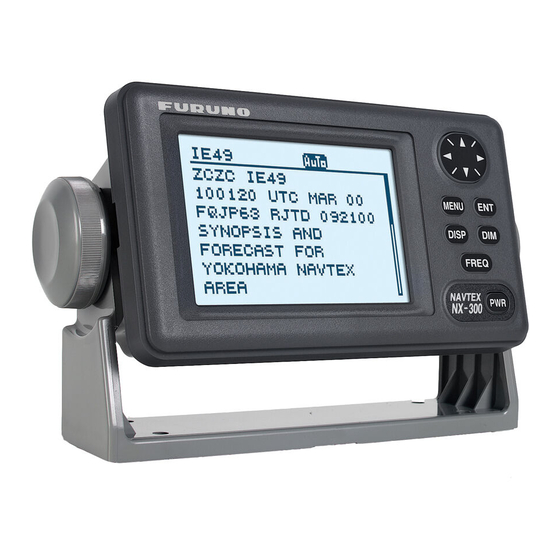

Navtex receiver
Hide thumbs Also See for NX-300:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
NAVTEX RECEIVER
NX-300
www.Busse-Yachtshop.de
email: info@busse-yachtshop.de

Advertisement

Table of Contents
loading

Related Manuals for Furuno NX-300

Summary of Contents for Furuno NX-300

  • Page 1 NAVTEX RECEIVER NX-300 www.Busse-Yachtshop.de email: info@busse-yachtshop.de...
  • Page 2 *00080900001* *00080900001* *00080900001* *00080900001* ( ( YOSH YOSH ) ) NX-300 NX-300 * 0 0 0 8 0 9 0 0 0 0 1 * * 0 0 0 8 0 9 0 0 0 0 1 * *OME56290H00* *OME56290H00*...
  • Page 3 SAFETY INSTRUCTIONS Safety Instructions for the Operator WARNING CAUTION Do not open the cover of Keep heater away from equipment. the equipment. A heater can melt the equipment's power Only qualified personnel cord, which can cause fire or electrical should work inside the shock.
  • Page 4 Serious injury or death can result if the distances to prevent interference to a power is not turned off, or is applied while magnetic compass: the equipment is being installed. Standard Steering compass compass 0.5 m 0.3 m NX-300 www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 5: Table Of Contents

    CONTENTS FOREWORD........................v A Word to NX-300 Owners ........................v Features ............................vi SYSTEM CONFIGURATION ..................vii EQUIPMENT LISTS ....................viii 1. PRINCIPLE OF NAVTEX SYSTEM................ 1-1 1.1 How NAVTEX Works.......................1-1 1.2 NAVTEX System Operation.....................1-1 1.3 Message Format........................1-2 1.4 Display Indications ........................1-3 1.5 NAVTEX Station Map ......................1-4...
  • Page 6 3.5 Delete All Messages ........................3-4 3.6 User Display of Navigation Data....................3-4 4. OTHER FUNCTIONS ..................... 4-1 4.1 DEMO Mode ..........................4-1 4.2 VIEW Mode..........................4-1 4.3 All Clear ............................4-1 4.4 Changing Received Message Log Window ..................4-2 5. MAINTENANCE & TROUBLESHOOTING............. 5-1 5.1 Maintenance ..........................5-1 5.2 Diagnostic Test ..........................5-1 5.3 When the Battery Icon Appears....................5-2 5.4 Replacement of Fuse........................5-3...

  • Page 7: Foreword

    Our extensive global network of agents and dealers furthers this dedication to excellence. The NX-300 is just one of the many FURUNO developments in the field of marine radio communication. The NX-300 provides cost-effective price, high sensitivity and simple operation in one compact and light-weight unit.

  • Page 8: Features

    The service range of a NAVTEX station is typically 200-400 nautical miles. A NAVTEX station normally broadcasts every 4 hours. The NAVTEX message is relevant for all types and sizes of vessels. The NX-300 is shipped from the factory equipped to receive 7 specific types of NAVTEX messages from all NAVTEX stations.

  • Page 9: System Configuration

    SYSTEM CONFIGURATION H-field ANTENNA UNIT NX-3H-D Antenna Cable (10 m) NAVTEX RECEIVER NX-300-D FURUNO GPS navigator MENU DISP FREQ Personal Computer Power Cable (2 m) 12-24 VDC NX-300 System configuration www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 10: Equipment Lists

    EQUIPMENT LISTS Standard supply Name Type Remarks Including hanger and knob bolts NAVTEX Reveiver NX-300-D Antenna Unit NX-3H-D H-field type with 10 m cable Installation Materials Power/Data cable (Type: MJ-A7SPF0005-020, Code No.: 000-139-384) 1 set Tapping screw (4 pcs., for fixing NAVTEX receiver, Type: 5x20, Code No.: 000-802-081)

  • Page 11: Principle Of Navtex System

    1. PRINCIPLE OF NAVTEX SYSTEM How NAVTEX Works There are many types of navigational and meteorological information available on radio, such as NAVAREA, HYDROPAC, etc. However, these systems rely heavily upon the operator's experience and skill in tuning the radio and interpreting messages. In addition, constant monitoring to pick up wanted information among a vast volume of messages is not practical with a limited radio staff.

  • Page 12: Message Format

    1.3 Message Format For automatic identification of messages, each message starts with eight control characters, called "Header codes". The first four characters are always "ZCZC" and common to all messages. This part is used for message synchronization. The latter four characters are designated as b1, b2, b3 and b4 to indicate origin, category and serial number of the message.

  • Page 13: Display Indications

    Display Indications NEW: Displayed when AUTO: Displayed when you SAR: Displayed when message is displayed for select AUTO mode in message type D is the first time. STATION SELECTION. displayed. Rx: Lights when message is being received. SAR receiving: Lights (and the alarm sounds) when message type D is being received.

  • Page 14: Navtex Station Map

    NAVTEX Station Map www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 15: Navtex Station List

    NAVTEX Station List 518kHz 490kHz area Country Station Latitude Longitude Belgium Oostende 51 11N 02 48E Estonia Tallinn 59 30N 24 30E Iceland Reykjavik Radio 64 05N 21 51W Ireland Valencia 51 56N 10 21W Malin Head 55 22N 07 21W Netherlands Netherlands Coast Guard 52 06N...
  • Page 16 518kHz 490kHz area Country Station Latitude Longitude Bermuda(UK) Bermuda 32 23N 64 41W Canada Sept Iles 50 12N 66 07W Prescott 44 56N 81 14W St. Johns 47 37N 52 40W Thunder Bay 48 34N 88 39W Sydney, Nova Scotia 46 11N 59 54W Yarmouth...
  • Page 17 518kHz 490kHz area Country Station Latitude Longitude China Sanya 18 15N 109 30E Guangzhou 23 09N 113 29E Fuzhou 26 02N 119 18E Shanghai 31 07N 121 33E Dalian 38 51N 121 31E Indonesia Jayapura 02 31S 140 43E Ambon 03 42S 128 12E Makassar...
  • Page 18 518kHz 490kHz area Country Station Latitude Longitude Chile Antofagasta 23 39S 70 25W Valparaiso 32 48S 71 29W Talcahuano 36 43S 73 06W Puerto Montt 41 30S 72 58W Punta Arenas 53 12S 70 56W Isla de Pascua 27 09S 109 25W Peru Paita...

  • Page 19: Operation

    2. OPERATION 2.1 Control Description All operation of the NX-300 is carried out with the controls on the front panel of the display unit. FURUNO MENU DISP Omnipad • Shifts cursor and display. • Selects items on menus. Opens menu or Removing the hard cover Registers items on menus.

  • Page 20: Adjusting Dimmer And Contrast

    2.4 Menu Operation Overview The menu allows you to custom tailor the NX-300 according to your needs. You can select which categories of message you wish to receive, specify which data to display, etc.

  • Page 21: Selecting Stations

    4. Press ! or " to select menu item and press the [ENT] key. For example, select RCV ALARM. Corresponding option menu appears. Figure 2-7 ON/OFF window 5. Press ! or " to select option desired. 6. Press the [ENT] key to resister your selection. 7 Press the [MENU] key once to return to the menu or twice to quit the menu.

  • Page 22: Selecting Messages

    Press ! or " to select RECEIVE or IGNORE depending on whether you want to select or deselect the station. Press the [ENT] key. Repeat steps b) to e) to select or deselect other stations. Press the [MENU] key or [DISP] key to close the STATION SELECTION menu. Selecting Messages Press the [MENU] key to open the main menu.

  • Page 23: Setting Functions (Functions Menu)

    (Total number of characters includes space, line feed, carriage returns, etc.) When the character error rate is within the percentage you set (0-39%), the NX-300 displays the message and stores it. When it exceeds the percentage you set, the NX-300 neither displays nor stores the message.
  • Page 24 SCROLLING: This menu item lets you select how to scroll the message display. The default setting is AUTO-SLOW. AUTO-SLOW: Long press of ! or " scrolls line-by-line slowly automatically. Touch and release " to scroll manually. AUTO-FAST: Long press of ! or " scrolls line-by-line automatically, faster than AUTO- SLOW.
  • Page 25 Set up the computer to receive data. Messages are downloaded to a PC character by character during reception. To download all messages saved in NX-300, do the following; Press the [MENU] key to open the main menu. Press ! or " to select FUNCTIONS.
  • Page 26 Note1: No message is received during downloading. Note2: When a PC or a serial printer is connected to the NX-300, received messages are displayed on a PC or printed on a serial printer but not displayed or saved to the NX-300 in the following cases;...

  • Page 27: Selecting Language

    2.9 Display Messages The NX-300 automatically saves and stores up to 132 received messages (However, the memory capacity is limited to 28,000 characters). If memory of the NX-300 is full, messages are deleted on order of time. 1. Press the [DISP] key to show the received messages log. Messages (numbers) are arranged in the order received from latest to earliest, Left to right.

  • Page 28: Sample Messages

    2.10 Sample Messages When message is displayed, press ! or " to scroll message and press # or $ to display the other message. When the oldest or newest message is displayed, the beep sounds. ID no. Display indications Start code (sync) Scroll bar Main message Press "...

  • Page 29: Displaying Navigation Data

    2.11 Displaying Navigation Data With navigation data input the NX-300 can display navigation data, in addition to its primary function. 1. Press the [DISP] key to display the receiving messages log. 2. Press the [DISP] key again to display navigation data.

  • Page 30: Selecting Receive Frequency

    2.12 Selecting Receive Frequency 1. Press the [FREQ] key to show the frequency window. (Default setting is 518 kHz) Figure 2-24 Frequency window 2. Press to select receive frequency as appropriate. 3. Press the [ENT] key to close the frequency window. 2-12 www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 31: System Menu

    3. SYSTEM MENU Units of Measurement When navigational data is fed to the NX-300, you can select units of distance and speed to use. Distance/speed can be displayed in nautical miles/knots, kilometers/kilometers per hour, or miles/ miles per hour. The default setting is nautical miles/knots.

  • Page 32: Time Difference (Using Local Time)

    Time Difference (using local time) GPS uses UTC time. If a GPS receiver feeds nav data to the NX-300 and you would rather use local time, enter the time difference (range: -13:30 to +13:30) between local time and UTC time.

  • Page 33: Time Display

    3.3 Time Display When navigational data is fed to the NX-300, you may display the time in 12-hour or 24-hour notation. The default setting is 24-hour notation. AM or PM is shown when 12-hour notation is selected. Press the [MENU] key to open the main menu.

  • Page 34: Delete All Messages

    Press the [MENU] key or [DISP] key to close the SYSTEM MENU. User Display of Navigation Data The NX-300 can function as nav data display when connected to navigation equipment. You may choose what data to display in the three cells below the date and time indications on the nav data display.
  • Page 35 Press the [ENT] key to show the USER DISPLAY menu. The cursor is now on the LARGE field. LARGE means the center indication on the nav data display. Figure 3-8 USER DISPLAY Press the [ENT] key. The following window appears. Figure 3-9 Options for LARGE window Operate the Omnipad to select item desired.
  • Page 36 This page is intentionally left blank. www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 37: Other Functions

    To quit the VIEW mode,: repeat above procedure. “RESET VIEW MODE!” appears. 4.3 All Clear This function deletes all messages and restores default settings. When the NX-300 is first installed, you should clear all data. Press the [PWR] key while pressing to turn the power on.

  • Page 38: Changing Received Message Log Window

    4.4 Changing Received Message Log Window You can show received frequency on the received message log as shown below. 1. Press the [PWR] key while pressing !to turn the power on and release the keys after display appears. 2. Press the [DISP] key to show the received message log. The received frequencies (518 kHz and 490 kHz) are displayed on the window.

  • Page 39: Maintenance & Troubleshooting

    5. MAINTENANCE & TROUBLESHOOTING WARNING Do not open the equipment. Only qualified personnel should work inside the equipment. Further, watertightness may be reduced. Maintenance Check the following points regularly to maintain performance: • Check that connectors on the rear panel are firmly tightened and free of rust. •...

  • Page 40: When The Battery Icon Appears

    Press the [ENT] key to start the test. The equipment checks ROM, RAM, SIO and internal battery, and the results are individually displayed as OK or NG (No Good). Program numbers appear at the bottom of the display. Note 1: SIO requires a special connector to check. “03” appears as the result when no connector is connected.

  • Page 41: Replacement Of Fuse

    If the fuse blows find out the cause before replacing it. If the fuse blows again after replacement, contact a FURUNO agent or dealer for advice. Use only a 1 A fuse – use of a different fuse will damage the equipment and void the warranty.
  • Page 42 This page is intentionally left blank. www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 43: Installation

    6. INSTALLATION Installation of Display Unit Mounting considerations The display unit can be installed on a tabletop, on the overhead, or in a panel (optional flush mounting kit required). Refer to the outline drawings at the end of this manual for installation instructions.

  • Page 44: Installation Of Antenna Unit

    5 mm in diameter to prevent antenna damage. Do not use a 2.5 m whip antenna. Use spring washer (supplied) for whip antenna. • The NX-300 contains a very sensitive receiver. To avoid mutual interference with other radio equipment, do not install this unit near an SSB/VHF/CB radiotelephone.

  • Page 45: Wiring

    6.3 Wiring The figure below shows where to connect cables on the rear of the display unit. ANTENNA UNIT NX-3H-D NAVTEX RECEIVER 10 m POWER Ground (12-24 VDC) 1 A FUSE (+ Line) Black To personal computer To navigational equipment Figure 6-3 Wiring Note: The fuse holder contains a spring that fixes the fuse.

  • Page 46: Interfacing

    GPS navigator GP-31/GP-36 for display on its screen. If you want to connect equipment which outputs data in a format other than RS-232C, a level converter is required for interface. Consult FURUNO dealer for details. Input data sentence description...

  • Page 47: Menu Tree

    MENU TREE MODE ( AUTO , MANUAL) MENU STATION SELECTION MESSAGE SELECTION ( A-E, L, V: RECEIVE; OTHERS: IGNORE ) Default settings in boldface italic. RCV NOTIFY ( OFF , ON) FUNCTIONS RCV ALARM (OFF, ON ) KEY BEEP (OFF, ON ) ERROR RATE (0-39 33% ) SCROLLING ( AUTO-SLOW , AUTO-FAST, SKIP-$$)

  • Page 48: Specifications

    Message Display Mode 2.3. Message Storage 28,000 Characters 3. ANTENNA UNIT 3.1. Selectable Antenna NX-3H-D: H-field antenna for NX-300-H-D Others: Local supply antenna for NX-300-N-D 3.2. Input Impedance 50 ohms 3.3. Power supply +5.0 VDC 4. INTERFACE 4.1. Input Data NMEA0183 Ver.1.5/2.0, RS-232C, 4800 bps...
  • Page 49 4.2. Output Data Message data for personal computer, RS-232C, 4800 bps Data length: 8, Stop bit: 1, Parity: None T/R Code: CR+LF, XON/XOFF Control, Local echo: ON 5. POWER SUPPLY 12-24 VDC: 130-70 mA 6. ENVIRONMENTAL CONDITION 6.1. Ambient Temperature Antenna unit: -25°C to +70°C Display Unit: -15°C to +55°C 6.2.
  • Page 50 This page is intentionally left blank. www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 51: Packing List

    ＰＡＣＫＩＮＧ　ＬＩＳＴ ＰＡＣＫＩＮＧ　ＬＩＳＴ 08AU-X-9852 -2 ＰＡＣＫＩＮＧ　ＬＩＳＴ ＰＡＣＫＩＮＧ　ＬＩＳＴ NX-300-H-D NX-300-H-D NX-300-H-D NX-300-H-D N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット ユニット UNIT UNIT ユニット ユニット UNIT UNIT 空中線部 NX-3H-D ANTENNA UNIT 000-059-204 ﾅﾌﾞﾃｯｸｽ受信機 NX-300-D NAVTEX RECEIVER 000-059-205 予備品...
  • Page 52 ＰＡＣＫＩＮＧ　ＬＩＳＴ ＰＡＣＫＩＮＧ　ＬＩＳＴ 08AU-X-9853 -3 ＰＡＣＫＩＮＧ　ＬＩＳＴ ＰＡＣＫＩＮＧ　ＬＩＳＴ NX-300-N-D NX-300-N-D NX-300-N-D NX-300-N-D N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット ユニット UNIT UNIT ユニット ユニット UNIT UNIT ﾅﾌﾞﾃｯｸｽ受信機 NX-300-D NAVTEX RECEIVER 000-059-205 予備品 予備品 予備品...
  • Page 53 www.Busse-Yachtshop.de email: info@busse-yachtshop.de...
  • Page 54 www.Busse-Yachtshop.de email: info@busse-yachtshop.de...
  • Page 55 www.Busse-Yachtshop.de email: info@busse-yachtshop.de...
  • Page 56 www.Busse-Yachtshop.de email: info@busse-yachtshop.de...
  • Page 57 www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 58: Index

    INDEX All clear 4-1 Language menu 2-9 AUTO 1-3 LCD check 5-2 AUTO mode 2-3 Local time 3-2 AUTO-FAST 2-6 AUTO-SLOW 2-6 Main menu 2-2 Maintenance 5-1 BATTERY icon 1-3, 5-2 MANUAL mode 2-3 Message selection 2-4 Mounting 6-1 Contrast 2-2 Control panel 2-1 Navarea 1-1 Navigation data display 2-11, 3-4...
  • Page 59 SAR 1-3 Saving to PC 2-6 Scroll bar 1-3 SCROLLING 2-6 SKIP-$$ 2-6 Start code 1-2 Station list 1-5 Station map 1-4 Station selection 2-3 SYSTEM MENU 3-1 Termination code 1-2 TEST 5-1 TIME DIFF 3-2 Time difference 3-2 TIME DISP 3-3 Type of message 1-2 Units of measurement 3-1 User display 3-4...
