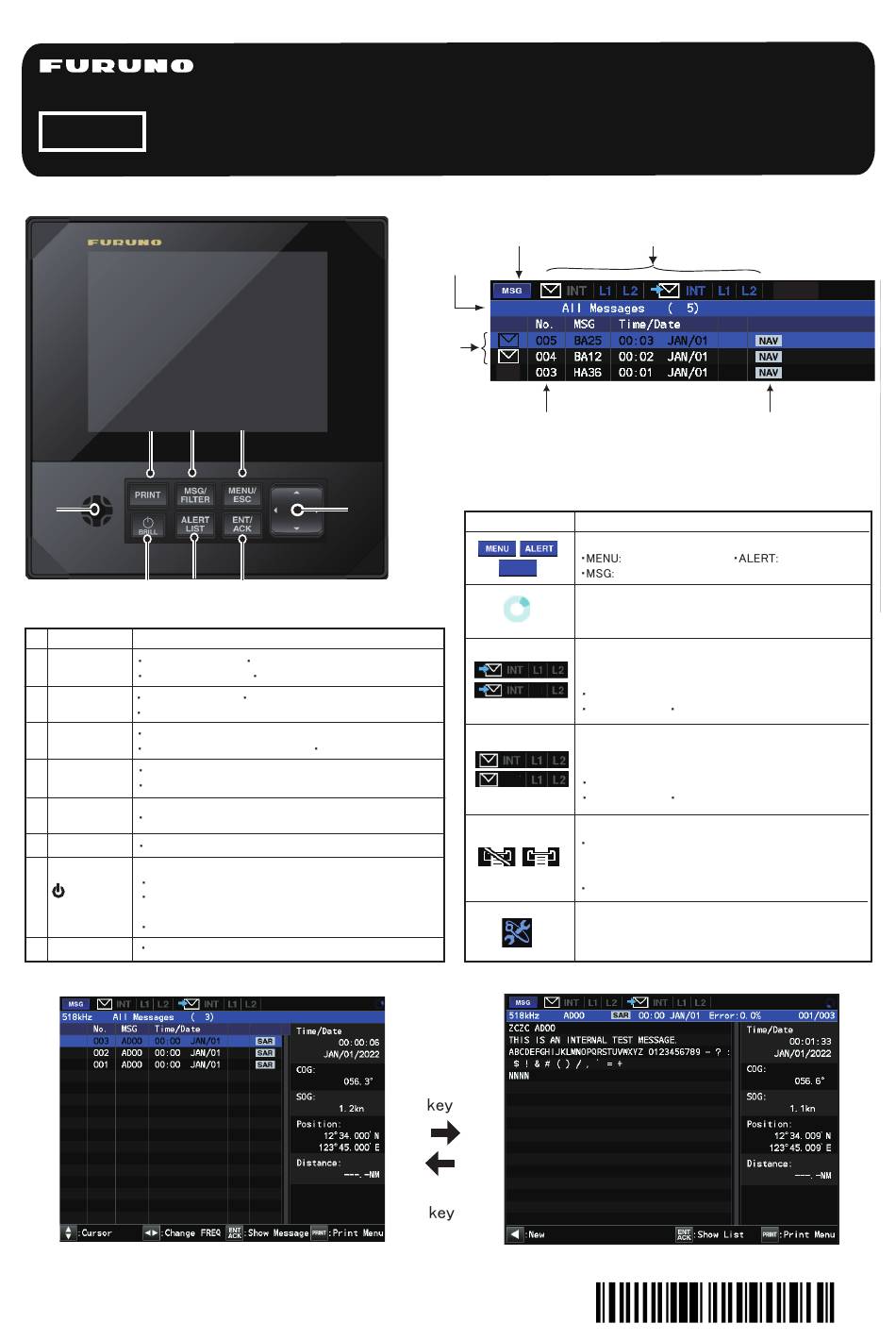

Furuno NX-900 Operator's Manual

NAVTEX RECEIVER
English
Model
6 6 4 4
8 8
7 7 5 5
Operation
Key
▲►▼◄ Moves the cursor. Changes the frequency.
1
Trackpad Selects messages. Select items on menus.
MENU/
Opens the menu. Returns to the previous display.
2
ESC Cancels option.
ENT/ Confirms the selected menu/operation.
3
ACK Shows the selected message. Acknowledges alerts.
Opens the message list/message information display.
MSG/
4
Opens the filter display.
FILTER
ALERT
5
Shows the alert list display.
LIST
6 Opens the print option display.
PRINT
Short press:
Turns the power on.
7 /BRILL
Shows the [Brill Level Setup] display.
Long press:
Turns the power off (3 sec).
8 Buzzer
Activates key beeps and alert sounds.
NX-900
Unread
message
2 2
1 1
3 3
ENT/ACK
ENT/ACK
Pub. No. OSC-57150-A
(2311, MENA) NX-900
Operator's Guide
Display mode icon
Frequency
518kHz
icons
Message number
(newest: the first row
from the top)
Icon
Display mode icon
MSG
Active Indicator
Displayed and spinning when the program is running.
If the program is stopped, the spinning stops.
L1
INT
Printer icon
Remote monitoring icon
Displayed when remote monitoring* is in use.
*: See the Operator's Manual.
This guide provides the basic operating and
installation procedures for this equipment. For
detailed information, see the Operator's Manual.
The brand and product names mentioned in this
guide are trademarks, registered trademarks or
service marks of their respective holders.
Message icons
Message type; SAR, NAV, MET
Name and Meaning
User menu display
Message/filter display, Message detail display
Message received icon
Displayed in blue when a message is received for
each frequency (otherwise displayed in gray):
[INT]: 518 kHz
[L1]: 490 kHz [L2]: 4209.5 kHz
Unread message icon
Displayed in blue when an unread message exists
for each frequency (otherwise displayed in gray):
[INT]: 518 kHz
[L1]: 490 kHz [L2]: 4209.5 kHz
Left icon: Displayed when the printer connection is
lost, recording paper has run out, or the printer
unit cover is open.
Right icon: Displayed during printing.
00019998011
Alert display
