700TVL
X-WDR/3D DNR
STANDARD CAMERA
USER'S MANUAL
Sony 1/3" 960H CCD II
■
High Resolution 700TV Lines
■
WDR(Wide Dynamic Range)
■
3D DNR(Digital Noise Reduction)
■
Sens-Up Function(x512)
■
Eclipse Function
■
Zero Defect
■
Day & Night (ICR-Optional)
■
Motion Detection
■
Back Light Compensation
■
RS485 / PELCO-D
■
Privacy Mask(Polygonal,8 Colors)
■
O.S.D menu function
■
960H/ES 001
Advertisement
Table of Contents
Related Manuals for Avico 700TVL X-WDR/3D DNR
Summary of Contents for Avico 700TVL X-WDR/3D DNR

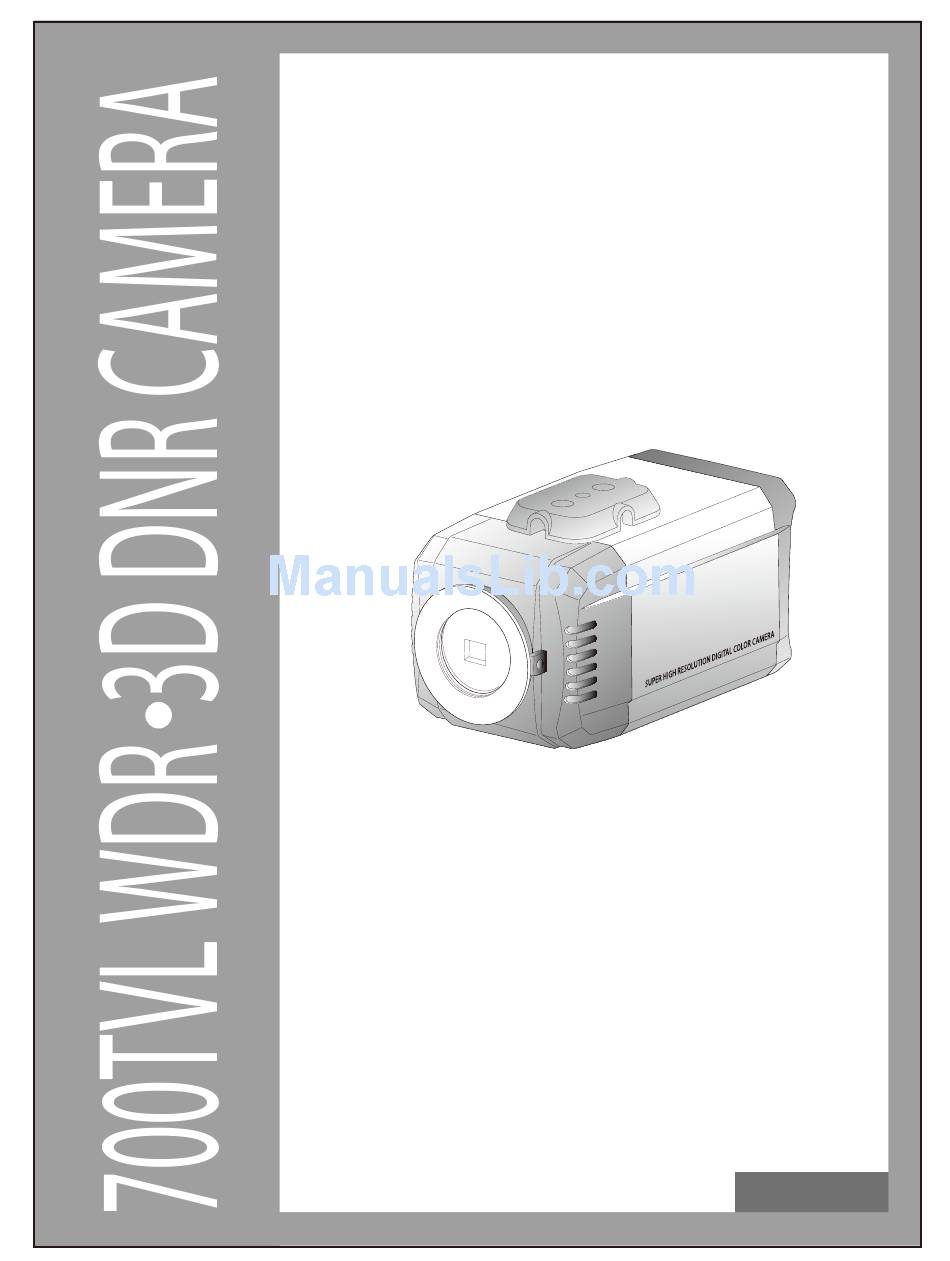

- Page 1 700TVL X-WDR/3D DNR STANDARD CAMERA USER’S MANUAL Sony 1/3” 960H CCD II ■ High Resolution 700TV Lines ■ WDR(Wide Dynamic Range) ■ 3D DNR(Digital Noise Reduction) ■ Sens-Up Function(x512) ■ Eclipse Function ■ Zero Defect ■ Day & Night (ICR-Optional) ■...
- Page 2 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 3 Precaution Do not Keep the camera face to strong light directly Do not install the camera in extreme temperature conditions. Do not disassemble the camera even if troubles happened To avoid malfunctions, never use the camera close to a gas or oil leak Do not drop the camera or subject them to physical shocks.
- Page 4 1. Features WDR(Wide Dynamic Range) Delivers a powerful Wide Dynamic Range to the camera which provides superior images, internally and externally, even under extreme light and dark contracts. It automatically compensates the necessary light levels to get detailed information in the dark part of the image without saturation from the bright part. It enables the WDR function to be very efficient, using a normal CCD, by using a Dual Shutter (long &...
- Page 5 2. Components WDR/3D DNR Camera L-Wrench WDR / 3D DNR STANDARD CAMERA USER’S MANUAL Manual WDR/3D DNR Zero Defect High Resolution of 600 TV Lines Sens Up(x512, DSS) DIS(Digital Image Stabilization) Polygonal Privacy Masking D.Zoom(x1~x10) Eclipse High Sensitivity Day&Night...
-
Page 6: Names And Functions Of Parts
3. Names and Functions of Parts 1) Front ① Lens protection cap Please cover while it is out of use. ② CS-Mount lens adaptor Please attach the CS-Mount lens here. ③ Back Focus clamp screw Please loosen the clamp screw with a screwdriver before adjusting the Back focal length. - Page 7 DC12V, DC12V/AC24V Free Voltage VIDEO VIDEO RS 485 POWER POWER RS 485 DC 12V DC IRIS AC 90~240V DC IRIS AC 24V 2) Back ① Auto iris lens connector This is the connection terminal for auto iris lens. ② Video composite Out ③...
-
Page 8: Installation
4. Installation 1) Lens Lenses are sold separately. Lenses such as auto iris lens, CS-Mount lens and C-Mount lens can be used. Note) How to operate this product effectively • Please keep lens clean • Any foreign objects and finger marks on the lens can cause inferior image quality in low light conditions. - Page 9 Please remove the cover of the auto iris lens connection plug and solder the lens cable to the connector pin in the plug. LENS Pin No. No.1 Pin Damping- No.2 Pin Damping+ No.3 Pin Drive+ No.4 Pin Drive- Lens cable No.
-
Page 10: Rs485(Option)
② When using a CS-Mount lens Please take off the lens protection cap and attach the CS-Mount lens to the camera by screwing it in clockwise. ③ When using a C-Mount lens Please take off the lens protection cap and attach the C-mount adaptor. - Page 11 EXPOSURE LENS DC, ELC E.SHUTTER AUTO, 1/50,1/60(NTSC), 1/100,000 ON<1~255>, OFF WDR LEVEL<0~20> WEIGHT<0~20> OFF,LOW,MID,HIGH SENS-UP AUTO, OFF, MANUAL (x512 ~ x2) RETURN COLOR WB MODE AWC, ATW, MANUAL, PUSH R-Y GAIN B-Y GAIN RETURN DAY&NIGHT D&N MODE AUTO, DAY, NIGHT, EXT LEAD TIME <1, 5, 30, 60>...
- Page 12 PRIVACY MASK1 SETWINDOWS COLOR SET<1~8> MASK8 SET WINDOWS COLOR SET<1~8> RETURN SYNC SYNC MODE AUTO, INTER V-PHASE <0~199> RETURN COMMUNICATION ADDRESS <0~255> BAUDRATE OFF, 2400~38400 PROTOCOL PELCO-D RETURN SPECIAL TITLE EDIT RESET POSITION LANGUAGE AUTO,OFF RETURN EXIT SAVE&EXIT FACTORY SET EXIT RETURN...
-
Page 13: Wdr Level
6. Special Features 1. WDR(Wide Dynamic Range) Wide Dynamic Range is essential for capturing the images at all light levels. EXPOSURE LENS E.SHUTTER 1/60 WDR LEVEL WEIGHT HIGH RETURN SENS-UP MANUAL RETURN 1) WDR LEVEL : You can set the WDR(Entry) LEVEL on the entry timing for this function. You have to set the level into low number if you need a WDR function just in more strong light. - Page 14 2. 3D DNR(Digital Noise Reduction) Select 3D DNR ON or OFF. 3D-DNR function reduce the background noise in a low luminance environment. Upgraded 3D filtering ensures even more clear image. [DNR Level High : Picture image is more clear but Ghost is more increased. DNR Level Low : Picture image is not clear but less Ghost.] MAIN MENU FUNCTION...
-
Page 15: Specifications
7. SPECIFICATIONS TV System NTSC ensor Sony 1/3” 960H CCD II Total Pixel 1020(H) X 508(V) 1020(H) X 596(V) E ective Pixel 976(H) X 494(V) 976(H) X 582(V) Synchronization Internal H/V 15.734/59.94Hz H/V 15.625/50Hz Line Lock H/V 15.750/60Hz H/V 15.625/50Hz Scanning System 2:1 Interlace Horizontal Resolution... -
Page 16: Product Warranty Card
PRODUCT WARRANTY CARD 1) ITEM # : 2) S/N # : 3) INSTALLATION CONDITION - Indoor / Outdoor - Power supply SPECIFICATION : DC12V / AC24V CURRENT __________ mA 4) TROUBLESHOOTING - No picture - Bad image - No power - Water damage - LED ON / OFF...
