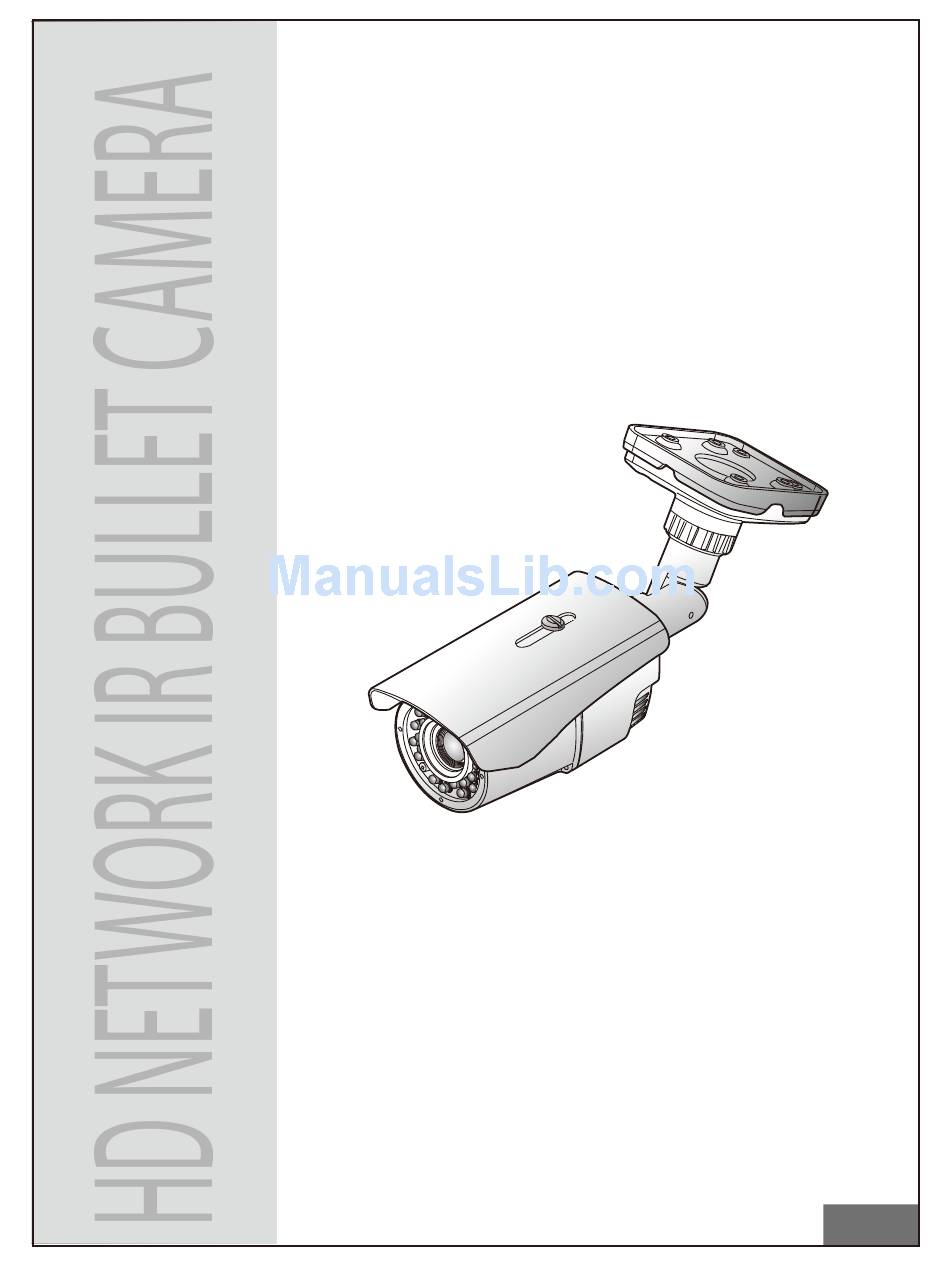

3 MEGA PIXEL
HD NETWORK
IR BULLET CAMERA
USER'S MANUAL
■ Sony EXMOR 3Mega Pixel Image Sensor
■ Triple Codec (H.264/MPEG4/MJPEG)
■ Triple Stream
■ Support Onvif
■ Support POE
IR LED : 40 units 850nm Infrared LED, 20,000hrs
■
Night View Distance : Indoor 45 / Outdoor 30m
■
External Control : Focus/Zoom(Gear Type),
■
Sense-Up (x29)
■
True Day & Night(ICR)
■
Built-in Concealed Cable Bracket
■
Weatherproof (IP67)
■
Reset/Factory Default(Joystick)
IP3-002
Advertisement
Table of Contents
Related Manuals for Avico AVIP-HDT4130V
Summary of Contents for Avico AVIP-HDT4130V
- Page 1 3 MEGA PIXEL HD NETWORK IR BULLET CAMERA USER’S MANUAL ■ Sony EXMOR 3Mega Pixel Image Sensor ■ Triple Codec (H.264/MPEG4/MJPEG) ■ Triple Stream ■ Support Onvif ■ Support POE IR LED : 40 units 850nm Infrared LED, 20,000hrs ■ Night View Distance : Indoor 45 / Outdoor 30m ■...
- Page 2 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 3 Precaution Do not Keep the camera face to strong light directly Do not install the camera in extreme temperature conditions . Do not disassemble the camera even if troubles happened To avoid malfunctions, never use the camera close to a gas or oil leak Do not drop the camera or subject them to physical shocks.
- Page 4 1. Interface Power Audio Out(yellow) GND (Black) Audio In(White) Service Video LAN Cable Sense In (Yellow) GND (Black) Alarm 12V Out (Red) Alarm Out (White) 2. IP Initialization IP Address 192.168.1.30 Gateway 192.168.1.1 Subnet mask 255.255.255.0 Factory admin Default Password admin Web Port RTSP Port...
-
Page 5: Specification
3. Specification CAMERA SECTION IMAGE Image Sensor Sony EXMOR 3MP Image Sensor Scan System Progressive Scan Total Pixels 2144(H) x1588(V), 3.48 Mega Pixels E ective Pixels 2096(H) x1561(V), 3.14 Mega Pixels Function Day & Night Auto/Day(Color)/Night(BW) Privacy Area On/O (6 Programmable Zone) DWDR (1~5Step) 1~63 Motion Detector... -
Page 6: Installation & Dimension
4. Installation & Dimension Wall Adjust FOCUS/ZOOM Please use enclosed adjusting kit to adjust the FOCUS / ZOOM. And lock the device tightly after adjusting focus and zoom. It is for waterproo ng. ※REMARKS It is composed with very sensitive Lock the device gear. - Page 7 5. IP Manager You can do all the settings about network by IP Manager. 1) Run IP Manager 2) Click Find 3) Choose the cameras you want to change 4) Click Change 5) Click Batch 6) If you want to change many IP addresses, you can enter the starting IP address and the ending IP address, and enter each increasing step.
- Page 8 8) Con rm if the changing values are correct. 9) Click Change 10) Check the Status 11) Try again for the failed cameras...
-
Page 9: Web Viewer
6. Web Viewer You can connect the web server inside the camera and check the picture. First enter the address on internet explorer. 1) Enter ID / Password 2) Click Viewer admin Password Install Active-X... -
Page 10: Web Viewer Functions
Web viewer functions 1) Stream : Choosing stream, displaying the status of chosen stream 2) Viewer Size : Choose the size of window 3) Disconnect : Disconnect the camera 4) Save : Record the current moving picture in AVI le format. 5) Capture : Save the current still picture in BMP le format. -
Page 11: Web Manager
7. Web Manager You can control all the functions through Web Manager log on. When you use, you should change ID and Password and don’t open for secure use. 1) Enter ID / Password 2) Click Manager admin Password Check the network setting and change When it is working ne under LAN condition, but not working under WAN, and the camera cannot receive the correct time from NTP server, IP Address... - Page 12 How to update the rmware Update is needed to improve the functions and quality. 1) Click the nd and choose the update le. 2) Click Update start and wait until Wait Downloading appears. * Don’t click any buttons when you are waiting. 3) Wait until Update completed * Don’t click any buttons when it is being updated.
- Page 13 8. Web Viewer Suppress rolling If there is a rolling picture under lighting, you can use this Suppress rolling function. If you choose “Strong” on Suppress Rolling function, electric shutter will be xed at 1/15 ~ 1/120 sec. you should be careful when you use it under bright lighting. Click Help ( ) for more details.
- Page 14 9. Web Manager Frame rate / Bit rate adjustment Refer to below bit rate and frame rate example for your easier understanding. Current Status Frame Rate : 30[fps] Bit Rate : 4000[Kbps] Case 1 Frame Rate 15[fps] Bit Rate 4000[Kbps] The pictures transferred per 1 sec.
- Page 15 Case 3 Frame Rate 15[fps] Bit Rate 2000[Kbps] The pictures transferred per 1 sec. is decreased from 30 to 15. The date size transferred per 1 sec. is decreased from 4000[Kbps] to 2000. Picture quality is same, network load will be decreased from 4000[Kbps] to 2000, by half.
- Page 16 How to set WDR If you want to watch the more clear image under back light condition, you can do setting as below, and choose the step and click Save. * You should check the pictures after click the Save button. Enable Ligth Compensation Back-light...
