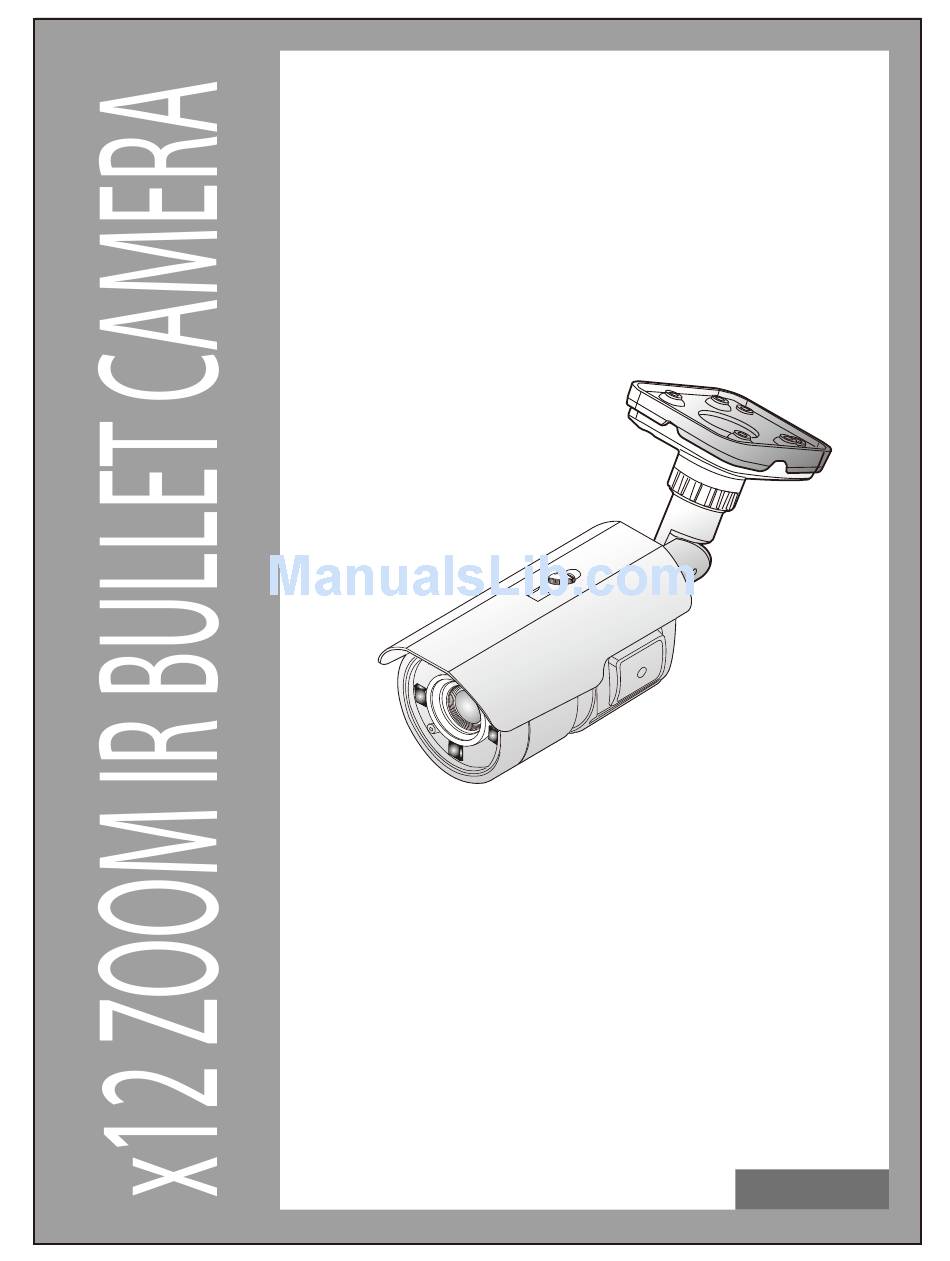

  • Page 1 x12 ZOOM IR BULLET CAMERA USER’S MANUAL 1/4" Sony Super HAD II CCD (Double scan) ■ x12 Optical Zoom ■ High Resolution 700 TV Lines ■ Day & Night (ICR) ■ Wide Dynamic Range(x512) ■ Digital Noise Reduction(2D+3D) ■ Privacy mask Function ■...
  • Page 2 Precaution Do not Keep the camera face to strong light directly Do not install the camera in extreme temperature conditions . Do not disassemble the camera even if troubles happened To avoid malfunctions, never use the camera close to a gas or oil leak Do not drop the camera or subject them to physical shocks.
  • Page 3 1. Features • 1/4" Sony Super HAD II CCD (Double scan) 520K (NTSC)/ 610K(PAL) pixels • x12 Optical Zoom Built-in x12 optical zoom lens is highly reliable. It features auto focus, auto iris, auto D&N, zoom function. • High Resolution 700 TV Lines This camera has realized high resolution of more 700 TV lines.

  • Page 4: Names And Functions Of Parts

    2. Names and Functions of Parts ⑤ ④ ③ ② ② ① ① SRLEDs ② OSD Menu LEFT / NEAR RIGHT / FAR ENTER Service Video UP / TELE DOWN / WIDE ③ Sun-Shield ④ Bracket ⑤ Junction Box...

  • Page 5: Installation And Connection

    3. Installation & Connection Wall DC Power Connecting Adaptor Power (Adaptor Plug) Video Cable RS485 -(White) (Option) RS485 +(Orange) RS485 - RS485 + Monitor PORT2 PORT1 RX TX RX...
  • Page 6 4. How to Set up the Function Main Screen OSD Camera title. “Title” Camera ID. ① Status of the zoom position. Alarm message of the Object Detection function Alarm message of the Motion Detection function !Object! ② ID:001 !Motion! x0001③ MAIN MENU [MENU] FOCUS...
  • Page 7 FOCUS [FOCUS] [MENU] MODE AUTO FOCUS DISTANCE 0.1m EXPOSURE LENS REFRESH WHITE BALANCE E.ZOOM IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DELT] [EXIT] [SAVE] [DELT] · MODE : Select auto focus mode AUTO, ONE PUSH, MANUAL · DISTANCE : Select minimum distance in focus between camera and object. 0.1 / 1.3 / 1.8 / 3.0 / 5.0 m ( 36x ) 0.1 / 1.0 / 1.5 / 2.5 / 6.0 m ( 22x ) 0.1 / 1.0 / 1.3 / 2.0 / 6.0 m (12x )
  • Page 8 · AGC : Select Auto Gain Control OFF / ON (AUTO, SHUT.P or IRIS.P Mode) 0/2/4/6/8/10/12/14/16/18/20/22/24/26/28/30dB (MANUAL Mode) · SHUT SPEED : Can be set in SHUT.P or MANUAL mode. NTSC : x512, x128, x64, x32, x16, x8, x4, x2, 1/60, 1/90, 1/100, 1/180, 1/250, 1/500, 1/1000, 1/1500, 1/2000, 1/5000, 1/10000, 1/20000, 1/50000, 1/100000 sec PAL : x512, x128, x64, x32, x16, x8, x4, x2, 1/50, 1/80, 1/120, 1/150, 1/250, 1/500, 1/1000, 1/1500, 1/2000, 1/5000, 1/10000, 1/20000, 1/50000, 1/100000 sec...

  • Page 9: White Balance Setting

    WHITE BALANCE SETTING EXPOSURE - ALC [WHITE BALANCE] [MENU] MODE FOCUS RED GAIN EXPOSURE BLUE GAIN WHITE BALANCE IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DELT] [EXIT] [SAVE] [DELT] · MODE : Select white balance mode ATW / ONE-PUSH / INDOOR / OUTDOOR / MANUAL / AUTO ATW : Automatically adjusts color according to the available lighting.
  • Page 10 / V (You can flip the picture vertically on the screen) / H (You can flip the picture horizontally on the screen) / H&V (You can flip the picture Horizontally & vertically on the screen) · SHARPNESS : Adjust sharpness level 1 ~ 16 steps ·...
  • Page 11 ACTIVATE : Activate or deactivate the each MD Area (OFF / ON) SENSITIVITY : Adjust sensitivity of MD (1 ~ 20) INTERVAL TIME : Select the alarm interval time (1 ~ 256sec) DEWELL TIME : Select the duration time about changing MD mode (1 ~ 256sec) POSITION : Adjust the MD position SIZE : Adjust the MD size ZOOM PRESET : Select zoom position to move when alarm is occurred...

  • Page 12: Special Function

    SPECIAL FUNCTION [SPECIAL FUNC] [MENU] SCENE MODE USER FOCUS COMM EXPOSURE WHITE BALLANCE IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DELT] [EXIT] [SAVE] [DELT] · SCENE MODE : Select scene preset. USER / NORMAL / TRAFFIC / BACK LIGHT / DAY/NIGHT / CASINO Back Day/ Function...
  • Page 13 DISPLAY [DISPLAY] [MENU] DISP SEL FOCUS INIT SEL EXPOSURE SET TITLE WHITE BALLANCE SET INIT MSG IMAGE LANGUAGE ENGLISH INTELLIGENCE SETUP STATUS SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DELT] [EXIT] [SAVE] [DELT] DISP SEL : Select display item · ID : OFF / ON TITLE : OFF / ON ZOOM RATIO : OFF / ON ·...
  • Page 14 5. Dimension Ø5 Wall Mount Bracket...

  • Page 15: Specification

    6. Specification Image Sensor 1/4" SONY Super HAD II(Double Scan) CCD Total Pixels NTSC : 1028(H) x 508(V) / PAL : 1028(H) x 596(V) Scanning system 2:1 Interlace Scanning Frequency NTSC : 15.734KHz(H), 59.94Hz(V) / PAL : 15.625KHz(H), 50Hz(V) Sync. System Internal Resolution Max.
  • Page 16 Image DNR / HR / Mirror / Sharpness / Effect / Freeze Off / Manual / Auto Off / 1 ~ 7 steps Mirror Off / H / V / H &V Sharpness 1 ~ 16 steps Effect Off / Negative / B&W Freeze Off / On Intelligent...
