Avico 700TVL X-WDR/3D DNR User Manual

Hide thumbs Also See for 700TVL X-WDR/3D DNR:
Table of Contents

Advertisement

Quick Links

Download this manual

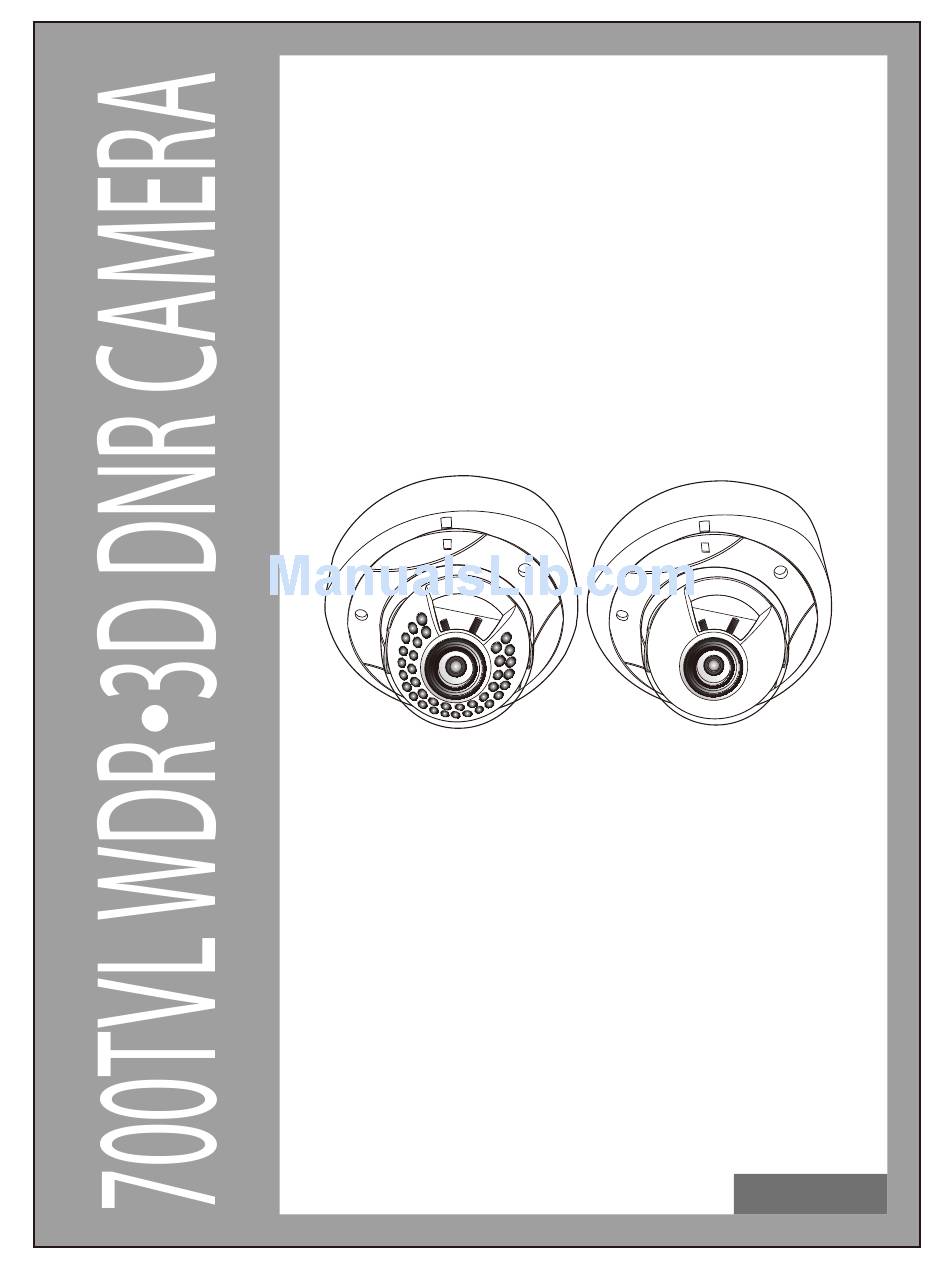

700TVL
X-WDR/3D DNR
DOME CAMERA
USER'S MANUAL
Sony 1/3" 960H CCD II
■
High Resolution 700TV Lines
■
X-WDR(Wide Dynamic Range)
■
3D DNR(Digital Noise Reduction)
■
Sens-Up (DSS, x512)
■
Eclipse Function
■
Zero Defect
■
Day & Night (ICR-Optional)
■
Motion Detection
■
Back Light Compensation
■
RS485 / PELCO-D
■
Privacy Mask(Polygonal,8 Colors)
■
O.S.D menu function
■
960H/ES 005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700TVL X-WDR/3D DNR and is the answer not in the manual?

Questions and answers

Related Manuals for Avico 700TVL X-WDR/3D DNR

Summary of Contents for Avico 700TVL X-WDR/3D DNR

  • Page 1 700TVL X-WDR/3D DNR DOME CAMERA USER’S MANUAL Sony 1/3” 960H CCD II ■ High Resolution 700TV Lines ■ X-WDR(Wide Dynamic Range) ■ 3D DNR(Digital Noise Reduction) ■ Sens-Up (DSS, x512) ■ Eclipse Function ■ Zero Defect ■ Day & Night (ICR-Optional) ■...
  • Page 2 1. Features WDR(Wide Dynamic Range) Delivers a powerful Wide Dynamic Range to the camera which provides superior images, internally and externally, even under extreme light and dark contracts. It automatically compensates the necessary light levels to get detailed information in the dark part of the image without saturation from the bright part. It enables the WDR function to be very efficient, using a normal CCD, by using a Dual Shutter (long &...
  • Page 3 2. Components Vandal Dome Camera(Surface Mount Type) SCREW L-WRENCH IR LED Vandal Dome Second Video & External OSD Control Cable SUPER WDR/3D DNR DOME CAMERA USER’S MANUAL 70.0 Mounting Template Surface Mount ■ Sony 1/3” Color Vertical Double Density CCD Sony 1/3”...

  • Page 4: Names And Functions Of Parts

    3. Names and Functions of Parts POWER Plastic Anchors RS-485(Optional) 3/4” Cap (2EA) Surface Mounting Screws M4 x 30 Service Video Surface Mount OSD Board Control Board Surface Mount Fix Screw Flush Mount Base Bracket Heater & Blower Board (Optional) Gimbal Assembly Screw(Surface Mount) LEDs...

  • Page 5: Installation And Connection

    4. Installation & Connection Surface Mount Installation STEP : 1. Mount the surface mount plate to a sturdy surface or wall with the installation template (mouting screws M4 x 30). 2. Connect the pre-drilled two screws in the flush mounting UNLOCK LOCK ring through the locking...

  • Page 6: Flush Mount

    4. Adjust the lens focus and zoom of camera to monitor the objective. 5. Fit three screws(M4 x 9) from dome cover ring to the flush mount ring and fix it by (3) screws. When you fit the dome cover ring please fit the symbols in the line.
  • Page 7 Adjusting the Varifocal DC Auto Iris Lens ZOOM FOCUS Heater / Blower Specfications Power Supply Only AC 24V Power Consumption 430mA (Heater) / 40mA(Blower) On : 5 O : 7 Heater ℃ ℃ Blower Continuous 24 Hour Operation...
  • Page 8 Camera O.S.D Setup Controls LEFT ENTER DOWN RIGHT...
  • Page 9 DC Power Connecting Adaptor Power (Adaptor Plug) Video Cable (Option) RS485 - RS485 + Monitor RS485 - RS485 + PORT2 PORT1 RX TX RX AC Power Connecting AC24V + (RED) AC24V - (BLACK) Adaptor Video Cable (Option) RS485 - RS485 + Monitor RS485 - RS485 +...

  • Page 10: Setup Menu Flow

    5. Setup Menu Flow EXPOSURE LENS DC, ELC E.SHUTTER AUTO, 1/50,1/60(NTSC), 1/100,000 ON<1~255>, OFF WDR LEVEL<0~20> WEIGHT<0~20> OFF,LOW,MID,HIGH SENS-UP AUTO, OFF, MANUAL (x512 ~ x2) RETURN COLOR WB MODE AWC, ATW, MANUAL, PUSH R-Y GAIN B-Y GAIN RETURN DAY&NIGHT D&N MODE AUTO, DAY, NIGHT, EXT LEAD TIME <1, 5, 30, 60>...
  • Page 11 PRIVACY MASK1 SETWINDOWS COLOR SET<1~8> MASK8 SET WINDOWS COLOR SET<1~8> RETURN SYNC SYNC MODE AUTO, INTER V-PHASE <0~199> RETURN COMMUNICATION ADDRESS <0~255> BAUDRATE OFF, 2400~38400 PROTOCOL PELCO-D RETURN SPECIAL TITLE EDIT RESET POSITION LANGUAGE AUTO,OFF RETURN EXIT SAVE&EXIT FACTORY SET EXIT RETURN...

  • Page 12: Special Features

    6. Special Features 1. WDR(Wide Dynamic Range) Wide Dynamic Range is essential for capturing the images at all light levels. EXPOSURE LENS E.SHUTTER 1/60 WDR LEVEL WEIGHT HIGH RETURN SENS-UP MANUAL RETURN 1) WDR LEVEL : You can set the WDR(Entry) LEVEL on the entry timing for this function. You have to set the level into low number if you need a WDR function just in more strong light.
  • Page 13 2. 3D DNR(Digital Noise Reduction) Select 3D DNR ON or OFF. 3D-DNR function reduce the background noise in a low luminance environment. Upgraded 3D filtering ensures even more clear image. [DNR Level High : Picture image is more clear but Ghost is more increased. DNR Level Low : Picture image is not clear but less Ghost.] MAIN MENU FUNCTION...
  • Page 14 7. Dimensions Flush Mount Surface Mount 115.0 PF 3/4” 143.2 174.7 109.0 unit : mm...

  • Page 15: Specifications

    8. SPECIFICATIONS TV System NTSC ensor Sony 1/3” 960H CCD II Total Pixel 1020(H) X 508(V) 1020(H) X 596(V) E ective Pixel 976(H) X 494(V) 976(H) X 582(V) Synchronization Internal H/V 15.734/59.94Hz H/V 15.625/50Hz Line Lock H/V 15.750/60Hz H/V 15.625/50Hz Scanning System 2:1 Interlace Horizontal Resolution...

  • Page 16: Product Warranty Card

    PRODUCT WARRANTY CARD 1) ITEM # : 2) S/N # : 3) INSTALLATION CONDITION - Indoor / Outdoor - Power supply SPECIFICATION : DC12V / AC24V CURRENT __________ mA 4) TROUBLESHOOTING - No picture - Bad image - No power - Water damage - LED ON / OFF...
