Avico AVDIR-HDT70VAHD User Manual

Full hd mega pixel dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

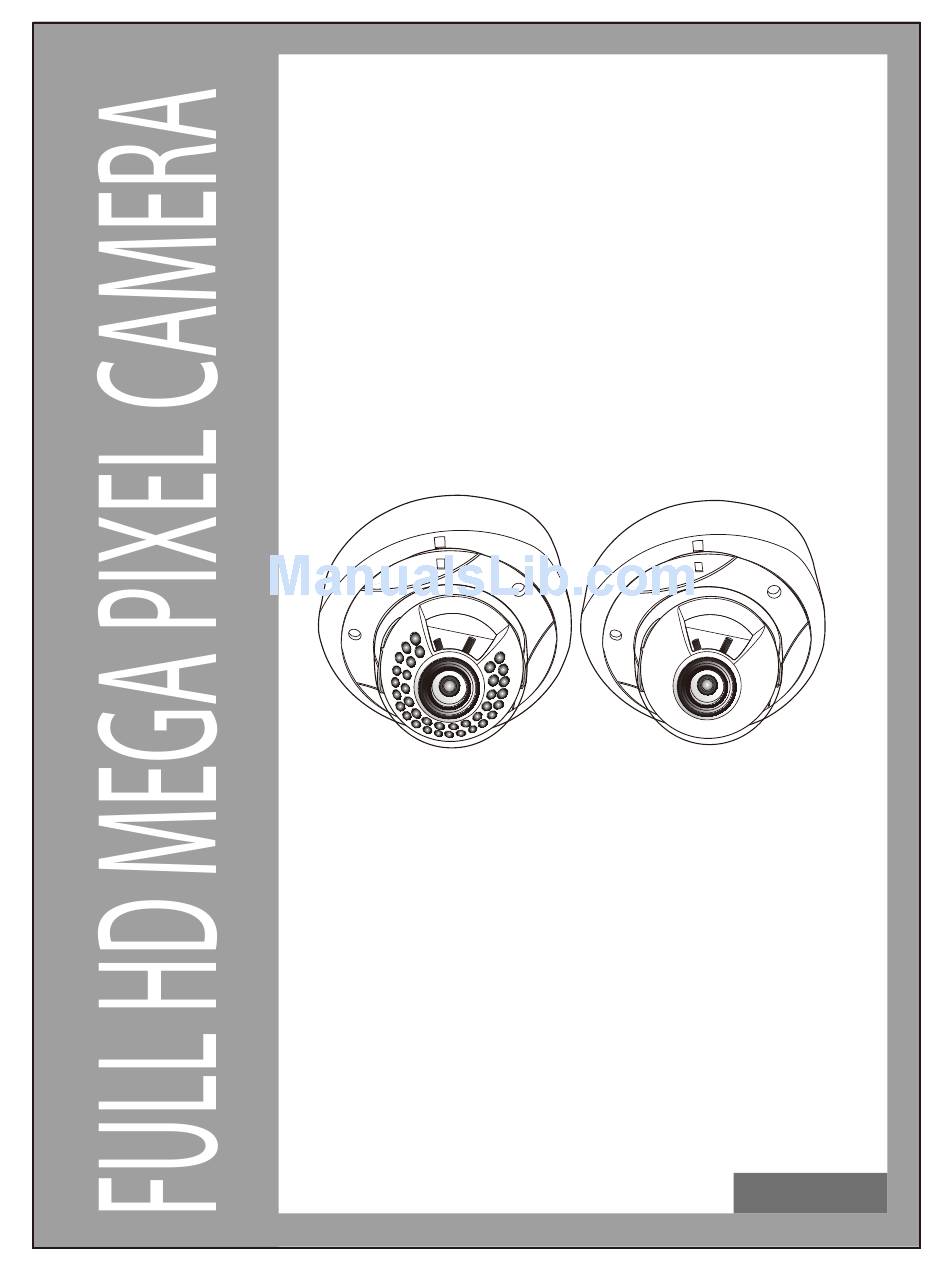

FULL HD
MEGA PIXEL

DOME CAMERA

USER'S MANUAL
1/3" Panasonic CMOS sensor
■
Full HD Resolution
■
DAY & NIGHT
■
WDR (Wide Dynamic Range)
■
DNR (Digital Noise Reduction, 2D+3D)
■
Privacy mask Function
■
On Screen Display
■
Deblur Function
■
Intelligent motion detection
■
HD-SDI/CVBS Output
■
Multi Protocol(Pelco-D, Pelco-P)
■
■
Heater & Blower Option
■
Flush or Surface Mounting Type
■
True 3-Axis Easy Ball Type Gimbal Bracket built-in
■
IP67 rate Waterproof Design
HDM 004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVDIR-HDT70VAHD and is the answer not in the manual?

Questions and answers

Related Manuals for Avico AVDIR-HDT70VAHD

Summary of Contents for Avico AVDIR-HDT70VAHD

  • Page 1: Dome Camera

    FULL HD MEGA PIXEL DOME CAMERA USER’S MANUAL 1/3" Panasonic CMOS sensor ■ Full HD Resolution ■ DAY & NIGHT ■ WDR (Wide Dynamic Range) ■ DNR (Digital Noise Reduction, 2D+3D) ■ Privacy mask Function ■ On Screen Display ■ Deblur Function ■...
  • Page 2 1. omponents Vandal Dome Camera(Surface Mount Type) SCREW L-WRENCH IR LED Vandal Dome Second Video & External OSD Control Cable SUPER WDR/3D DNR DOME CAMERA Option USER’S MANUAL 70.0 Mounting Template Surface Mount ■ Sony 1/3” Color Vertical Double Density CCD Sony 1/3”...

  • Page 3: Names And Functions Of Parts

    2. Names and Functions of Parts POWER Plastic Anchors HD-SDI RS-485(Optional) 3/4” Cap (2EA) Surface Mounting Screws M4 x 30 Service Video Surface Mount OSD Board LEFT ENTER DOWN RIGHT Control Board Surface Mount Fix Screw Flush Mount Base Bracket Heater &...

  • Page 4: Surface Mount Installation

    3. Installation & Connection Surface Mount Installation STEP : 1. Mount the surface mount plate to a sturdy surface or wall with the installation template (mouting screws M4 x 30). 2. Connect the pre-drilled two screws in the flush mounting UNLOCK LOCK ring through the locking...
  • Page 5 4. Adjust the lens focus and zoom of camera to monitor the objective. 5. Fit three screws(M4 x 9) from dome cover ring to the flush mount ring and fix it by (3) screws. When you fit the dome cover ring please fit the symbols in the line.

  • Page 6: Main Menu

    4. How to Set up the Function Main Menu ■ MENU EXPOSURE WDR/DNR WHITE BAL DAY/NIGHT AUTO MOTION PRIVACY OPTION CAMERA SET LANGUAGE ENGLISH EXIT 1. EXPOSURE Adjust camera exposure. 2. WDR/DNR The function is used to set the Back Light Compensation(BLC) and High Light Compensation(HLC) and Digital Noise Reduction(DNR).
  • Page 7 EXPOSURE ■ This function can adjust the intensity of radiation incoming to the camera. Use the "▲" "▼" "◀" "▶" "ⓔ" switch to select a menu item. EXPOSURE LENS BRIGHTNESS MODE INDOOR SHUTTER AUTO FREQ 60HZ SENS-UP SHADING RETURN FUNCTION OPTION DESCRIPTION LENS...
  • Page 8 WDR/DNR ■ *Not CVBS output when WDR mode. WDR/DNR WDR/DNR MODE D-WDR MODE WDR_WGT WDR_WGT BLC OSD BLC OSD BLC POS-X BLC POS-X BLC POS-Y BLC POS-Y BLC SIZ-X BLC SIZ-X BLC SIZ-Y BLC SIZ-Y MIDDLE MIDDLE RETURN RETURN LEVEL COLOR RETURN FUNCTION...

  • Page 9: White Balance

    2. BLC OSD WDR/DNR MODE WDR_WGT BLC OSD BLC POS-X BLC POS-Y BLC SIZ-X BLC SIZ-Y MIDDLE RETURN FUNCTION OPTION DESCRIPTION BLC OSD ON, OFF BLC POS-X 0~20 BLC POS-Y 0~20 Can be adjusted BLC area. BLC SIZ-X 0~20 0~20 BLC SIZ-Y 3.
  • Page 10 FUNCTION OPTION DESCRIPTION MODE for using only Blue filter (IR Cut O.L.P.F)mode AUTO AUTO ext MODE for using only IR Cut Coating filter (O.L.P.F)mode PUSH MANUAL 1. AWB FUNCTION OPTION DESCRIPTION Auto trace white balance AUTO TDN lens Auto trace white balance AUTO ext Can be changed in AWC mode only PUSH...
  • Page 11 MOTION ■ MOTION MOTION RESOLUTION RESOLUTION SENSITIVITY SENSITIVITY WINDOW USE WINDOW USE WINDOW TONE WINDOW TONE X-POS X-POS Y-POS Y-POS X-SIZ X-SIZ Y-SIZ Y-SIZ RETURN RETURN FUNCTION OPTION DESCRIPTION The size of the detection area. RESOLUTION Sets the motion detection sensitivity. SENSITIVITY 0~20 Select area using...

  • Page 12: Camera Set

    OPTION ■ OPTION DE-FOG D-OUT SCALE FULL D-OUT FORMAT 720P D-OUT FPS COLORBAR CVBS NTSC SHARPNESS MIRROR FLIP DZOOM RETURN FUNCTION OPTION DESCRIPTION DE-FOG OFF,AUTO, MANUAL Anti Fog Function D-OUT SCALE COMP, FULL Digital output data scale(compression, full) D-OUT FORMAT 720P, 1080P Digital output format D-OUT-FPS...
  • Page 13 1. TITLE TITLE The camera TITLE cursor moves ------------- SELECT-UP / DOWN MOVE-LEFT / RIGHT ENTER-RETURN 2. COMMUNICATION COMMUNICATION CAMERA ID BAUDRATE 9600 PROTOCOL Pelco-D SAVE ID DISPLAY RETURN FUNCTION OPTION DESCRIPTION CAMERA ID 0~254 Sets camera ID BAUDRATE 2400, 4800~115200 Select transmission speed PROTOCOL PELCO-D, PELCO-P...
  • Page 14 5. Dimension Flush Mount Surface Mount 115.0 PF 3/4” 143.2 174.7 109.0 unit : mm...
  • Page 15 6. Specification Image Sensor 1/3" Panasonic CMOS Total Pixels 2010(H) x 1108(V) = 2,227,080 (pixel) Active pixels 1944(H) x 1092(V) = 2,122,848 (pixel) Scanning system Progressive Resolution Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps) Analog : 700TVL Min. illumination Color : 1.0 lux , BW : 0.5lux Color DSS : 0.002 lux , BW DSS : 0.001 lux Video Output HD-SDI, BT.1120...
  • Page 16 Defog Off / Auto / Manual Sens-Up x2 ~ x4 Etc. Function Sharpness, Reverse(H,V) 0~10, Off / On ColorBar Off / On In/Output Alarm Output Video Output ANALOGUE NTSC, PAL CVBS(without WDR) HD-SDI(SMA CONNECTOR) Video Output IR (IR Type) 35 Units 850nm Infrared LED, 20,000hrs Night View Distance Outdoor 35m Lens...
