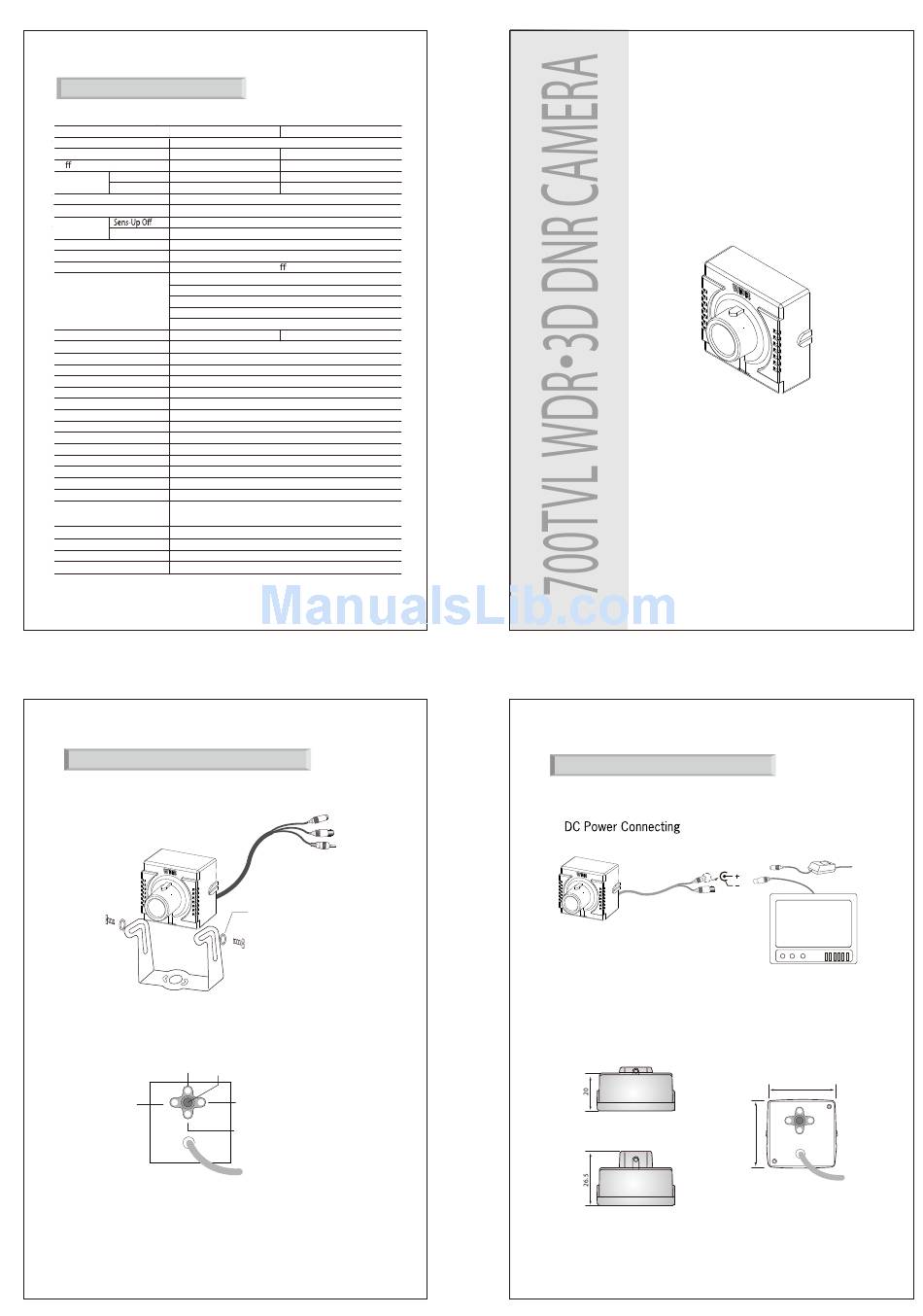

Avico AMH-W320B/ES User Manual

SPECIFICATIONS

TV System NTSC
S ensor
Sony 1/3" 960H (Super Exview HAD CCD II)
Total Pixel
1020(H) X 508(V)
E ective Pixel
976(H) X 494(V)
Synchronization Internal H/V 15.734/59.94Hz
Line Lock H/V 15.750/60Hz
Scanning System 2:1 Interlace
Horizontal Resolution 700 TV Lines (Max.)
Min. Illumination 0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE) F1.2
Sens-Up On 0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE) F1.2
Video Output 1.0Vp-p/ 75ohm Video 0.714Vp-p
γ Correction 0.45, 0.6, 1.0
More than 52dB(AGC o )
S/N
O.S.D LENS,E-SHUTTER, BACKLIGHT,WDR, AGC, SENS-UP
WHITE-BALANCE, DAY&NIGHT, MOTION, MIRROR
SHARPNESS, GAMMA, DNR, ECLIPSE, PRIVACY
COMMUNICATION, SYNC, TITLE, LANGUAGE
DPC
Electrical Shutter 1/60~1/100,000
Privacy Masking 8 Windows(Polygonal, 8 Colors)
Day & Night COLOR / BW / AUTO / EXT
Motion Detection ON / OFF
x1.0 ~x10
Digital Zoom
Sens-Up(Low Shutter) OFF ~x512
SYNC AUTO / INTERNAL / DIGITAL LINE LOCK
White Balance ATW / AWC / MANUAL / PUSH
WDR ON / OFF(WDR LEVEL, WEIGHT)
WDR Level 120dB Max.
3D-DNR ON / OFF(OFF, LOW, MID, HIGH)
LSC ON / OFF
DIS ON / OFF
ECLIPSE ON / OFF
AGC LOW / MIDDLE / HIGH / OFF
Lens 2.9mm Board Lens (AMH-W320B/ES
3.7mm Conical Pin-Hole Lens(AMH-W320PC/ES)
Operating Temperature/Humidity -20 ~60 /30% ~80%
℃ ℃
Storage Temperature/Humidity -30 ~60 /20% ~90%
℃ ℃
Power(Max.) DC12V, 150mA
Dimension(mm) 61(W) X 55(H) X 106(L)mm
Design and specifications are subject to change without notice.

Name of each parts

Camera
Bracket
OSD Board
Push
UP
ENTER
U
LEFT
L R
D
PAL
1020(H) X 596(V)
976(H) X 582(V)
H/V 15.625/50Hz
H/V 15.625/50Hz
1/50~1/100,000
(Option-Audio)
2mm Spring Washer
2 x 3 Screw
RIGHT
DOWN
700TVL
SUPER WDR/3D DNR
MINIATURE CAMERA
USER'S MANUAL
Sony 1/3" 960H (Super EXview HAD CCD II)
■
High Resolution 700TV Lines
■
WDR(Wide Dynamic Range)
■
■ 3D DNR(Digital Noise Reduction)
Sens-Up Function(x512)
■
Eclipse Function
■
Zero Defect
■
Day & Night
■
Motion Detection
■
Back Light Compensation
■
PELCO-D
■
Privacy Mask(Polygonal,8 Colors)
■
■ O.S.D menu function

Connection

Power
(Adaptor Plug)
Video Cable
Dimensions
AMH-W320PC/ES
AMH-W320B/ES
Adaptor
Monitor
36
U
L R
D
36
unit : mm
