Avico 630TVLD-WDR User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

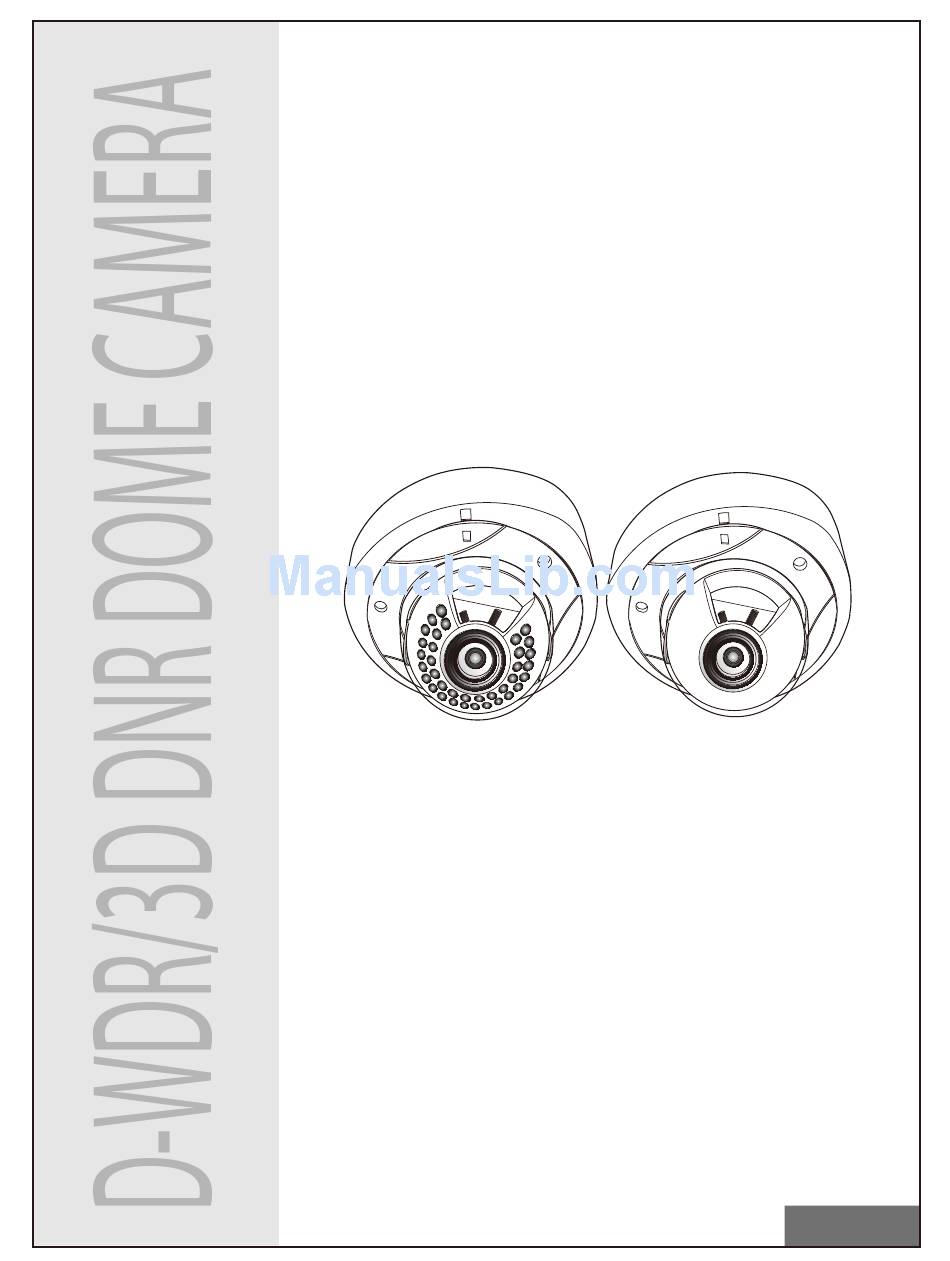

630TVL
D-WDR/3D DNR

DOME CAMERA

USER'S MAN
Sony 1/3" Super HAD CCD II
■
High Resolution 630TV Lines
■
D-WDR(Wide Dynamic Range)
■
3D DNR(Digital Noise Reduction)
■
Sens-Up Function(x1024)
■
LSC (Lens Shading Compensation)
■
Intelligent Motion Detection
■
PELCO-D / RS485(Optional)
■
Heater & Blower Option
■
35pcs IR LED Vandal Dome Camera or
■
Non-IR LED Vandal Dome Camera
■
Flush or Surface Mounting Type
True 3-Axis Easy Ball Type Gimbal Bracket built-in
■
IP68 rate Waterproof Design
■
8-009-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 630TVLD-WDR and is the answer not in the manual?

Questions and answers

Related Manuals for Avico 630TVLD-WDR

Summary of Contents for Avico 630TVLD-WDR

  • Page 1: Dome Camera

    630TVL D-WDR/3D DNR DOME CAMERA USER’S MAN Sony 1/3” Super HAD CCD II ■ High Resolution 630TV Lines ■ D-WDR(Wide Dynamic Range) ■ 3D DNR(Digital Noise Reduction) ■ Sens-Up Function(x1024) ■ LSC (Lens Shading Compensation) ■ Intelligent Motion Detection ■ PELCO-D / RS485(Optional) ■...
  • Page 2 1. Features D-WDR(Wide Dynamic Range) Delivers a powerful Wide Dynamic Range to the camera to provide D-WDR captures the images at all light levels by correcting GAMMA CURVE. If you use an ordinary camera in a scene with an intensive backlight, the object will be displayed dark on the monitor affected by the backlight.
  • Page 3 2. Components Vandal Dome Camera(Surface Mount Type) SCREW L-WRENCH IR LED Vandal Dome Second Video & External OSD Control Cable SUPER WDR/3D DNR DOME CAMERA USER’S MANUAL 70.0 Mounting Template Surface Mount ■ Sony 1/3” Color Vertical Double Density CCD Sony 1/3”...

  • Page 4: Names And Functions Of Parts

    3. Names and Functions of Parts POWER Plastic Anchors RS-485(Optional) 3/4” Cap (2EA) Surface Mounting Screws M4 x 30 Service Video Surface Mount OSD Board Control Board Surface Mount Fix Screw Flush Mount Base Bracket Heater & Blower Board (Optional) Gimbal Assembly Screw(Surface Mount) LEDs...

  • Page 5: Installation And Connection

    4. Installation & Connection Surface Mount Installation STEP : 1. Mount the surface mount plate to a sturdy surface or wall with the installation template (mouting screws M4 x 30). 2. Connect the pre-drilled two screws in the flush mounting UNLOCK LOCK ring through the locking...

  • Page 6: Flush Mount

    4. Adjust the lens focus and zoom of camera to monitor the objective. 5. Fit three screws(M4 x 9) from dome cover ring to the flush mount ring and fix it by (3) screws. When you fit the dome cover ring please fit the symbols in the line.
  • Page 7 Adjusting the Varifocal DC Auto Iris Lens ZOOM FOCUS Heater / Blower Specfications Only AC 24V Power Supply Power Consumption 430mA (Heater) / 40mA(Blower) On : 5 O : 7 Heater ℃ ℃ Blower Continuous 24 Hour Operation...
  • Page 8 Camera O.S.D Setup Controls LEFT ENTER DOWN RIGHT...
  • Page 9 DC Power Connecting Adaptor Power (Adaptor Plug) Video Cable RS485 -(White) (Option) RS485 +(Orange) RS485 - RS485 + Monitor PORT2 PORT1 RX TX RX AC Power Connecting Power Adaptor Video Cable RS485 -(White) (Option) RS485 +(Orange) RS485 - RS485 + Monitor PORT2 PORT1...

  • Page 10: Setup Menu Flow

    5. Setup Menu Flow EXPOSURE LENS DC, MANUAL OFF,LOW,MID,HIGH SENSE-UP AUTO, OFF, X2, X4, X8, X16, X32, X64, X128, X256, X512, X1024 BACK LIGHT BLC - BLC LEVEL<OFF, LOW, MID, HIGH> D-WDR-SET LEVEL<0~20> 3D-DNR OFF, LOW, MID, HIGH, AUTO RETURN WHITE BALANCE WB MODE ATW, MANUAL, PUSH...
  • Page 11 PRIVACY MASK1 DOT SEL DOT XY MOVE XY COLOR SET<1~8> MASK8 DOT SEL DOT XY MOVE XY COLOR SET<1~8> RETURN SPECIAL LANGUAGE 9 Language TITLE COMMUNICATION ID<0 ~ 255> BAUD RATE<2400, 4800, 9600> PROTOCOL<PELCO-D> OFF, AUTO FACTORY SET NO, YES RETURN EXIT SAVE&EXIT...

  • Page 12: Special Features

    6. Special Features 1. D-WDR(Wide Dynamic Range) D-WDR captures the images at all light levels by correcting GAMMA CURVE. If you use an ordinary camera in a scene with an intensive backlight, the object will be displayed dark on the monitor affected by the backlight. To solve this problem, you can use the D-WDR function to improve the dark part without saturation from bright part.
  • Page 13 3. 3D DNR(Digital Noise Reduction) Select 3D DNR ON or OFF. 3D-DNR function reduce the background noise in a low luminance environment. Upgraded 3D filtering ensures even more clear image. [DNR Level High : Picture image is more clear but Ghost is more increased. DNR Level Low : Picture image is not clear but less Ghost.] MAIN MENU EXPOSURE...
  • Page 14 7. Dimensions Flush Mount Surface Mount 115.0 PF 3/4” 143.2 174.7 109.0 unit : mm...

  • Page 15: Specifications

    8. SPECIFICATIONS TV System NTSC ensor Sony 1/3” Super HAD CCD II Total Pixel 811(H) X 508(V) 795(H) X 596(V) E ective Pixel 768(H) X 494(V) 752(H) X 582(V) Synchronization H/V 15.734/59.94Hz H/V 15.625/50Hz Scanning System 2:1 Interlace Horizontal Resolution 630 TV Lines Min.

  • Page 16: Product Warranty Card

    PRODUCT WARRANTY CARD 1) ITEM # : 2) S/N # : 3) INSTALLATION CONDITION - Indoor / Outdoor - Power supply SPECIFICATION : DC12V / AC24V CURRENT __________ mA 4) TROUBLESHOOTING - No picture - Bad image - No power - Water damage - LED ON / OFF...
