One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the
FEATURES
Full-featured board in conjunction with low voltage digiPOT
motherboard (EVAL-MB-LV-SDZ)
Various test circuits
Various ac/dc input signals
PC control via a separately purchased system demonstration
platform (SDP-B or SDP-S)
PC software for control
PACKAGE CONTENTS
EVAL-AD5247DBZ
EVAL-MB-LV-SDZ motherboard
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the
Electronic version of the UG-397 user guide

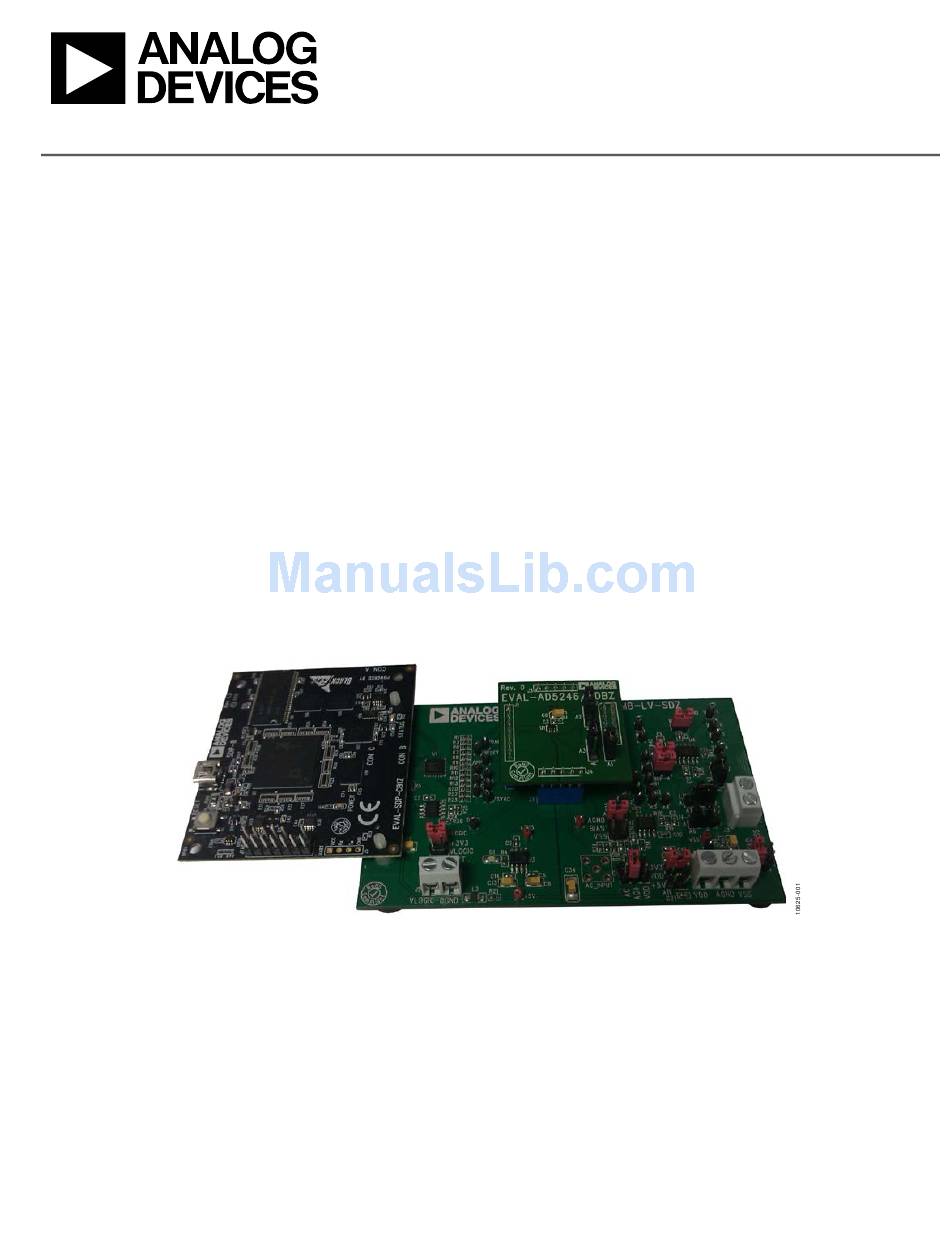

Figure 1. Digital Picture of Evaluation Board with Low Voltage digiPOT Motherboard and System Demonstration Platform
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD5247
data sheet
EVAL-AD5247DBZ
Evaluation Board User Guide
AD5247
Digital Potentiometer
GENERAL DESCRIPTION
This user guide describes the evaluation board for evaluating the
AD5247, a single channel, 128-position digital potentiometer.
The
AD5247
supports a single-supply 2.7 V to 5.5 V operation,
making the device suited for battery-powered applications and
many other applications with a superior low temperature
coefficient performance.
In addition, the
operates in fast mode, allowing speeds of up to 400 kHz.
The
EVAL-AD5247DBZ
single-supply mode and incorporate an internal power supply
from the USB.
Complete specifications for the
the
AD5247
data sheet, which is available from Analog Devices,
Inc., and should be consulted in conjunction with this user
guide when using the evaluation board.
WITH MOTHERBOARD AND SDP-B
Rev. 0 | Page 1 of 16
AD5247
uses a versatile I
2
C serial interface that
and EVAL-MB-LV-SDZ can operate in
AD5247
part can be found in
UG-397
Advertisement
Table of Contents
Related Manuals for Analog Devices UG-397
Summary of Contents for Analog Devices UG-397
-
Page 1: Features
AD5247 part can be found in board and exercise all functions of the device AD5247 data sheet, which is available from Analog Devices, Electronic version of the AD5247 data sheet Inc., and should be consulted in conjunction with this user Electronic version of the UG-397 user guide guide when using the evaluation board. -
Page 2: Table Of Contents
UG-397 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board Software ...............6 Package Contents ................1 Installing the Software ..............6 General Description ................. 1 Running the Software ..............6 EVAL-AD5247DBZ With Motherboard and SDP-B ....1 Software Operation ...............7 Revision History ................ -
Page 3: Evaluation Board Hardware
Evaluation Board User Guide UG-397 EVALUATION BOARD HARDWARE LINK OPTIONS Several link and switch options are incorporated in the EVAL- POWER SUPPLIES MB-LV-SDZ evaluation board and should be set up before The EVAL-MB-LV-SDZ supports using single power supplies. using the board. Table 2 describes the positions of the links to control the evaluation board by a PC, via the SDP board. -
Page 4: Test Circuits
UG-397 Evaluation Board User Guide TEST CIRCUITS AC Signal Attenuation RDAC can be used to attenuate an ac signal, which must be EVAL-AD5247DBZ and EVAL-MB-LV-SDZ incorporate provided externally using the AC_INPUT connector, as shown several test circuits to evaluate the AD5247 performance. - Page 5 Evaluation Board User Guide UG-397 Signal Amplifier 1.7kΩ RDAC can be operated as a noninverting signal amplifier VOUT2 – supporting pseudo logarithmic gain. Table 6 shows the available 10nF configurations. The noninverting amplifier with pseudologarithmic gain is shown in Table 6, and the gain is defined in Equation 4.
-
Page 6: Evaluation Board Software
CD. The software is compatible Click Start > All Programs > Analog Devices > AD5247 with Windows® XP, Windows Vista, and Windows 7 (both > AD5247 Eval Board. To uninstall the program, click 32 bits and 64 bits). -
Page 7: Software Operation
Evaluation Board User Guide UG-397 MANUAL WRITE SOFTWARE OPERATION SEND DATA is a customized I C data-word can be sent by The main window of the EVAL-AD5247DBZ software is divided manually switching the scroll bars from 0 to 1 or from 1 to 0 into the following sections: RDAC and MANUAL DATA. -
Page 8: Schematics And Artwork
UG-397 Evaluation Board User Guide SCHEMATICS AND ARTWORK MOTHERBOARD Figure 7. SDP Connector and Power Supply Rev. 0 | Page 8 of 16... - Page 9 Evaluation Board User Guide UG-397 Figure 8. Schematic of Test Circuits Rev. 0 | Page 9 of 16...
- Page 10 UG-397 Evaluation Board User Guide Figure 9. Schematic of Connectors to Daughter Board Figure 10. Component Side View Rev. 0 | Page 10 of 16...
- Page 11 Evaluation Board User Guide UG-397 Figure 11. Component Placement Drawing Figure 12. Layer 2 Side PCB Drawing Rev. 0 | Page 11 of 16...
-
Page 12: Daughter Board
UG-397 Evaluation Board User Guide DAUGHTER BOARD Figure 13. Schematic of Daughter Board Rev. 0 | Page 12 of 16... - Page 13 Evaluation Board User Guide UG-397 Figure 14. Component Side View Figure 15. Component Placement Drawing Rev. 0 | Page 13 of 16...
- Page 14 UG-397 Evaluation Board User Guide Figure 16. Layer 2 Side PCB Drawing Rev. 0 | Page 14 of 16...
-
Page 15: Ordering Information
Evaluation Board User Guide UG-397 ORDERING INFORMATION BILL OF MATERIALS Table 7. Motherboard Reference Designator Description Supplier /Part Number BUF-3, BUF-4, BUF-W1 2-pin (0.1" pitch) header and shorting shunt FEC 1022247 and FEC 150-411 A6, A7, A8 3-pin SIL header and shorting link... - Page 16 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
