technical specifications

Caring for your unit
Your unit should not be allowed to get wet or be left in excessive sunlight. It
may be cleaned regularly using a soft cloth, lightly dampened in soapy
water. Do not allow the interior of your unit to become wet. Do not use
detergents, alcohol, spray aerosols or strong solvents on your unit.
Access to the interior of the unit is not required for maintenance purposes.
If your unit is damaged, you should not use it but should return it to
or your local distributor for replacement or repair. Repairs, service and
modifications may not be carried out by anyone other than qualified service
personnel authorised by
SLENDERTONE
: Under no circumstance should anything other than the correct
IMPORTANT
type of batteries - (rechargeable batteries 3.6V NiMH) be used with your
unit. These can be purchased from the
Disposing of the pads and batteries
Used pads and batteries must never be disposed of in a fire but in accordance
with your country's national laws governing the disposal of such items.
Accessories:
Under no circumstances should anything other than
be used with your
SLENDERTONE
others may not be compatible with your unit and could degrade the minimum
safety levels. You can purchase all accessories at www.slendertone.com.
Female Belt (E:70)
SLENDERTONE ABS
Male Belt (X:70)
SLENDERTONE ABS
Pads: • 1 large adhesive pad (Type 706 or 709)
SLENDERTONE ABS
• 2 small adhesive pads (Type 707 or 710)
(E:30)
SLENDERTONE BOTTOM
Pads: • 4 large adhesive pads (Type 716)
SLENDERTONE BOTTOM
Female (E:60)
SLENDERTONE ARMS ACCESSORY
Male (X:60)
SLENDERTONE ARMS ACCESSORY
Pads: • 4 small adhesive pads - Female (Type 715)
SLENDERTONE ARMS
• 4 small adhesive pads - Male (Type 718)
Belt Extension
SLENDERTONE
Battery pack (3.6V, NiMH)
Battery Charger (EU - 2504-0303)
Battery Charger (US/Japan - 2504-0302)
Charger complies to EN 60950, Input: nominal voltage 100-240V, frequency 50-
60Hz, current 125mA. Do not use any other chargers or any other power supplies.
Classification: Internally powered equipment, Class II charger, Type BF
applied parts.
Product Type: 390
Intended use: Muscle stimulator
Notes:
- The signal gradually increases to a peak intensity level at the start of the
contraction phase (i.e. ramp up) and gradually decreases to nothing at the
start of the relaxation phase (i.e. ramp down). When the start of the relaxation phase (i.e. ramp down). When the
flashing, the stimulus is significantly reduced.
- In accordance with the laws within the member state, safety testing on
the device should be carried out every two years.
- In compliance with German law, product safety testing must be conducted
every two years by an authorised test service.
Environmental Specifications:
Operating: Temperature Range: 0 - 35°C (32 - 95°F)
Humidity: 20 - 65 % RH
Storage: Temperature Range: 0 - 35°C (32 - 95°F)
Humidity: 20 - 85 % RH
18
.
careline.
SLENDERTONE
SLENDERTONE
charger or unit (Type 390). Any
SLENDERTONE
symbol is symbol is
Waveform: Symmetrical bi-phasic square waveform when measured into a
resistive load.

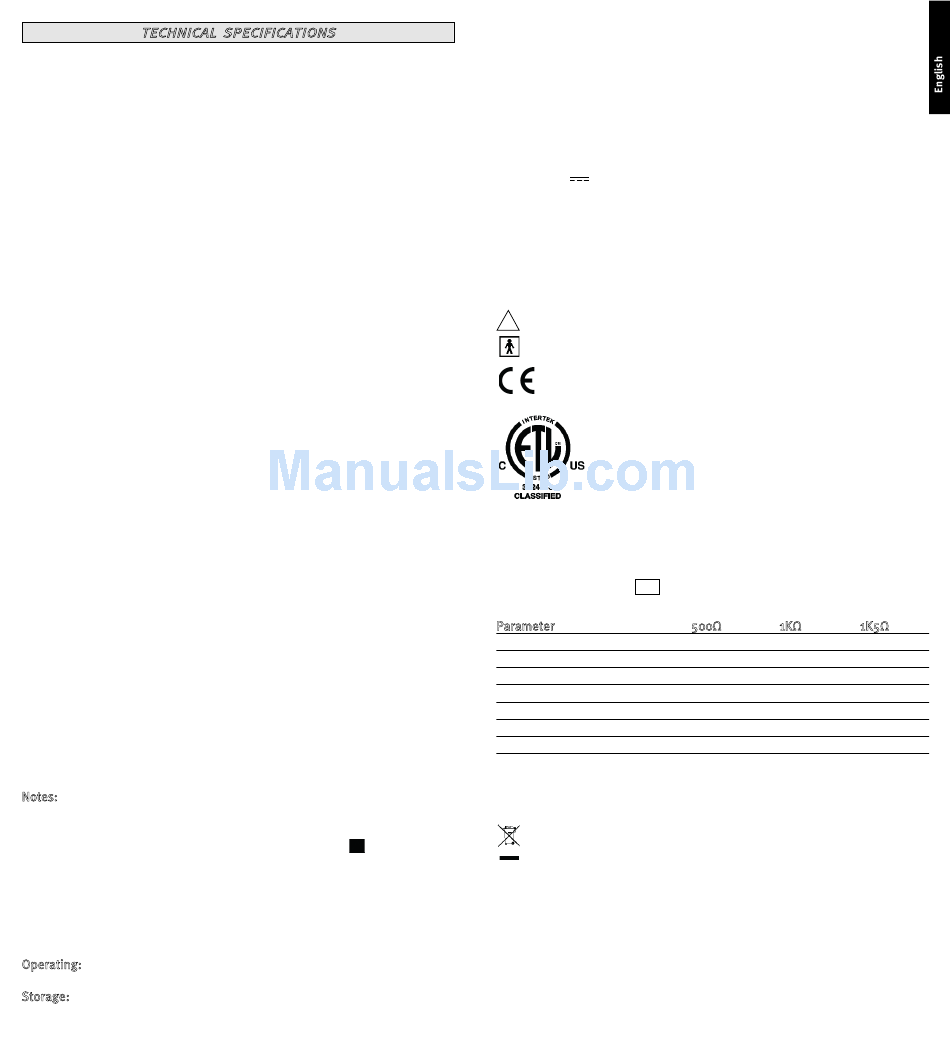

Description of your unit's symbols:
There are a number of technical markings on your unit. These can be explained
as follows:
The unit and belt are manufactured for Bio-Medical Research Ltd, Parkmore
Business Park West, Galway, Ireland.
The unit requires 1 x 3.6 volt (NiMH) DC battery pack DC is indicated by
SLENDERTONE
the symbol:
The Output Frequency indicates the number of pulses per second transmit-
ted by the unit. This is measured in hertz, which is indicated by "Hz".
Output (RMSA) means the maximum output root mean square current for
each channel.
Output (RMSV) means the maximum output root mean square voltage for
each channel.
This symbol means "Attention, consult the accompanying documents".
!
This symbol means type BF applied parts.
accessories
This symbol on your unit is to indicate conformity to the require-
ments of the Medical Device Directive (93/ 42/EEC). 0366 is the
0366
number of the notified body (VDE).
SN stands for 'serial number'. Inside the box, on the back of the unit is the
serial number specific to this unit. The letter preceding the number indicates
the year of manufacture, where "P" denotes 2010, "Q" denotes 2011 etc.
The belt's batch number is represented on the belt packaging, by the number
corresponding with the LOT symbol.
Rated Outputs – Voltage/Currents: E:70 and X:70
Parameter
Output RMSV
Output RMSA
Output Frequency
DC Component: Approx.
Positive Pulse Width:
Negative Pulse Width:
Interphase Interval:
Attention:
This unit can deliver currents in excess of 2mA/cm
electrodes.
At the end of the product lifecycle, do not throw this product into the
normal household garbage, but bring it to a collection point for the
recycling of electronic equipment.
Some product materials can be re-used if you bring them to a recycling
point. By re-using some parts or raw materials from used products you
make an important contribution to the protection of the environment.
Please contact your local authorities if you need more information
about collection points in your area.
Waste Electrical and Electronic Equipment can have potentially harmful
effects on the environment. Incorrect disposal can cause harmful toxins
to build up in the air, water and soil and can be harmful to human
health.
Conforms to UL STD 60601-1.
Certified to CAN/CSA.
STD C22.2 NO 601.1
500Ω 1KΩ
7.35V 13.1V
14.7mA 13.1mA
50-70Hz 50-70Hz
0 C
200-315µs 200-315µs
200-315µs 200-315µs
100 µs 100 µs
2
1K5Ω
15.5V
10.3mA
50-70Hz
0 C 0 C
200-315µs
200-315µs
100 µs
if used with incorrect
