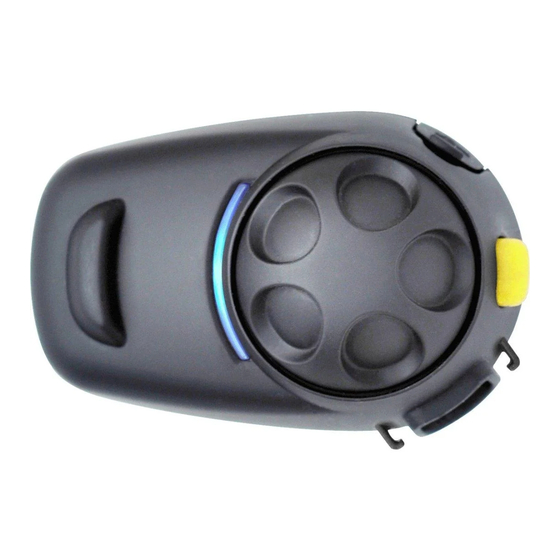

Bluetooth headset & intercom with built-in fm tuner for scooters and motorcycles
Hide thumbs Also See for SMH5 FM:
Table of Contents

Advertisement

SMH5 FM
Bluetooth
®
Headset & Intercom with
built-in FM tuner for Scooters and
Motorcycles
User's Guide
www.SenaBluetooth.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMH5 FM and is the answer not in the manual?

Questions and answers

Summary of Contents for Sena SMH5 FM

  • Page 1 SMH5 FM Bluetooth ® Headset & Intercom with built-in FM tuner for Scooters and Motorcycles User's Guide www.SenaBluetooth.com...
  • Page 2 These trademarks may not be used without the express permission of Sena. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod ®...
  • Page 3: Table Of Contents

    • FCC RF Exposure Statement .....................33 8. PAIRING WITH OTHER SMH5-FM HEADSETS FOR INTERCOM CONVERSATION ..16 • FCC Caution ..........................33 9. PAIRING WITH OTHER SENA HEADSET MODELS FOR INTERCOM CONVERSATION ...17 • CE Declaration of Conformity ....................33 • Industry Canada Statement .......................34 10.
  • Page 4: Introduction

    Please read this user’s guide carefully before using the headset. Also 1. INTRODUCTION check www.SenaBluetooth.com for the latest version of the user’s guide and additional information related to Sena Bluetooth products. Thank you for choosing the Sena SMH5-FM, Bluetooth Stereo The SMH5-FM features: Headset and Intercom for scooters and motorcycles.
  • Page 5: Package Contents

    SMH5-FM 2. PACKAGE CONTENTS • Clamp Unit • Headset Main Unit • Helmet Speakers • Microphone •Charging LED - Open-face Helmet Kit ∙ Attachable Boom Microphone ∙ Velcro Pad for Boom Microphone Jog Dial Phone Button ∙ Attachable Boom Microphone Holder DC Power Charging &...
  • Page 6: Installing The Smh5-Fm On Your Helmet

    SMH5-FM - Full-face Helmet Kit 3. INSTALLING THE SMH5-FM ON YOUR HELMET ∙ Wired Microphone 1. Loosen the two screws on the back plate of the clamp using the enclosed Allen Wrench. Insert the back plate of the clamp unit ∙...
  • Page 7 Sena recommends the clamp unit over the glued surface mounting plate. Even though the glued surface mounting plate is provided for convenience, Sena does not assume any responsibility for use of it. Users may have to use the glued plate at their own risk and responsibility.
  • Page 8 SMH5-FM You can use the enclosed velcro pad and holder for the boom 6. When you use the boom microphone included in the “Basic Kit”, microphone to ensure secure placement. please make sure that the fin side of the microphone is facing outward;...
  • Page 9: Powering On/Off And Charging

    SMH5-FM 4. POWERING ON/OFF AND CHARGING Note: Insert the speaker cable connector into the main unit and push the connector cover down to lock the connector in place. To power on and off the headset, you don’t need to press and hold any button for several seconds.
  • Page 10: Low Battery Warning

    Then you will hear a voice prompt indicating the battery level. However, if you release the buttons as soon as the headset turns on, you will not hear the voice prompt for the battery level. *please contact Sena regarding locally approved agencies Sena accepts.
  • Page 11: Pairing The Smh5-Fm With Bluetooth Devices

    SMH5-FM 2. Search for Bluetooth devices on your mobile phone. Select the 6. PAIRING THE SMH5-FM WITH BLUE- Sena SMH5-FM in the list of the devices detected on the mobile phone. TOOTH DEVICES 3. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN.
  • Page 12: Bluetooth Stereo Device Pairing

    You will hear a voice prompt saying “Multipoint pairing”. connection and play. 3. Search for Bluetooth devices on the GPS navigation screen. Select the Sena SMH5-FM in the list of the devices detected on the GPS. 4. Enter 0000 for the PIN.
  • Page 13 SMH5-FM 6.3.2 GPS Pairing as Mobile Phone 5. T he GPS confirms that pairing has completed and the SMH5-FM is ready to use. You will hear a voice prompt from the SMH5-FM If GPS is not only used for turn-by-turn voice instructions but also is saying “Your headset is paired”.
  • Page 14: Pairing With Selective Profile: A2Dp Stereo Or Handsfree

    “Media selective pairing”. A2DP stereo music only or for mobile phone handsfree only. This 3. Search for Bluetooth devices on your smartphone. Select the Sena instruction is for advanced users who want to pair the SMH5-FM to SMH5-FM in the list of devices detected on your phone.
  • Page 15: Pairing With Other Smh5-Fm Headsets For Intercom Conversation

    SMH5-FM 8. PAIRING WITH OTHER SMH5-FM HEADSETS FOR INTERCOM CONVERSATION The SMH5-FM can be paired with up to three other headsets for Bluetooth Intercom conversation. 1. Turn on the two SMH5-FM headsets (A and B) that you would like to pair with each other. 2.
  • Page 16: Pairing With Other Sena Headset Models For Intercom Conversation

    MODELS FOR INTERCOM CONVERSATION previous Intercom friend becomes second intercom friend, and third intercom friend. The SMH5-FM can be paired with all other Sena headset models Note: such as the SMH10 and the SPH10 for intercom conversation. Please For example, after the pairing procedures listed above, headset D is the follow the same procedure as above to pair with these headset first intercom friend of headset A.
  • Page 17: Smh5-Fm Configuration Setting

    SMH5-FM The voice prompt for each menu item is as below: 10. SMH5-FM CONFIGURATION SETTING (1) Speed dial (4) Voice prompt (2) RDS AF (5) Delete all pairings You can set the configuration of the SMH5-FM by the voice menu (3) VOX phone (6) Exit configuration instruction as below. 1. To enter into voice configuration menu, press and hold the Jog Speed dial Dial for 12 seconds until the LED shows solid blue and you hear...
  • Page 18: Enabling/Disabling Rds Af

    1. After assigning a phone number to one of three speed dials, you can continually assign another phone number to the rest of two speed dials. 2. You can assign phone numbers to speed dials in your PC. Please visit the Sena Bluetooth web site at www.SenaBluetooth.com for more information.
  • Page 19: Enabling/Disabling Voice Activated Phone Answering

    SMH5-FM 10.3 Enabling/Disabling Voice Activated Phone Answering 10.4 Enabling/Disabling Voice Prompts Voice Prompt “VOX phone” Voice Prompt “Voice prompt” Factory Default Enable Factory Default Enable Enable Tap the Phone Button Enable Tap the Phone Button Disable Tap the Jog Dial Disable Tap the Jog Dial If this feature is enabled, you can answer incoming calls by simply...
  • Page 20: Exit Voice Configuration Menu

    SMH5-FM 10.6 Exit Voice Configuration Menu 11. USING THE SMH5-FM Voice Prompt “Exit configuration” Factory Default 11.1 Volume Adjustment Enable Tap the Phone Button You can easily adjust the volume by rotating the Jog Dial. You will To exit voice configuration menu and get back to stand-by mode, hear a beep when the volume reaches maximum or minimum level.
  • Page 21: Speed Dialing

    SMH5-FM 11.3 Speed Dialing 5. To transfer a call between the mobile phone and the headset during the phone conversation, press the Phone Button for 2 seconds until You can quickly make a phone call by using the voice speed dial you hear a beep.
  • Page 22: Intercom Conversation

    SMH5-FM 11.4 Intercom Conversation 6. If you want to exit the speed dial immediately, rotate the Jog Dial until you hear a voice prompt saying “Cancel”, and tap the 1. You can start an intercom conversation with any of intercom Phone Button or the Jog Dial.
  • Page 23: Intercom And Mobile Phone Call

    SMH5-FM 11.5 Intercom and Mobile Phone Call 2. When you have an incoming intercom call during a mobile phone call, you will hear 4 high tone beeps, alerting you that there is an 1. When you have an incoming mobile phone call during an intercom incoming intercom call.
  • Page 24: Fm Radio

    You can save FM stations to presets before using FM radio. Connect SMH5- station. FM to your PC and open the Sena Device Manager. It allows you to save FM 11.8.3 Seek and Save station frequencies up to 10 presets on the SMH5-FM setting menu.
  • Page 25: Stereo Music

    SMH5-FM 11.9 Stereo Music 11.8.4 Scan and Save “Scan” is the function that searches from the current station frequency You can listen to stereo music by Bluetooth wireless stereo. The upward for stations in a whole range of FM frequencies. To use the Bluetooth audio device must be paired with the SMH5-FM by following scan function, please follow the procedures below: the Bluetooth Stereo Device Pairing instructions described in the 6.2...
  • Page 26: Function Priority

    SMH5-FM 11.10 Function Priority - To play or pause music, press and hold the Jog Dial for 1 second until you hear a double beep. The SMH5-FM operates in the following order of priority: (Highest) Mobile Phone, Intercom, Music sharing by Bluetooth stereo music, FM Radio, (Lowest) Bluetooth Stereo Music A lower priority function is always interrupted by a higher priority function.
  • Page 27: Music Sharing

    GPS during music sharing, the function will be paused. 3. In order to share music, make sure that you update both headsets with the firmware that has the music sharing feature, and enable the EDR setting in the Sena Device Manager.
  • Page 28: Fault Reset

    The SMH5-FM supports firmware upgrade function. Please visit pin-hole and press the reset button for a second with light pressure. Sena Bluetooth web site at www.SenaBluetooth.com to check the The SMH5-FM will be switched off after which time, you have to turn latest software downloads.
  • Page 29: Operation Quick Reference

    SMH5-FM Type Operation Button Duration Beep 13. OPERATION QUICK REFERENCE Play & pause Mid-tone double Jog Dial 1 sec — music beeps Music Rotating Track-forward & Jog Dial while — — track-back Type Operation Button Duration Beep pressing Phone Button Mid-tone single Power-on 1 sec...
  • Page 30: Battery Information

    Recharge the Stop scanning Double High tone double Phone Button — (FM mode) tapping beeps battery only with Sena approved chargers designated for this device. Save preset while Use of an unapproved charger may present a risk of fire, explosion, High tone double scanning Phone Button Tapping — FM Radio beeps leakage, or other hazard.
  • Page 31: Maintenance And Care

    SMH5-FM MAINTENANCE AND CARE DISPOSAL The Product should be treated with care and the following suggestions The crossed-out wheel bin symbol on the product, will help you protect your warranty coverage. literature, or packaging reminds you that all electrical 1. Do not use or store the device in dusty, dirty areas. Its moving parts and electronic products, batteries, and accumulators and electronic components can be damaged.
  • Page 32: Certification And Safety Approvals

    This product is CE marked according to the provisions of the R&TTE communications. However, there is no guarantee that interference Directive (99/5/EC). Hereby, Sena declares that this product is in will not occur in a particular installation. If this equipment does...
  • Page 33: Industry Canada Statement

    ® Agents, Contractors, Sponsors, Employees, Suppliers and Resellers SIG, Inc. and any use of such marks by Sena is under license. Other (jointly referred to as the “Company” or “Sena”) strongly advise you to trademarks and trade names are those of their respective owners.
  • Page 34 (including attorney’s fees) and accrue to you on some future date as a result of said use, to the holding Sena harmless for any bodily injuries, harm or death as well fullest extent permitted by law.
  • Page 35: Two-Year Limited Warranty

    Customer to adhere to any of Sena’s specifications or instructions; (c) HEREUNDER OR THE PERFORMANCE, USE OR INABILITY TO USE neglect of, abuse of, or accident to, the Product; or (d) any associated THE SAME, EVEN IF SENA OR ITS DEALER HAS BEEN ADVISED OF...
  • Page 36: Return For Full Refund

    THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL SENA OR ITS DEALERS TOTAL LIABILITY EXCEED THE PRICE PAID FOR Sena informs that using this device in public traffic may not be THE PRODUCT. authorized by the law. Please check your local law and use this...
  • Page 37 1.3.0 www.SenaBluetooth.com User's Guide for Firmware v1.3...
