Summary of Contents for Sena SMH5-FM
- Page 1 | SMH5 SMH5-FM SMH5 Bluetooth Headset & Intercom for Scooters and Motorcycles SENA www.senabluetooth.com Users Guide v1.0.0...
- Page 2 | SMH5 INTRODUCTION Thank you for choosing the SENA SMH5, Bluetooth Stereo Headset and Intercom for motorcycles. With the SMH5, you can call hands-free on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigations by Bluetooth wirelessly, and have intercom conversations in full duplex with a passenger or other motorcycle riders.
-
Page 3: Package Contents

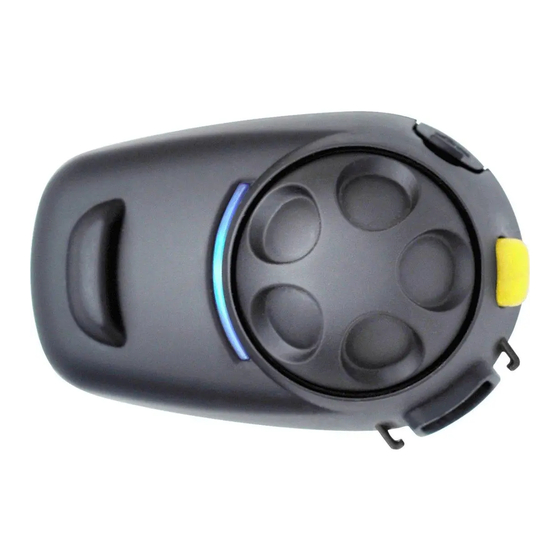

| SMH5 PACKAGE CONTENTS Headset Main Unit Phone Button ● Making and Answering a mobile phone call ● Entering into Mobile Phone Pairing Mode ● Entering into Bluetooth Audio Device Pairing Mode (MP3, GPS navigation) ● Entering into Voice Activated Phone Answering Setting Mode Jog Dial ●... - Page 4 | SMH5 USB Power Cable Microphone Sponges Velcro Pads Hex Key (Allen Wrench)
-
Page 5: Powering On/Off And Charging
| SMH5 POWERING ON/OFF AND CHARGING To power on and off the headset, you don’t need to press and hold any button for several seconds. Just short press the Jog Dial and the Phone Button simultaneously, and you will get quick on-and-off convenience. Powering On Press the Jog Dial and the Phone Button at the same time for about 1 second to power on. -
Page 6: Pairing The Smh5 With Bluetooth Devices
| SMH5 PAIRING THE SMH5 WITH BLUETOOTH DEVICES Before using the SMH5 Bluetooth headset with any of Bluetooth devices for the first time, you need to do the pairing operation. It can be paired with Bluetooth mobile phones, Bluetooth audio devices such as MP3 or GPS, and with other SMH5 Bluetooth headsets. -
Page 7: Pairing With Selective Profile: A2Dp Stereoor Handsfree
| SMH5 PAIRING WITH SELECTIVE PROFILE: A2DP STEREOOR HANDSFREE If you have a MP3 stereo music phone such as a Smartphone, sometimes you may need to selectively use the SMH5 for A2DP stereo music only or for mobile phone hands-free only. This instruction is for advanced users who want to pair the SMH5 to their Smartphones only with one selective profile: A2DP Stereo for music or HFP for phone call. -
Page 8: Pairing With Other Smh5 Headsets For Intercom Conversation
| SMH5 PAIRING WITH OTHER SMH5 HEADSETS FOR INTERCOM CONVERSATION The SMH5 can be paired with up to three other headsets for Bluetooth Intercom conversation. 1. Turn on the two headsets (A and B) that you would like to pair with each other. 2. -
Page 9: Using The Smh5
| SMH5 USING THE SMH5 Volume Adjustment You can easily adjust the volume by rotating the Jog Dial. You will hear a beep when the volume reaches maximum or minimum level. The volume is set and maintained separately at different levels for each function even when you turn off and on the headset. - Page 10 | SMH5 Enabling/Disabling Voice Activated Phone Answering (Factory Default: Disabled) If this feature is enabled, you can answer incoming calls by simply saying a word loudly enough. For example, when you hear a series of beeps by an incoming call, you can answer the phone by saying “Hello” or any other word loudly. The factory default setting is disabled.
- Page 11 | SMH5 Press and hold the Jog Dial for 8 seconds until the red LED turns on solidly. When you do this, after first 5 seconds you press the Jog Dial, you will see the headset enters into the Intercom Pairing sequence, but you have to keep pressing the Jog Dial for another 3 seconds until the LED turns to solid red.
- Page 12 | SMH5 Tip: The Jog Dial is for any kind of Intercom related function, and the Phone Button is for any functions of mobile phone. With this reason, as far as intercom function is concerned, the Jog Dial is used for a positive manner of action such as enabling, and the Phone Button is for a negative manner of action such as disabling.
- Page 13 | SMH5 Function Priority The SMH5 operates in the following order of priority: (highest) Mobile phone, Intercom, Stereo music by audio cable, and (lowest) Bluetooth stereo music A lower priority function is always interrupted by a higher priority function. For example, stereo music is interrupted by intercom call, and intercom conversation is interrupted by incoming mobile phone call.
-
Page 14: Fault Reset
| SMH5 while pressed Number(ex. One) Scan Start Phone Button 2 tab stay for 8" Scan Stop Phone Button 2 tab Preset Save Preset save and stop Number(ex. while Scan Phone Button scanning high-tone double One) Temporary Preset Phone Button 3 tab Fault Reset When the SMH5 is not working properly or is in faulty status with any reason, you may reset by pushing the pin-hole reset... -
Page 15: Firmware Upgrade
| SMH5 FIRMWARE UPGRADE The SMH5 supports firmware upgrade function. Please visit SENA Bluetooth web site at www.SenaBluetooth.com check the latest software downloads. -
Page 16: Operation Quick Reference
| SMH5 OPERATION QUICK REFERENCE Button Description Duration Beep Phone Button + Power-on 1 sec Solid blue Ascending beeps Jog Dial Power-off Tapping Solid red Descending beeps Blue &red High-tone multiple Phone Button Mobile phone pairing 5 sec alternatively flashing beeps Blue &red High-tone multiple... -
Page 17: Certification And Safety Approvals
| SMH5 CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. - Page 18 CE Declaration of Conformity This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). Hereby, SENA declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.senabluetooth.com.
