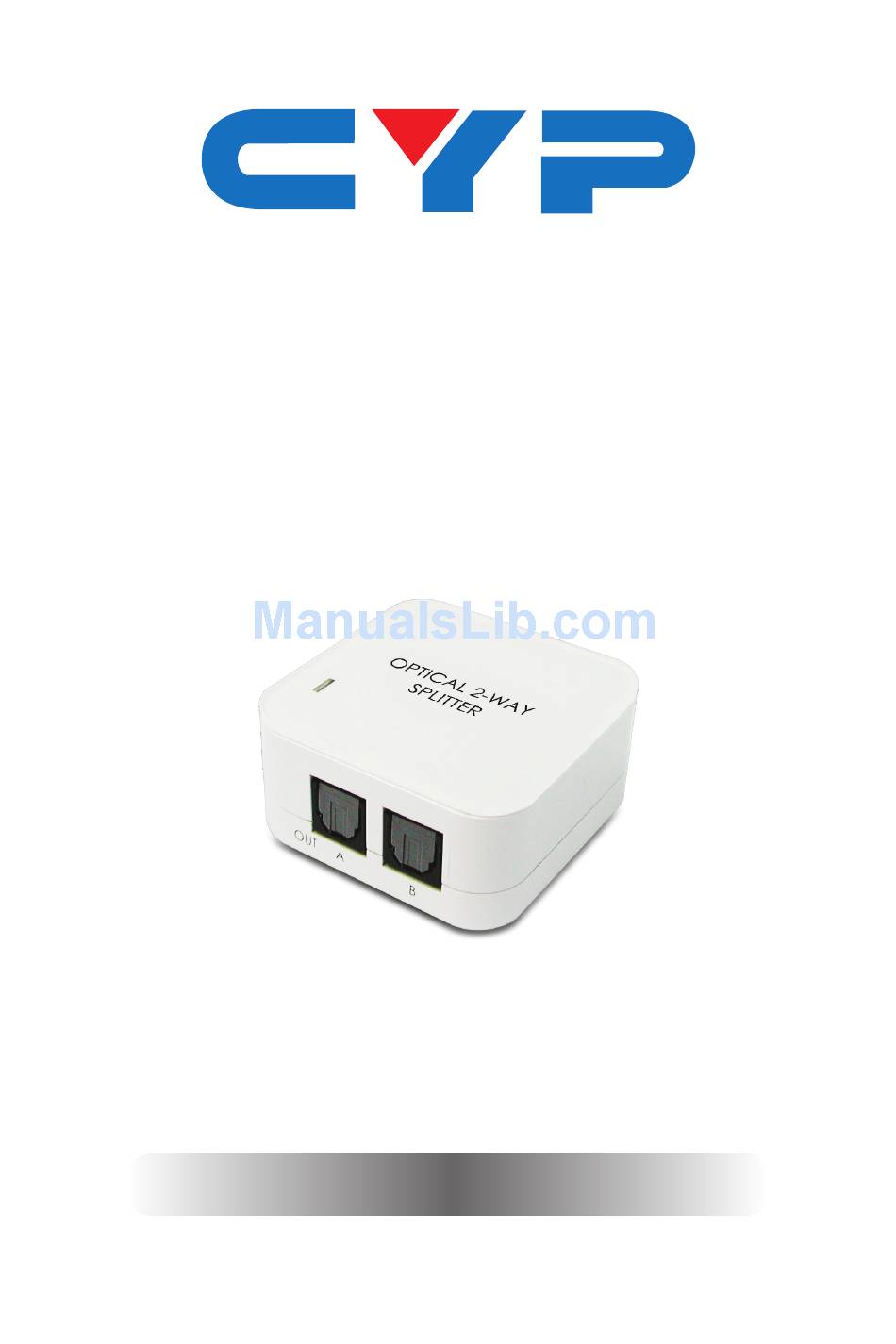

  • Page 1 DT-12 Digital Optical Audio Splitter Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Revision History

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 6.3 Left Panel ..........4 6.4 Top Panel ..........4 7.

  • Page 6: Introduction

    1. INTRODUCTION The Optical Digital Audio Splitter can split a single optical digital input to two outputs to lengths of up to 5m, using TOSLink optical cables, reliably and without loss of quality. It is designed to be compact, easy to install and use making it ideal for home or professional audio distribution.

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL OPTICAL IN Connect the TOSLink input port to the TOSLink output of source equipment such as games console, set-top box or DVD player. 6.2 Rear Panel OPTICAL OUT A/B Connect the TOSLink outputs to the TOSLink inputs of audio equipment such as an AV receiver or active speakers.

  • Page 8: Left Panel

    6.3 Left Panel DC 5V DC 5V Connect the 5V DC power supply to the unit and plug the adaptor into an AC wall outlet. 6.4 Top Panel OPTICAL 2-WAY SPLITTER Power LED The LED will illuminate when connected to a power supply.

  • Page 9: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player Optical Digital Audi Input OPTICAL 2-WAY SPLITTER Optical Optical Digital Audio Digital Audio Output Output CH-304TX AV Receiver CAT Cable CH-304RX Active Speakers...

  • Page 10: Specifications

    8. SPECIFICATIONS Input Port 1×Optical (TOSLink) Output Ports 2×Optical (TOSLink) Power Supply 5 V/0.5 A or 0.36 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 46 mm (W)×45.5 mm (D)×23.5 mm (H) Weight 22 g Chassis Material Plastic Silkscreen Color White Operating Temperature 0 °C ~ 40 °C 9.
  • Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-DT12...
