- Page 1 QU-2-4K22 CPLUS-V2E 1 by 2 6G HDMI Splitter Operation Manual Operation Manual...
-
Page 2: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 4: Introduction
1. INTRODUCTION The 1 by 2 HDMI Splitter with HDCP 2.2 is advanced solution for splitting a single HDMI input to 2 HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV444) resolution and is capable of provide high quality of audio and video performance. -
Page 5: Features
5. FEATURES • HDMI 2.0 with 4Kx2K 6G supported, HDCP 2.2 and DVI compliant (Not support Deep color and Color space YCbCr 422/444) • 1 HDMI input and 2 HDMI outputs • System Reset function supported( CEC active source command) •... -
Page 6: Operation Controls And Functions

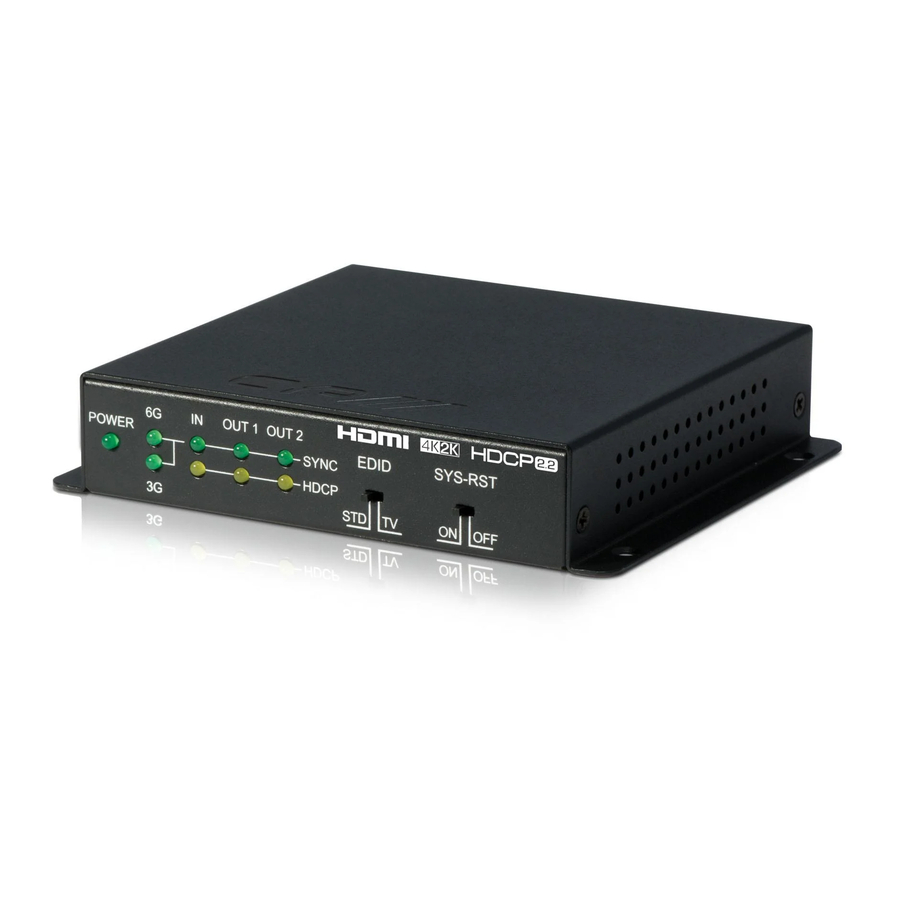

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OUT 1 OUT 2 OUT 1 OUT 2 POWER POWER EDID EDID SYS-RST SYS-RST SYNC SYNC HDCP HDCP 1 2 4 1 2 4 POWER: This LED will illuminate when the device is connected to an active power supply. -
Page 7: Rear Panel
SYS-RST: Switch the dip from off to on, the unit will trigger TV to it’s HDMI input immediately, when dip stays in on, the unit will trigger cycle in every 8~10 minutes. (*The purpose of reset is to guarantee output display the corresponding image, for example, at the display user use may switch to different HDMI input or other sources connected to display and this reset function will force the display to switch back to the HDMI input which TV shall support CEC.) -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply OUTPUT INPUT SERVICE DC 5V Simultaneous HDMI Outputs Projector UHDTV... -
Page 9: Specifi Cations
8. SPECIFICATIONS 8.1 Technical Specifi cations Video Bandwidth 600 MHz/18 Gbps Input Ports 1×HDMI, 1×USB (Service only) Output Ports 2×HDMI HDMI Resolutions VGA~WUXGA (RB), 408i~1080p@24/50/60, 4K@24/25/30, 4K@50/60 (YUV444) HDMI Cable Distance 15 m@1080p/8-bit, 10 m@1080p/12-bit, 5 m@4K Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certifi... -
Page 10: Supported Resolutions
8.2 Supported Resolutions Resolution Input Output 640×480@60/72/75/85 √ √ 720×400@85 √ √ 800×600@56/60/72/75/85 √ √ 1024×768@60/70/75/85 √ √ 1152×864@75 √ √ 1280×720@60 √ √ 1280×768@60/75/85 √ √ 1280×800@60 √ √ 1280×960@60 √ √ 1280×1024@60 √ √ 1360×768@60 √ √ 1366×768@60 √... -
Page 11: Acronyms
Resolution Input Output 1920×1080p@23.97/24/25/29.97/30/50/59.94/60 √ √ 3840×2160@24/25/30/50/60 √ √ 4096×2160@24/25/30/50/60 √ √ 9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Defi nition Multimedia Interface HDTV High-Defi...
