Summary of Contents for Clarke Contractor CFN34

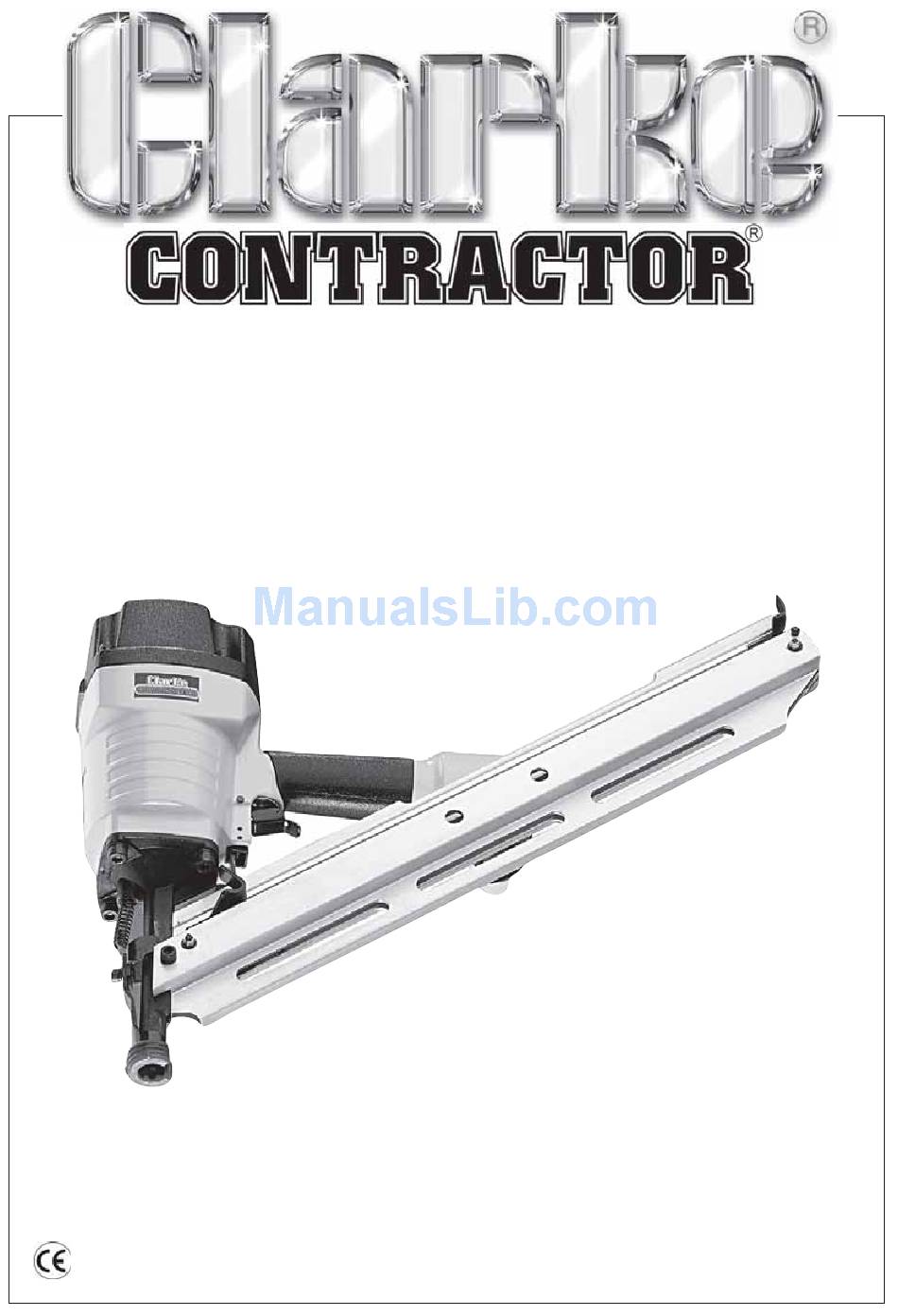

- Page 1 Clipped Head Air Frame Nailer MODEL: CFN34 Part No. 3110397 OPERATING & MAINTENANCE OPERATING & MAINTENANCE INSTRUCTIONS INSTRUCTIONS 1207...
-
Page 2: Specifications
Part No ............3110397 Please note that the details and specifications contained herein, are correct at the time of going to print. However CLARKE International reserves the right to change specifications at any time without prior notice. Always consult the machine’s data plate... -
Page 3: Declaration Of Conformity
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 4: Safety Precautions
Do not use the nailer for any other purpose than that described in this book. • Do not carry out any alterations or modifications to the nailer. • Use ONLY replacement parts and accessories provided by CLARKE International. The use of other parts may invalidate your guarantee. - Page 5 SAFETY PRECAUTIONS cont.: • Always disconnect from the air supply when: Performing any maintenance such as clearing a jammed nail. The nailer is not in use. The nailer will be left unattended. Moving to another work area. Passing the nailer to another person. •...
-
Page 6: Preparation For Use
It is essential that the air nail gun is lubricated before each use. Use the CLARKE Air Line Oil provided with your nailer to lubricate the safety yoke and trigger mechanism. Do not use detergent oils or any oil that contains artificial additives these may cause the nail gun to malfunction. -
Page 7: Loading Nails
LOADING NAILS Always disconnect the nailer from the air supply before loading nails. Pull the nail pusher back as far as possible until the catch clicks into place. Slide the nails through the loading slot into the magazine as shown. Press the release latch on the rear of the magazine and slide the nail pusher forward. -
Page 8: Clearing A Jam
Avoid triggering the nailer when the nail magazine is empty. If the nailer operates improperly or is defective, disconnect from the air supply and have the tool inspected by a qualified service technician. In the event of long breaks in work or at the end of the working session, disconnect the tool from the air supply and empty the nail magazine. -
Page 9: Maintenance
• Place 2 or 3 drops of lubricating oil into the air intake hose connection point twice a day when the nailer is being used. A bottle of CLARKE Air Line Oil** is supplied with the kit. CLEANING •... -
Page 10: Parts Diagram
PARTS DIAGRAM... -
Page 11: Parts List
PARTS LIST No. Description Part No. No. Description Part No. Bolt M8X30 HTCFN34001 Compressed spring HTCFN34049 Air deflector HTCFN34002 Bolt M5x8 HTCFN34050 Deflector rubber HTCFN34003 Flat washer HTCFN34051 Spring HTCFN34004 Spring washer HTCFN34052 Spring wire HTCFN34005 Adjust nut HTCFN34053 Bolt M6X30 HTCFN34006 Safety yoke HTCFN34054...
