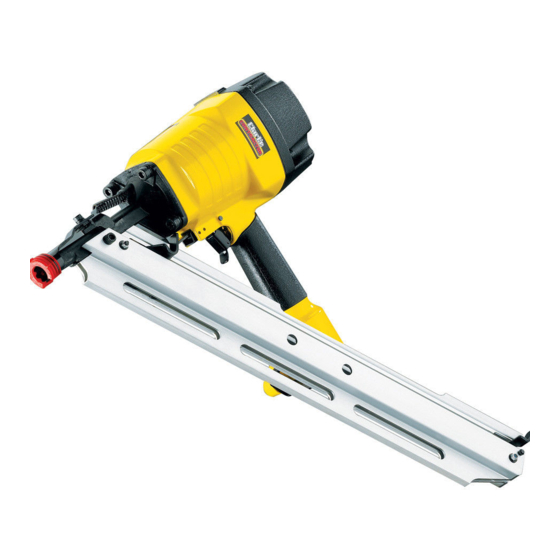

- Page 1 AIR FRAME NAILER MODEL NO: CFN34 PART NO: 3110397 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1220 - REV 1...
-
Page 2: Specification
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Warnings
SAFETY WARNINGS SAFETY OF THE NAIL GUN 1. Check prior to use that the safety and triggering mechanism is functioning properly and that all nuts and bolts are tight. 2. Do not carry out any modifications to the nail gun. 3. -
Page 4: Connection To The Compressed Air System
CONNECTION TO THE COMPRESSED AIR SYSTEM WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSED AIR AND COMPRESSED AIR SUPPLIES. 1. Ensure that the pressure supplied by the compressed air system does not exceed the maximum allowable pressure of the nail gun. -
Page 5: Product Overview
• OIl bottle • 4 x hex keys (3,4, 5 & 6 mm) • moulded carry case Contact your Clarke dealer immediately if any parts are missing or damaged. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 6: Preparation For Use
It is essential that the air nail gun is lubricated before each use. 1. Use the CLARKE airline oil provided with your nailer to lubricate the safety yoke and trigger mechanism. Do not use detergent oils or any oil that contains artificial additives these may cause the nail gun to malfunction. - Page 7 • The nailer should not operate. If it does the safety mechanism is faulty. Do not use the nailer. Return it for repair to the place of purchase. 2. Release the trigger and with your finger off the trigger, press the safety yoke against a scrap piece of timber.
-
Page 8: Loading Nails
LOADING NAILS Always disconnect the nailer from the air supply before loading nails. 1. Pull the nail pusher back as far as possible until the catch clicks into place. 2. Slide the nails through the loading slot into the magazine as shown. 3. -
Page 9: Operation
OPERATION 1. Turn ON the air supply and check for air leaks. If any are apparent, rectify before proceeding. 2. Ensure the operating pressure is set to between 5.51 - 7.58 bar (80 - 110 psi), depending upon the size of nail used and type of material being worked. •... -
Page 10: Clearing A Jam
If an air system oiler is not being used, lubricate the nail gun every 2 hours with a few drops of air line oil, dripped into the air inlet. Clarke Airline Oil is available from your CLARKE dealer part no. 3050825. • Only use the oil provided to lubricate the nail gun. -
Page 11: Service And Repair
CLARKE dealer. The use of parts other than CLARKE replacement parts may result in safely hazards, decreased tool performance and will invalidate your warranty. -
Page 12: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Exploded Diagram
EXPLODED DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Spare Parts List
SPARE PARTS LIST Description No Description Bolt M8 x 30 O-ring 6.1 x 1.8 Air deflector O-ring 6.4 x 2 Deflector rubber O-ring 9 x 1.8 Spring Switch spring Spring wire Switch pipe Bolt M6 x 30 O-ring 2.5 x 1.5 Spring washer O-ring 20.3 x 2.3 Flat washer... - Page 15 Flat washer Pin B4 x 30 Bolt M5 x 20 Spring Air plug Spring core Air plug case CONSUMABLES The following consumables are available from your local Clarke dealer. NAILS - PACK of 200 Length Part No: 50mm 18004144 63mm 18004145...
