Summary of Contents for Clarke CSN1C

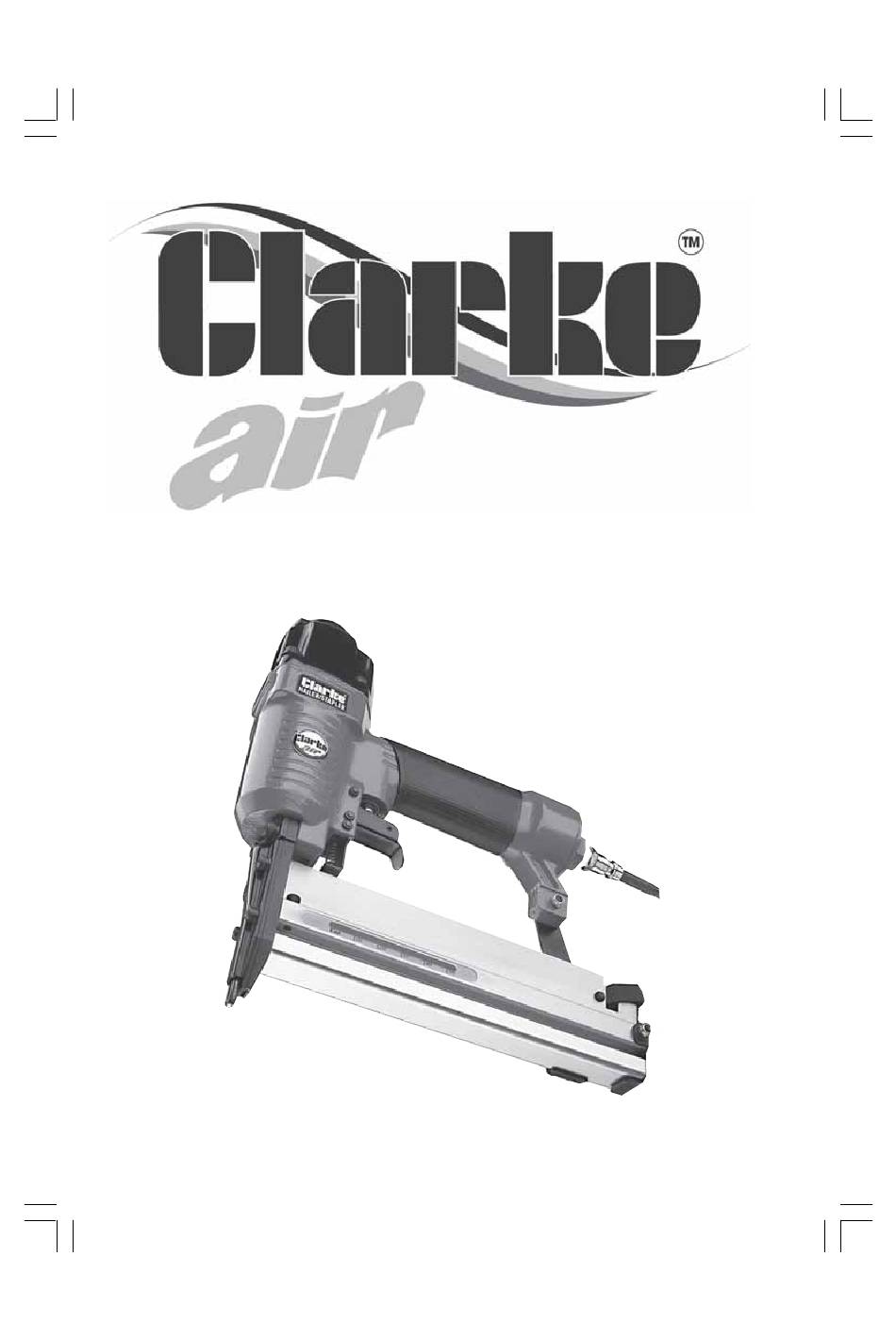

- Page 1 AIR NAIL GUN MODEL: CSN1C Part No. 3110385 OPERATING & MAINTENANCE OPERATING & MAINTENANCE INSTRUCTIONS INSTRUCTIONS 0706...
-
Page 2: Specifications
Part No ................... 3110385 Please note that the details and specifications contained herein, are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machine’s data plate... - Page 3 GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT Failure to follow these precautions could result in personal injury, and/or damage to property. When operating this tool, ALWAYS wear: a. approved impact resistant SAFETY GOGGLES. (Eye glasses are NOT safety glasses) b. EAR DEFENDERS a good pair of INDUSTRIAL GLOVES ALWAYS disconnect the tool from the air supply when not in use, and before carrying out any maintenance ALWAYS keep a safe distance between yourself and others when using the... -
Page 5: Air Supply
AIR SUPPLY WARNING! Compressed air can be dangerous. Ensure that you are thoroughly familiar with all precautions relating to the use of compressors and compressed air supply. Tools of this type, operate on a wide range of air pressures. It is recommended that air pressure be set to between 60 and 100psi. -
Page 6: Maintenance
Drain water from compressor air tank, and air line. Check and clean, if necessary, the air inlet gauze filter. A bottle of CLARKE Air Line Oil** is supplied with the kit. Squirt a few drops of oil (approx. 3cc), into the air inlet. - Page 7 ACCESSORIES A wide range of Airline accessories is available, including Filter/Regulators. Lubricators, High Pressure Hoses from 5 to 100 Metres, Whip hose etc. Contact your CLARKE dealer for further information, or CLARKE International Sales Department on 01992 565333 CONSUMABLES 1.25mm...
-
Page 8: Parts Diagram
PARTS DIAGRAM... - Page 9 PARTS LIST No. Description Part No. No. Description Part No. Hex. Skt Hd Screw HTCSN1C01 Retainer HTCSN1C41 Air Deflector HTCSN1C02 Adjusting Nut HTCSN1C42 Compression Spring HTCSN1C03 Safety Element HTCSN1C43 Cap Screw M5 -.8x20 HTCSN1C04 HTCSN1C44 Lock Washer 5mm HTCSN1C05 Cap Screw M4.7x12 HTCSN1C45 Cylinder Cover HTCSN1C06...
-
Page 10: Declaration Of Conformity
L. E. Fergusson SERVICE MANAGER SPARE PARTS & SERVICING CONTACTS For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com...
